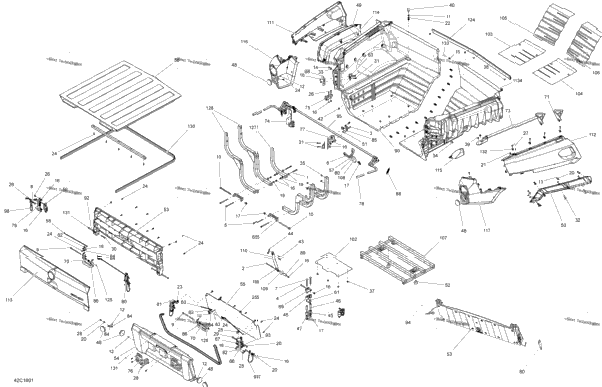

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 207066544 | Hex. Screw M6 X 65 | 4 |
| 1 | 207069044 | Hex. Screw M6 X 90 | 1 |
| 4 | 207661644 | Hex. Flange Screw M6 X 16 | 4 |
| 2 | 207665044 | Hex. Flange Screw M6 X 50 | 2 |
| 4 | 207669584 | Hex. Flange Screw M6 X 95 | 4 |
| 4 | 207684586 | Hex. Flange Screw M8 X 45 | 4 |
| 4 | 207787044 | Carriage Bolt M8 X 70 | 4 |
| 2 | 224061121 | Flat Washer | 2 |
| 1 | 230663084 | Hex. Flange Screw M6 X 130 | 1 |
| 2 | 230683034 | Hex. Flange Screw M8 X 130 | 2 |
| 6 | 232180600 | Hex. Jam Nut M8 | 6 |
| 4 | 232551414 | Elastic Stop Nut M5 | 4 |
| 1 | 232561434 | Elastic Stop Nut M6 | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 234061410 | Flat Washer 6 mm | 1 |
| 1 | 234062410 | Flat Washer 6 mm | 1 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 2 | 234081100 | Flat Washer 8 mm, Nylon | 2 |
| 2 | 234181401 | Lock Washer 8 mm | 2 |
| 2 | 250000048 | Panel Nut M6 X 1.0 | 2 |
| 1 | 250000720 | Torx Screw K50 X 16 | 1 |
| 1 | 250000721 | Torx Truss Screw M6 X 16 | 1 |
| 1 | 250000722 | Torx Screw M6 X 20 | 1 |
| 10 | 250000724 | Torx Screw M5 X 20 | 10 |
| 1 | 250000742 | Torx Screw M5 X 14 Europe Model | 1 |
| 4 | 250000748 | Torx Screw M6 X 45 | 4 |
| 2 | 250000749 | Torx Truss Screw M6 X 50 | 2 |
| 1 | 250000758 | Torx Screw M6 X 25 | 1 |
| 14 | 250000842 | Stainless, Torx Screw M6 X 30 Package XT (Except Europe) - LTD - XTP | 14 |
| 1 | 269500252 | M6 Nut Housing Ass'y | 1 |
| 4 | 269500725 | M6 Nut Housing Ass'y | 4 |
| 20 | 293150100 | Pop Rivet 3/16" | 20 |
| 6 | 293150103 | Pop Rivet 3/16" | 6 |
| 1 | 293150104 | Pop Rivet 3/16" | 1 |
| 6 | 293150190 | Pop Rivet 3/16 Package XT - LTD | 6 |
| 2 | 293720091 | Frame Rubber Bumper | 2 |
| 4 | 293830005 | Rubber Bumper | 4 |
| 1 | 414079100 | Pin | 1 |
| 1 | 414575600 | Hair Pin | 1 |
| 4 | 506150400 | Housing Half | 4 |
| 4 | 506150500 | Housing Bushing | 4 |
| 2 | 506150600 | Stopper Plate | 2 |
| 4 | 705002408 | Red Reflector Except Europe Model | 4 |
| 2 | 705002408 | Red Reflector Europe Model | 2 |
| 1 | 705008671 | LH Upper Rear Mudguards Package XT - LTD - XTP - Hunter | 1 |
| 1 | 705008673 | RH Upper Rear Mudguards Package XT - LTD - XTP - Hunter | 1 |
| 4 | 705500033 | Half Ring | 4 |
| 2 | 708000884 | Rubber Stopper | 2 |
| 1 | 708300053 | Inside Top Pannel | 1 |
| 1 | 715002365 | Outside Bottom Pannel Ass'y | 1 |
| 708300073 | INSIDE BOTTOM PANNEL | ||
| 1 | 708300131 | Separator Pannel Ass'y | 1 |
| 2 | 708300136 | Box Retainer | 2 |
| 2 | 708300160 | Top Rod | 2 |
| 1 | 708300162 | LH Latch | 1 |
| 2 | 708300164 | Lower Bottom Rod | 2 |
| 2 | 708300172 | Pivot Bushing | 2 |
| 2 | 708300182 | LH Tie Rod Clip | 2 |
| 4 | 708300183 | Retaining Plate | 4 |
| 2 | 708300184 | Activator | 2 |
| 2 | 708300185 | Bracket Pivot | 2 |
| 1 | 708300201 | RH Latch | 1 |
| 2 | 708300202 | RH Tie Rod Clip | 2 |
| 2 | 708300206 | Retaining Plate Support | 2 |
| 2 | 708300210 | Adjustable Stopper Plate | 2 |
| 1 | 708300219 | Spring | 1 |
| 1 | 708300333 | LH Painted Rail Cap Package STD - DPS - XTP | 1 |
| 1 | 708300334 | RH Painted Rail Cap Package STD - DPS - XTP | 1 |
| 1 | 708300231 | LH Welded Rail Package XT - LTD - Hunter | 1 |
| 1 | 708300232 | RH Welded Rail Package XT - LTD - Hunter | 1 |
| 1 | 708300278 | LH Latch Lever Support | 1 |
| 2 | 708300345 | Upper Pivot Support | 2 |
| 2 | 708300349 | Plate Support Europe Model | 2 |
| 1 | 708300351 | RH Latch Lever Support | 1 |
| 2 | 708300358 | Cap Latch Lever | 2 |
| 1 | 708300359 | LH Upper Support | 1 |
| 1 | 708300360 | RH Upper Support | 1 |
| 1 | 708300361 | LH Lower Support | 1 |
| 1 | 708300362 | RH Lower Support | 1 |
| 2 | 708300365 | Bushing | 2 |
| 2 | 708300367 | REFLECTOR SUPPORT Europe Model | 2 |
| 2 | 708300392 | Clamp Reatiner | 2 |
| 1 | 708300398 | Handle | 1 |
| 2 | 708300454 | Spring | 2 |
| 1 | 708300470 | Spacer | 1 |
| 1 | 715002361 | Left Box Kit | 1 |
| 1 | 715003385 | RH Box Kit Commander | 1 |
| 1 | 715003387 | Right Box Kit Com-Max | 1 |
| 2 | 708300735 | Bushing | 2 |
| 4 | 708300736 | Spacer | 4 |
| 8 | 708300737 | Bushing | 8 |
| 1 | 708300751 | Cargo Handle Ass'y | 1 |
| 2 | 708300762 | Lower Retainer Cable | 2 |
| 2 | 708300763 | Upper Retainer Cable | 2 |
| 1 | 708300780 | Heat Deflector | 1 |
| 1 | 708300809 | Heat Deflector Sheet | 1 |
| 1 | 708300810 | Heat Deflector Sheet | 1 |
| 1 | 708300811 | Heat Deflector Sheet | 1 |
| 1 | 708300812 | Heat Deflector Sheet | 1 |
| 1 | 708300875 | Black Box Support | 1 |
| 2 | 708300902 | Spacer | 2 |
| 1 | 708301059 | Spacer | 1 |
| 1 | 708301136 | Gaz Shock | 1 |
| 1 | 708300840 | FENDER REAR L B-341 White Model | 1 |
| 1 | 708300928 | BLACK LH REAR FENDER XTP Model | 1 |
| 1 | 708301900 | Black LH Rear Fender. Black Model | 1 |
| 1 | 708301242 | Yellow LH Rear Fender Yellow Model | 1 |
| 1 | 708301250 | VIPER RED LH REAR FENDER Viper Red Model | 1 |
| 1 | 708301308 | Quarry Gray LH Rear Fender Quarry Gray Model | 1 |
| 1 | 708301312 | Brush Aluminum LH Rear Fender Brush Aluminium Model | 1 |
| 1 | 708301315 | Deep Pewter LH Rear Fender Deep Pewter Model | 1 |
| 1 | 708301687 | Camo, LH Rear Fender Camo Model | 1 |
| 1 | 708301689 | FENDER REAR L B-367 Cognac Model | 1 |
| 1 | 708301243 | YELLOW RH REAR FENDER Yellow Model | 1 |
| 1 | 708301251 | VIPER RED RH REAR FENDER Viper Red Model | 1 |
| 1 | 708301309 | QUARRY GRAY RH REAR FENDER Quarry Gray Model | 1 |
| 1 | 708301313 | Brush Aluminum RH Rear Fender Brush Aluminium Model | 1 |
| 1 | 708301316 | Deep Pewter RH Rear Fender Deep Pewter Model | 1 |
| 1 | 708301688 | Camo, RH Rear Fender Camo Model | 1 |
| 1 | 708301690 | Cognac RH Rear Fender. Cognac Model | 1 |
| 1 | 708300841 | White RH Rear Fender White Model | 1 |
| 1 | 708301901 | Black RH Rear Fender. Black Model | 1 |
| 1 | 708300929 | Black RH Rear Fender Package XTP | 1 |
| 1 | 708301256 | Yellow Outside Top Pannel Yellow Model | 1 |
| 1 | 708301257 | VIPER RED OUTSIDE TOP PANNEL Viper Red Model | 1 |
| 1 | 708301310 | QUARRY GRAY OUTSIDE TOP PANNEL Quarry Gray Model | 1 |
| 1 | 708301311 | ORANGE CRUSH OUTSIDE TOP PANNEL Package XTP | 1 |
| 708301317 | DEEP PEWTER OUTSIDE TOP PANNEL Deep Pewter Model | ||
| 1 | 708301583 | Brush Aluminum Outside Top Pannel Brush Aluminium Model | 1 |
| 1 | 708301583 | Brush Aluminum Outside Top Pannel Black Model | 1 |
| 1 | 708301693 | Camo, Outside Top Panel Camo Model | 1 |
| 1 | 708301694 | COGNAC OUTSIDE TOP PANNEL Cognac Model | 1 |
| 1 | 708300672 | White Outside Top Pannel White Model | 1 |
| 1 | 708301380 | LH Rail Cover Package XT - LTD - Hunter | 1 |
| 1 | 708301381 | RH Rail Cover Package XT - LTD - Hunter | 1 |
| 1 | 708301383 | LH Rear Facia | 1 |
| 1 | 708301384 | RH Rear Facia | 1 |
| 1 | 708301633 | Front Support | 1 |
| 1 | 732610072 | Push Nut | 1 |
| 2 | 708300877 | Black Lateral Support | 2 |
| 4 | 708300879 | Black Welded Lateral Support | 4 |
| 1 | 232361493 | Domed Nut M6 | 1 |
| 1 | 250000079 | Panel Nut M5 X 0.8 | 1 |
| 13 | 207662054 | Hex. Flange Screw M6 X 20 | 13 |
| 1 | 219704451 | Was 293250240 Neoprene Seal | 1 |
