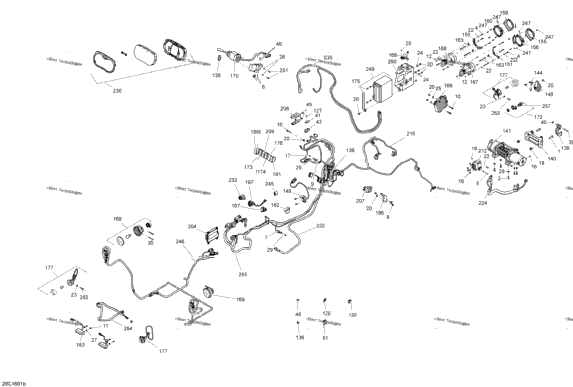

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 205003044 | Socket Screw M10 x 30 | 2 |
| 4 | 205082044 | Socket Head Screw M8 X 20 | 4 |
| 12 | 207142544 | Hex. Screw M4 X 25 | 12 |
| 2 | 207151644 | Hex. Screw M5 X 16 | 2 |
| 2 | 207361644 | Hex. Screw M6 X 16, Scotch Grip Europe Model | 2 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 2 | 207661644 | Hex. Flange Screw M6 X 16 Europe Model | 2 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 1 |
| 1 | 232061600 | Hex. Nut M6 | 1 |
| 12 | 232541414 | Elastic Stop Nut M4 | 12 |
| 1 | 232561434 | Elastic Stop Nut M6 | 1 |
| 6 | 232561434 | Elastic Stop Nut M6 | 6 |
| 1 | 233061414 | Hex. Flange Nut M6 | 1 |
| 2 | 233201414 | Hex. Flange Elastic Nut M10 | 2 |
| 2 | 233251494 | Elastic Flange Nut M5 | 2 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 234051410 | Flat Washer M5 | 1 |
| 4 | 234061410 | Flat Washer 6 mm Europe Model | 4 |
| 3 | 234062410 | Flat Washer 6 mm Except MAX Model | 3 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 2 | 234151401 | Lock Washer 5 mm Europe Model | 2 |
| 1 | 234161601 | Lock Washer Helical M6 | 1 |
| 4 | 234181401 | Lock Washer 8 mm | 4 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 4 | 241154540 | Hex. Screw K50 X 45 | 4 |
| 1 | 250000048 | Panel Nut M6 X 1.0 MAX Model | 1 |
| 1 | 250000717 | Torx Head Screw M6 X 16 | 1 |
| 1 | 250400021 | Clevis Pin | 1 |
| 1 | 250400022 | Cotter Pin | 1 |
| 1 | 270000141 | Clip | 1 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 1 | 278002704 | Diagnostic Connector | 1 |
| 1 | 278003012 | Starter Relay MAX Model | 1 |
| 2 | 293150103 | Pop Rivet 3/16" | 2 |
| 293450274 | Insert Europe Model | ||
| 1 | 293730018 | Mount Dart MAX Model | 1 |
| 1 | 293730040 | Mount Dart | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 293750009 | Tie-Rap 173 mm | 1 |
| 1 | 390402400 | Pop Rivet 3/16" | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 414227300 | Clip | 1 |
| 1 | 704902614 | Flasher Decal Europe Model | 1 |
| 1 | 705002329 | Hook | 1 |
| 715001119 | WINCH CABLE GUIDE | ||
| 1 | 705008547 | Winch | 1 |
| 1 | 709200284 | SUPPORT Europe Model | 1 |
| 1 | 709400810 | Flasher Arm Support Europe Model | 1 |
| 1 | 710000983 | Horn Europe Model | 1 |
| 1 | 710000992 | Clip | 1 |
| 1 | 710001023 | Winch Connector | 1 |
| 1 | 710001036 | LH High Light Support | 1 |
| 1 | 710001037 | LH Low Light Support | 1 |
| 1 | 710001059 | Connector Ass'y | 1 |
| 1 | 710001081 | RH Low Front Housing | 1 |
| 1 | 710001082 | RH Low Rear Housing | 1 |
| 1 | 710001083 | LH Low Front Housing | 1 |
| 1 | 710001084 | LH Low Rear Housing | 1 |
| 1 | 710001085 | RH High Front Housing | 1 |
| 1 | 710001086 | RH High Rear Housing | 1 |
| 1 | 710001087 | LH High Front Housing | 1 |
| 1 | 710001088 | LH High Rear Housing | 1 |
| 1 | 710001094 | RH Low Light Support | 1 |
| 1 | 710001115 | RH High Light Support | 1 |
| 8 | 710001147 | Setting Screw | 8 |
| 1 | 710001191 | Voltage Regulator | 1 |
| 1 | 710001248 | DC Outlet | 1 |
| 1 | 710001364 | Starter Relay Except MAX Model | 1 |
| 2 | 710001645 | Tail Light Ass'y | 2 |
| 1 | 520000758 | Bulb | 1 |
| 1 | 710001721 | Turn Signal Europe Model | 1 |
| 1 | 710001725 | Hi/Low Switch Except Europe Model | 1 |
| 2 | 710001726 | Day Light Europe Model | 2 |
| 1 | 710001737 | 4X4 Switch | 1 |
| 1 | 710001781 | Switch DPS | 1 |
| 1 | 710001916 | Battery Holder | 1 |
| 1 | 710001999 | Plug Carling | 1 |
| 4 | 710002964 | Flasher Europe Model | 4 |
| 1 | 710002052 | Switch Winch | 1 |
| 1 | 710002053 | Switch, Over ride | 1 |
| 2 | 710002055 | License Light Europe Model | 2 |
| 1 | 219800128 | Bulb Europe Model | 1 |
| 1 | 710002076 | Switch Hazard Europe Model | 1 |
| 1 | 710002408 | SUPPORT Europe Model | 1 |
| 2 | 710002524 | Low Beam Ass'y | 2 |
| 1 | 415129249 | Halogen Bulb | 1 |
| 2 | 710002525 | High Beam Ass'y | 2 |
| 1 | 710002594 | Engine Start Button | 1 |
| 1 | 710003239 | Flasher Unit Europe Model | 1 |
| 1 | 710003335 | Fuse Holder | 1 |
| 1 | 710003541 | Switch PPS Sport | 1 |
| 1 | 710003582 | Cap MAX Model | 1 |
| 2 | 710003602 | Battery Rubber Pad MAX Model | 2 |
| 1 | 710004142 | Winch Solenoid | 1 |
| 710004579 | Harness Ass'y Except MAX Model | ||
| 710004580 | Harness Ass'y MAX Model | ||
| 1 | 710004336 | WIRING HARNESS ASSY Europe Model | 1 |
| 1 | 710004383 | Positive Cable Except MAX Model | 1 |
| 1 | 710004918 | Winch Cable (-/+) MAX Model Package XT | 1 |
| 1 | 710004387 | Electrical Winch Cable | 1 |
| 1 | 710004390 | Positive Cable MAX Model | 1 |
| 1 | 710004546 | Speedometer Package XT, Hunter | 1 |
| 1 | 710004546 | Speedometer Package XTP | 1 |
| 1 | 710003847 | Ignition Switch Except Europe Model | 1 |
| 1 | 710004570 | Ignition Switch Europe Model | 1 |
| 1 | 710004576 | Winch Cable (-/+) Package XT, Hunter Except MAX Model | 1 |
| 1 | 710004576 | Winch Cable (-/+) Package XTP | 1 |
| 1 | 710004681 | Rear Harness Except Europe Model | 1 |
| 1 | 710004682 | WIRING HARNESS REAR Europe Model | 1 |
| 22 | 250000723 | Phillips Screw K40 X 16 | 22 |
| 2 | 250000720 | Torx Screw K50 X 16 | 2 |
| 1 | 410301203 | Battery Ass'y, 18 Amperes | 1 |
| 1 | 710003129 | Battery Support Except MAX Model | 1 |
| 2 | 210251650 | Hex. Forming Screw M5 X 16 Europe Model | 2 |
| 4 | 250000758 | Torx Screw M6 X 25 Europe Model | 4 |
| 1 | 710004683 | Rear Harness Europe Model | 1 |
| 1 | 710003269 | Cap Protector Europe Model | 1 |
