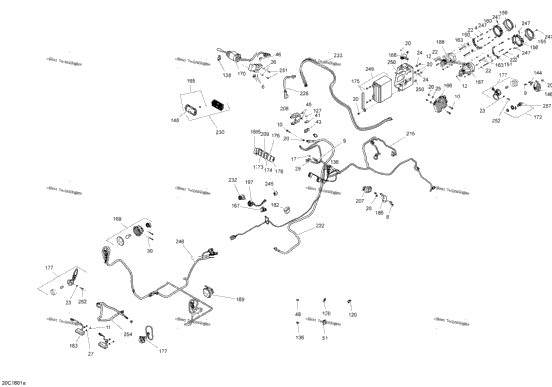

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 12 | 207142544 | Hex. Screw M4 X 25 | 12 |
| 2 | 207361644 | Hex. Screw M6 X 16, Scotch Grip Europe Model | 2 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 2 | 207661644 | Hex. Flange Screw M6 X 16 Europe Model | 2 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 1 |
| 1 | 232061600 | Hex. Nut M6 | 1 |
| 12 | 232541414 | Elastic Stop Nut M4 | 12 |
| 1 | 232561434 | Elastic Stop Nut M6 | 1 |
| 1 | 233061414 | Hex. Flange Nut M6 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 24 | 234051410 | Flat Washer M5 | 24 |
| 4 | 234061410 | Flat Washer 6 mm Europe Model | 4 |
| 3 | 234062410 | Flat Washer 6 mm Except MAX Model | 3 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 2 | 234151401 | Lock Washer 5 mm Europe Model | 2 |
| 1 | 234161601 | Lock Washer Helical M6 | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 4 | 241154540 | Hex. Screw K50 X 45 | 4 |
| 1 | 250000048 | Panel Nut M6 X 1.0 MAX Model | 1 |
| 1 | 250000717 | Torx Head Screw M6 X 16 | 1 |
| 1 | 270000141 | Clip | 1 |
| 1 | 278002704 | Diagnostic Connector | 1 |
| 1 | 278003012 | Starter Relay MAX Model | 1 |
| 2 | 293150103 | Pop Rivet 3/16" | 2 |
| 293450274 | Insert Europe Model | ||
| 1 | 293730018 | Mount Dart MAX Model | 1 |
| 1 | 293730040 | Mount Dart | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 293750009 | Tie-Rap 173 mm | 1 |
| 1 | 390402400 | Pop Rivet 3/16" | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 414227300 | Clip | 1 |
| 1 | 704902614 | Flasher Decal Europe Model | 1 |
| 1 | 709200284 | SUPPORT Europe Model | 1 |
| 1 | 709400810 | Flasher Arm Support Europe Model | 1 |
| 1 | 710000983 | Horn Europe Model | 1 |
| 1 | 710001183 | Trim Ring Ass'y Package STD-DPS | 1 |
| 1 | 710001036 | LH High Light Support | 1 |
| 1 | 710001037 | LH Low Light Support | 1 |
| 1 | 710001081 | RH Low Front Housing | 1 |
| 1 | 710001082 | RH Low Rear Housing | 1 |
| 1 | 710001083 | LH Low Front Housing | 1 |
| 1 | 710001084 | LH Low Rear Housing | 1 |
| 1 | 710001085 | RH High Front Housing | 1 |
| 1 | 710001086 | RH High Rear Housing | 1 |
| 1 | 710001087 | LH High Front Housing | 1 |
| 1 | 710001088 | LH High Rear Housing | 1 |
| 1 | 710001094 | RH Low Light Support | 1 |
| 1 | 710001115 | RH High Light Support | 1 |
| 8 | 710001147 | Setting Screw | 8 |
| 1 | 710001191 | Voltage Regulator | 1 |
| 1 | 710001248 | DC Outlet | 1 |
| 1 | 710001364 | Starter Relay Except MAX Model | 1 |
| 2 | 710001645 | Tail Light Ass'y | 2 |
| 1 | 520000758 | Bulb | 1 |
| 1 | 710001721 | Turn Signal Europe Model | 1 |
| 1 | 710001725 | Hi/Low Switch Except Europe Model | 1 |
| 2 | 710001726 | Day Light Europe Model | 2 |
| 1 | 710001737 | 4X4 Switch | 1 |
| 1 | 710001781 | Switch DPS Package DPS | 1 |
| 1 | 710001916 | Battery Holder | 1 |
| 2 | 710001999 | Plug Carling Package STD-DPS | 2 |
| 4 | 710002964 | Flasher Europe Model | 4 |
| 1 | 710002053 | Switch, Over ride | 1 |
| 2 | 710002055 | License Light Europe Model | 2 |
| 1 | 219800128 | Bulb Europe Model | 1 |
| 1 | 710002076 | Switch Hazard Europe Model | 1 |
| 1 | 710002408 | SUPPORT Europe Model | 1 |
| 2 | 710002524 | Low Beam Ass'y | 2 |
| 1 | 415129249 | Halogen Bulb | 1 |
| 2 | 710002525 | High Beam Ass'y | 2 |
| 1 | 710002594 | Engine Start Button | 1 |
| 1 | 710003239 | Flasher Unit Europe Model | 1 |
| 1 | 710003335 | Fuse Holder | 1 |
| 1 | 710003541 | Switch PPS Sport | 1 |
| 1 | 710003582 | Cap MAX Model | 1 |
| 2 | 710003602 | Battery Rubber Pad MAX Model | 2 |
| 1 | 710004336 | WIRING HARNESS ASSY Europe Model | 1 |
| 1 | 710004383 | Positive Cable Except MAX Model | 1 |
| 1 | 710004390 | Positive Cable MAX Model | 1 |
| 1 | 710004384 | Positive Cable Package STD | 1 |
| 1 | 710004384 | Positive Cable Package DPS Except MAX Model | 1 |
| 1 | 710004393 | Positive Cable Package DPS MAX Model | 1 |
| 1 | 710005024 | Multifunction Speedometer Package STD-DPS | 1 |
| 1 | 710003847 | Ignition Switch Except Europe Model | 1 |
| 1 | 710004570 | Ignition Switch Europe Model | 1 |
| 1 | 710004575 | Winch Cable (-/+) Package DPS Except MAX Model | 1 |
| 1 | 710004919 | Winch Cable (-/+) Package DPS MAX Model | 1 |
| 710004579 | Harness Ass'y Except MAX Model | ||
| 710004580 | Harness Ass'y MAX Model | ||
| 1 | 710004681 | Rear Harness Except Europe Model | 1 |
| 1 | 710004682 | WIRING HARNESS REAR Europe Model | 1 |
| 22 | 250000723 | Phillips Screw K40 X 16 | 22 |
| 1 | 410301203 | Battery Ass'y, 18 Amperes | 1 |
| 1 | 710003129 | Battery Support Except MAX Model | 1 |
| 2 | 210251650 | Hex. Forming Screw M5 X 16 Europe Model | 2 |
| 4 | 250000758 | Torx Screw M6 X 25 Europe Model | 4 |
| 1 | 704904615 | BRP Logo13 mm Package STD-DPS | 1 |
| 1 | 710004683 | Rear Harness Europe Model | 1 |
| 1 | 710003269 | Cap Protector Europe Model | 1 |
