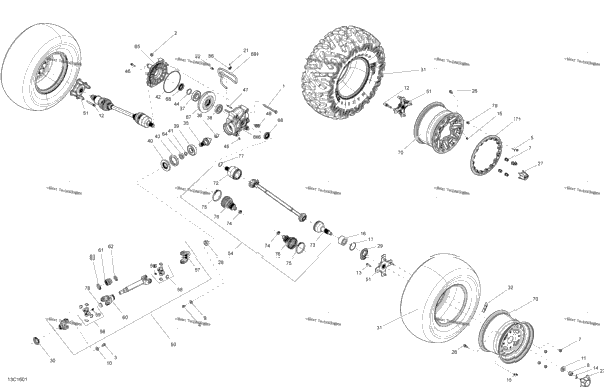

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 230602546 | Hex. Flange Screw M10 X 125 | 4 |
| 4 | 233201436 | Hex. Flange Elastic Nut M10 | 4 |
| 1 | 250000359 | Hex Flange Screw M12 x 16 | 1 |
| 1 | 250000615 | Screw-Hex.Flange M10 X 16 | 1 |
| 16 | 250000787 | Hex. Flange Screw M6 X 25 Package XTP | 16 |
| 8 | 250100042 | Steel Wheel Nut Package STD | 8 |
| 8 | 250100082 | Chrome Wheel Nut M10 X 1.25 Package DPS | 8 |
| 8 | 250100082 | Chrome Wheel Nut M10 X 1.25 Package LTD | 8 |
| 8 | 250100082 | Chrome Wheel Nut M10 X 1.25 Package XT Yellow | 8 |
| 8 | 250100082 | Chrome Wheel Nut M10 X 1.25 Package XT White | 8 |
| 8 | 250100100 | Black Wheel Nut M10 X 1.25 Package XT Black Model | 8 |
| 8 | 250100100 | Black Wheel Nut M10 X 1.25 Package XT Camo Model | 8 |
| 8 | 250100100 | Black Wheel Nut M10 X 1.25 Package XT Brush Aluminium Model | 8 |
| 8 | 250100100 | Black Wheel Nut M10 X 1.25 Package XTP | 8 |
| 8 | 250100100 | Black Wheel Nut M10 X 1.25 Package Hunter | 8 |
| 2 | 250100161 | Castle Nut M20 | 2 |
| 1 | 250200014 | Flat Washer M10 | 1 |
| 1 | 250200102 | Flat Washer M12 | 1 |
| 2 | 250200148 | Spring Washer | 2 |
| 8 | 250300051 | Wheel Stud MAX Model | 8 |
| 8 | 250300051 | Wheel Stud Package XTP | 8 |
| 4 | 250300055 | Wheel Stud M10 X 1.25 LH Hub Except MAX Model - Except Package XTP | 4 |
| 4 | 705400791 | Wheel Stud RH Hub Except MAX Model - Except Package XTP | 4 |
| 2 | 250400071 | Cotter Pin | 2 |
| 2 | 293000110 | Valve Cap | 2 |
| 2 | 293350040 | Cone Bearing | 2 |
| 2 | 293370019 | Circlip | 2 |
| 1 | 390402200 | Pop Rivet 3/16" | 1 |
| 1 | 414227300 | Clip | 1 |
| 1 | 705400193 | Rim Valve With Cap | 1 |
| 2 | 705400921 | Wheel Cap Package STD | 2 |
| 2 | 705401541 | Wheel Cap Package DPS | 2 |
| 2 | 705401541 | Wheel Cap Package XT | 2 |
| 2 | 705401541 | Wheel Cap Package Hunter | 2 |
| 2 | 705400928 | Wheel Cap Package XTP | 2 |
| 2 | 705401541 | Wheel Cap Package LTD | 2 |
| 1 | 705400036 | Wear Ring | 1 |
| 1 | 705501121 | Wear Sleeve Except MAX Model - Except Package XTP | 1 |
| 1 | 705501123 | Protector | 1 |
| 1 | 705501129 | Rear Tire Package STD | 1 |
| 1 | 705502019 | Rear Tire Package DPS (Except Europe) | 1 |
| 1 | 705502019 | Rear Tire Package XT (Except Europe) | 1 |
| 1 | 705501817 | Rear Tire Maxxis 27X11X12 Package XTP | 1 |
| 1 | 705502019 | Rear Tire Package Hunter | 1 |
| 1 | 705502019 | Rear Tire Package LTD | 1 |
| 1 | 705501295 | Rear Tire Europe | 1 |
| 1 | 219704465 | 1/2 OZ Weight | 1 |
| 1 | 705501871 | 10 Tooth Gear | 1 |
| 1 | 705501874 | Needle Bearing | 1 |
| 1 | 705501875 | Ball Bearing | 1 |
| 1 | 705501876 | Ball Bearing | 1 |
| 1 | 705501877 | Ball Bearing | 1 |
| 1 | 705501878 | Oil Seal | 1 |
| 1 | 705501880 | Oil Seal | 1 |
| 1 | 705501881 | Oil Seal iDIA 6.737 oDIA 6.943 | 1 |
| 2 | 705501882 | Nut | 2 |
| 1 | 705501883 | Shim Kit | 1 |
| 1 | 705501885 | Drain Plug | 1 |
| 4 | 705501886 | Bolt | 4 |
| 1 | 705501887 | Vent Valve | 1 |
| 1 | 705501889 | Fill Level Plug | 1 |
| 1 | 703500854 | Axle Kit Include 28 | 1 |
| 1 | 705502268 | WHEEL HUB LH Except MAX Model - Except Package XTP | 1 |
| 1 | 705502267 | Wheel Hub RH Except MAX Model - Except Package XTP | 1 |
| 2 | 705502223 | Wheel Hub ( 29 Splines ) Com-MAX Model | 2 |
| 2 | 705502223 | Wheel Hub ( 29 Splines ) Package XTP | 2 |
| 2 | 705502355 | Half Shaft | 2 |
| 1 | 705600459 | Clamp | 1 |
| 2 | 715900271 | Joint | 2 |
| 2 | 715500371 | Universal Joint | 2 |
| 1 | 715900184 | Grease Fitting | 1 |
| 1 | 715900106 | Spline Yoke | 1 |
| 1 | 715900118 | Rubber Boot | 1 |
| 1 | 509000045 | Oetiker Gear Clamp 36.1MM | 1 |
| 1 | 293650138 | Oetiker Gear Clamp 44.0MM | 1 |
| 1 | 705502331 | Rear Differential Ass'Y | 1 |
| 1 | 705502332 | Rear Cover | 1 |
| 1 | 705502333 | Pinion Cover | 1 |
| 1 | 705502109 | 36 Tooth Gear | 1 |
| 2 | 705502110 | Oil Seal | 2 |
| 1 | 219704388 | Was 293830177 Hose | 1 |
| 1 | 705502101 | Silver Rear Rim Package DPS | 1 |
| 1 | 705502101 | Silver Rear Rim Package XT Yellow | 1 |
| 1 | 705502101 | Silver Rear Rim Package XT White | 1 |
| 1 | 705501623 | Black, Rear Rim Package STD | 1 |
| 1 | 705502102 | RIM_14 INCH B-160 X 8,5 Package LTD | 1 |
| 1 | 705502103 | Black Rear Rim Package XT Camo Model | 1 |
| 1 | 705502103 | Black Rear Rim Package XT Black Model | 1 |
| 1 | 705502103 | Black Rear Rim Package XT Brush Aluminium Model | 1 |
| 1 | 705502103 | Black Rear Rim Package Hunter | 1 |
| 1 | 705502244 | Black, Rim Package XTP | 1 |
| 1 | 705401815 | Disc Plate Package XTP | 1 |
| 705501780 | PLUNGING JOINT | ||
| 1 | 715900391 | CV Joint | 1 |
| 1 | 715900242 | Oetiker Clamp, 27.3 mm | 1 |
| 1 | 715900241 | Oetiker Clamp, 82.1 mm | 1 |
| 2 | 705501864 | Boot Kit | 2 |
| 1 | 705501781 | Circlip | 1 |
| 1 | 715900187 | COVER | 1 |
| 16 | 293450317 | Insert Package XTP | 16 |
