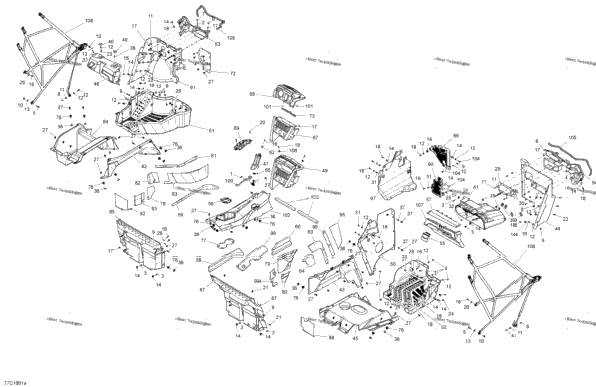

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 205951046 | Socket Head Screw M5 X 10 Europe Model | 2 |
| 2 | 207162544 | Hex. Screw M6 X 25 | 2 |
| 6 | 207662034 | Hex. Flange Screw M6 X 20 | 6 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
| 2 | 207682534 | Hex. Flange Screw M8 X 25 Except Package XTP | 2 |
| 2 | 224060201 | Flat Washer | 2 |
| 2 | 224061201 | Flat Washer | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 21 | 233261494 | Hex. Elastic Flange Nut M6 | 21 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 Except Package XTP | 2 |
| 17 | 234062410 | Flat Washer 6 mm | 17 |
| 31 | 234062670 | Stainless Steel Flat Washer | 31 |
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 20 | 250000048 | Panel Nut M6 X 1.0 | 20 |
| 13 | 250000712 | Torx Screw M6 X 20 | 13 |
| 1 | 250000720 | Torx Screw K50 X 16 | 1 |
| 19 | 250000722 | Torx Screw M6 X 20 | 19 |
| 2 | 250000724 | Torx Screw M5 X 20 | 2 |
| 2 | 250000728 | Torx Screw M6 X 25 | 2 |
| 1 | 250000755 | Torx Screw M6 X 16 | 1 |
| 7 | 250000758 | Torx Screw M6 X 25 | 7 |
| 2 | 250000760 | Torx Screw Truss Head K50X20 T20 | 2 |
| 4 | 250000807 | Torx Truss Screw M6 X 25 | 4 |
| 1 | 250200025 | Washer M5 | 1 |
| 2 | 250200040 | Flat Washer | 2 |
| 1 | 293150089 | Tuflok Plastic Rivet Except Package LTD | 1 |
| 2 | 293250242 | Rubber Cover | 2 |
| 1 | 293250252 | Upper Seal | 1 |
| 10 | 293250253 | Bottom Seal | 10 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 1 | 390401400 | Rivet Europe Model | 1 |
| 1 | 391301000 | WASHER Europe Model | 1 |
| 3 | 414859400 | CAP | 3 |
| 1 | 503189273 | Washer Except Package LTD | 1 |
| 2 | 506151252 | Washer | 2 |
| 1 | 517302785 | Edge Clip | 1 |
| 4 | 705003668 | Oblong Grommet | 4 |
| 2 | 705003841 | Support Plate | 2 |
| 1 | 707000666 | Padlock with Key Europe Model | 1 |
| 1 | 707900001 | LH Side Console | 1 |
| 1 | 707900002 | RH Side Console | 1 |
| 1 | 707900004 | RH Front Floor | 1 |
| 1 | 707900006 | RH Under Seat Plate | 1 |
| 1 | 707900011 | Passenger Handle | 1 |
| 1 | 715001250 | Dashboard Ass'y | 1 |
| XXXX | Not Available As Spare Part - Not available | ||
| 1 | 715002178 | Central Dashboard Ass'y Except Package LTD | 1 |
| 1 | 715002187 | Central Dashboard Ass'y Package LTD | 1 |
| 1 | 707900021 | RH Fixe Side Console Except Package LTD | 1 |
| 1 | 707900098 | RH Fixe Side Console Package LTD | 1 |
| 1 | 707900022 | LH Lower Floor | 1 |
| 1 | 707900023 | RH Lower Floor | 1 |
| 1 | 707900029 | SUPPORT_PANEL LH | 1 |
| 1 | 707900030 | SUPPORT_PANEL RH | 1 |
| 1 | 707900031 | Latch | 1 |
| 2 | 707900036 | Cup Retainer | 2 |
| 1 | 707900038 | Trim Glove Box | 1 |
| 1 | 707900043 | LH Upper Lateral Console Foam | 1 |
| 1 | 707900044 | LH Lower Lateral Console Foam | 1 |
| 1 | 707900045 | RH Lateral Console Foam | 1 |
| 1 | 707900009 | Storage Bin Package STD - DPS | 1 |
| 1 | 707900046 | Storage Bin Package LTD - XT - XTP | 1 |
| 1 | 707900048 | Connector Tube | 1 |
| 1 | 707900055 | RH Lateral Console Foam | 1 |
| 1 | 707900056 | RH Lateral Console Foam | 1 |
| 1 | 707900060 | CAP Europe Model | 1 |
| 1 | 707900062 | Trim Glove Box | 1 |
| 1 | 707900065 | DASHBOARD CTRL. Package LTD | 1 |
| 1 | 707900066 | Gauge Support Package LTD | 1 |
| 1 | 707900070 | Lever Indicator | 1 |
| 1 | 707900071 | Lever Indicator Europe Model | 1 |
| 1 | 707900108 | Deflector Package STD | 1 |
| 1 | 707900125 | DEFLECTOR Except Package STD | 1 |
| 1 | 219704353 | Was 271000110 Protection Trim Package LTD | 1 |
| 23 | 707900133 | Insert Except Package LTD | 23 |
| 1 | 707900145 | Heat Sheet | 1 |
| 1 | 707900146 | Heat Sheet | 1 |
| 1 | 707900147 | Heat Sheet | 1 |
| 1 | 707900148 | Heat Sheet | 1 |
| 1 | 707900149 | Heat Sheet | 1 |
| 1 | 707900150 | Heat Sheet | 1 |
| 1 | 707900151 | Heat Sheet | 1 |
| 1 | 715002356 | LH Under Seat Plate Kit | 1 |
| 1 | 707900164 | LH Rear Deflector Except Package LTD | 1 |
| 1 | 707900165 | DEFLECTOR_BODY PANEL REAR L Package LTD | 1 |
| 1 | 707900166 | DEFLECTOR_BODY PANEL REAR R | 1 |
| 1 | 707900167 | Heat Shield | 1 |
| 1 | 707900178 | Grille | 1 |
| 1 | 707900180 | Grille | 1 |
| 1 | 707900181 | LH Front Floor | 1 |
| 1 | 707900182 | Heat Shield | 1 |
| 1 | 707900183 | Heat Shield | 1 |
| 1 | 707900184 | Heat Shield | 1 |
| 1 | 707900190 | Heat Sheet | 1 |
| 1 | 707900191 | Heat Sheet | 1 |
| 1 | 707900193 | Front Side Dash Panel | 1 |
| 1 | 707900214 | Front Central Console Foam | 1 |
| 1 | 707900303 | LOCK SUPPORT Europe Model | 1 |
| 3 | 732610072 | Push Nut Package LTD | 3 |
| 715003326 | CONSOLE KIT Except Europe Model | ||
| 715003328 | CONSOLE KIT Europe Model | ||
| 1 | 293250318 | SEAL TRAY | 1 |
| 3 | 250000843 | Torx Truss Screw M6 X 30 | 3 |
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 2 | 250000079 | Panel Nut M5 X 0.8 | 2 |
| 2 | 707900221 | Luggage Cover Kit | 2 |
| 1 | 707900237 | Front LH Safety Net Include Buckle 715900398 | 1 |
| 1 | 707900238 | Front RH Safety Net Include Buckle 715900398 | 1 |
| 2 | 715900398 | Buckle | 2 |
