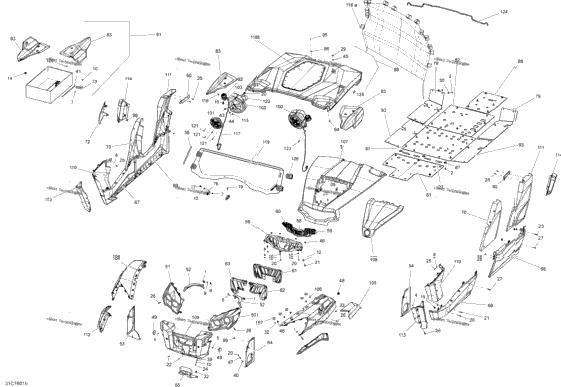

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 207661644 | Hex. Flange Screw M6 X 16 | 4 |
| 39 | 210262050 | Hexagonal Head Screw | 39 |
| 2 | 232081414 | Hex. Nut M8 Package DPS | 2 |
| 4 | 232561434 | Elastic Stop Nut M6 | 4 |
| 27 | 232561434 | Elastic Stop Nut M6 Package XT - LTD | 27 |
| 2 | 233251434 | Flange Elastic Nut M5 | 2 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 36 | 233261494 | Hex. Elastic Flange Nut M6 | 36 |
| 4 | 234051410 | Flat Washer M5 | 4 |
| 4 | 234061600 | Stainless Flat Washer M6 | 4 |
| 41 | 234062670 | Stainless Steel Flat Washer | 41 |
| 27 | 234062670 | Stainless Steel Flat Washer Package XT - LTD | 27 |
| 2 | 234081410 | Flat Washer 8 mm Package DPS | 2 |
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 2 | 235567084 | Torx Screw Button Head M6 X 70 | 2 |
| 31 | 250000048 | Panel Nut M6 X 1.0 | 31 |
| 2 | 250000079 | Panel Nut M5 X 0.8 | 2 |
| 2 | 250000284 | Torx Screw M6 x 25 | 2 |
| 2 | 250000415 | TORX SCREW NYLON | 2 |
| 7 | 250000712 | Torx Screw M6 X 20 Package XT - LTD | 7 |
| 17 | 250000720 | Torx Screw K50 X 16 | 17 |
| 8 | 250000722 | Torx Screw M6 X 20 | 8 |
| 2 | 250000745 | Hex Torx Truss M8 X30 Package DPS | 2 |
| 1 | 250000748 | Torx Screw M6 X 45 | 1 |
| 4 | 250000755 | Torx Screw M6 X 16 | 4 |
| 12 | 250000760 | Torx Screw Truss Head K50X20 T20 | 12 |
| 4 | 250000842 | Stainless, Torx Screw M6 X 30 | 4 |
| 22 | 250000842 | Stainless, Torx Screw M6 X 30 Package XT - LTD | 22 |
| 4 | 250000843 | Torx Truss Screw M6 X 30 | 4 |
| 2 | 250200025 | Washer M5 | 2 |
| 8 | 250200029 | Washer M6 | 8 |
| 4 | 250200097 | Flat Washer | 4 |
| 6 | 291001932 | Pad | 6 |
| 4 | 293150089 | Tuflok Plastic Rivet | 4 |
| 2 | 293150089 | Tuflok Plastic Rivet Package DPS | 2 |
| 50 | 293150104 | Pop Rivet 3/16" | 50 |
| 1 | 219704372 | Was 293250087 Gasket | 1 |
| 293450274 | Insert | ||
| 6 | 293720053 | Grommet | 6 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 2 | 414036300 | Grommet | 2 |
| 2 | 414227300 | Clip | 2 |
| 10 | 515176141 | Cap | 10 |
| 31 | 517302785 | Edge Clip | 31 |
| 4 | 517303439 | Knob | 4 |
| 1 | 517303756 | Grommet | 1 |
| 2 | 705002409 | Amber Reflector | 2 |
| 1 | 705002885 | LH Front Facia | 1 |
| 1 | 705002886 | RH Front Facia | 1 |
| 2 | 705002891 | Facia Front Support | 2 |
| 1 | 705002894 | RH Deflector | 1 |
| 1 | 705002895 | LH Deflector Package DPS | 1 |
| 1 | 705003399 | Bottom Deflector Package DPS | 1 |
| 1 | 705003629 | FASCIA UP B-160 | 1 |
| 12 | 705003841 | Support Plate | 12 |
| 1 | 705004336 | Center Upper Facia Protector | 1 |
| 1 | 705004350 | LH Upper Facia Protector | 1 |
| 1 | 705004351 | RH Upper Facia Protector | 1 |
| 1 | 705004755 | Lower Front Facia Protector | 1 |
| 1 | 705004819 | LH Lower Rear Facia Protector | 1 |
| 1 | 705004820 | RH Lower Rear Facia Protector | 1 |
| 1 | 705005113 | LH Deflector Package XT - LTD | 1 |
| 2 | 705005156 | Oval Washer | 2 |
| 1 | 705005423 | Black, LH Lower Panel Package DPS | 1 |
| 1 | 705007035 | Black, LH Lower Panel Package XT - LTD | 1 |
| 1 | 705005424 | Black, RH Lower Panel | 1 |
| 1 | 705005425 | Black, LH Rear Lower Panel | 1 |
| 1 | 705005426 | Black, RH Rear Lower Panel | 1 |
| 1 | 705005428 | Yellow RH Center Cage Panel Yellow Model | 1 |
| 1 | 705005427 | PANEL_CAGE CTRL L B-190 Yellow Model | 1 |
| 1 | 705008365 | DEEP PEWTER SATIN RH CENTER CAGE PANEL Deep Pewter Model | 1 |
| 1 | 705008362 | Deep Pewter Satin LH Center Cage Panel Deep Pewter Model | 1 |
| 1 | 705009607 | PANEL_BODY CTRL L B-176 Viper Red Model | 1 |
| 1 | 705009609 | PANEL_BODY CTRL R B-176 Viper Red Model | 1 |
| 1 | 705009611 | Camo LH Center Cage Panel Camo Model | 1 |
| 1 | 705009614 | Camo, RH Center Cage Panel Camo Model | 1 |
| 1 | 705009612 | PANEL_BODY CTRL L B-367 Cognac Model | 1 |
| 1 | 705009615 | PANEL_BODY CTRL R B-367 Cognac Model | 1 |
| 1 | 705010484 | PANEL_BODY CTRL L B-160 Black Model | 1 |
| 1 | 705010485 | PANEL_BODY CTRL R B-160 Black Model | 1 |
| 1 | 705009608 | PANEL_BODY CTRL L B-365 Quarry Gray Model | 1 |
| 1 | 705009610 | PANEL_BODY CTRL R B-365 Quarry Gray Model | 1 |
| 1 | 705008364 | Brush Aluminum RH Center Cage Panel Brush Aluminium Model | 1 |
| 1 | 705008361 | Brush Aluminum LH Center Cage Panel Brush Aluminium Model | 1 |
| 1 | 705005437 | YELLOW RH PANEL COVER Yellow Model | 1 |
| 1 | 705009617 | CAP_PANEL BODY REAR R B-176 Viper Red Model | 1 |
| 1 | 705009618 | CAP_PANEL BODY REAR R B-365 Quarry Gray Model | 1 |
| 1 | 705009619 | Camo, RH Panel Cover Camo Model | 1 |
| 1 | 705009620 | CAP_PANEL BODY REAR R B-367 Cognac Model | 1 |
| 1 | 705010486 | CAP_PANEL BODY REAR R B-160 Black Model | 1 |
| 1 | 705008368 | DEEP PEWTER SATIN RH PANEL COVER Deep Pewter Model | 1 |
| 1 | 705008367 | BRUSH ALUMINUM RH PANEL COVER Brush Aluminium Model | 1 |
| 40 | 705005626 | "P" Bracket, 2" Dia. | 40 |
| 2 | 705005776 | Windshield Support Package LTD | 2 |
| 2 | 705007038 | RH Lateral Skid Plate | 2 |
| 1 | 705007055 | Middle Protector Plate | 1 |
| 1 | 705007056 | Rear Protector Plate | 1 |
| 1 | 705007059 | YELLOW RH TOP CENTER CAGE COVER Yellow Model | 1 |
| 1 | 705007058 | YELLOW LH TOP CENTER CAGE COVER Yellow Model | 1 |
| 1 | 705009623 | -Cognac LH Top Center Cage Cover Cognac Model | 1 |
| 1 | 705009624 | PANEL_CAGE RH B-367 Cognac Model | 1 |
| 3 | 705008453 | Black, RH Top Center Cage Cover Except Yellow, Cognac Model | 3 |
| 3 | 705008452 | Black, LH Top Center Cage Cover Except Yellow, Cognac Model | 3 |
| 10 | 705007138 | Roof Spacer Bushing | 10 |
| 35 | 705007171 | Cup | 35 |
| 1 | 705007227 | Rear Protector Plate | 1 |
| 1 | 705009203 | Deep Black Roof Front Section Package LTD | 1 |
| 1 | 705009205 | Deep Black Roof Rear Section Package LTD | 1 |
| 2 | 705007916 | Support Skid Plate | 2 |
| 705007955 | YELLOW CAGE COVER KIT Yellow Model | ||
| 1 | 705008584 | DEEP PEWTER-CAGE COVER KIT Deep Pewter Model | 1 |
| 1 | 705008450 | Black, Cage Cover Kit Camo Model | 1 |
| 1 | 705008450 | Black, Cage Cover Kit Brush Aluminium Model | 1 |
| 1 | 705008450 | Black, Cage Cover Kit Black Model | 1 |
| 2 | 705007962 | Perforated Velcro Strap | 2 |
| 2 | 705008421 | Side Protector Plate | 2 |
| 705009217 | Spacer | ||
| 18 | 705009405 | Plastic Dart | 18 |
| 18 | 705009406 | Push Nut | 18 |
| 1 | 705009447 | Skid Plate | 1 |
| 1 | 250200086 | Flat Washer Package XT - LTD | 1 |
| 2 | 708000759 | Rubber Stopper | 2 |
| 1 | 710002837 | LH Speaker Box Ass'y | 1 |
| 2 | 710002838 | Speaker | 2 |
| 1 | 710002839 | RH Speaker Box Ass'y | 1 |
| 2 | 710002946 | M5 Support Plate | 2 |
| 1 | 705008195 | YELLOW RH FRONT FENDER Yellow Model | 1 |
| 1 | 705008194 | YELLOW LH FRONT FENDER Yellow Model | 1 |
| 1 | 705008197 | VIPER RED RH FRONT FENDER Viper Red Model | 1 |
| 1 | 705008196 | VIPER RED LH FRONT FENDER Viper Red Model | 1 |
| 1 | 705008233 | Quarry Gray RH Front Fender Quarry Gray Model | 1 |
| 1 | 705008232 | QUARRY GRAY LH FRONT FENDER Quarry Gray Model | 1 |
| 1 | 705008343 | DEEP PEWTER SATIN RH FRONT FENDER Deep Pewter Model | 1 |
| 1 | 705008341 | DEEP PEWTER SATIN LH FRONT FENDER Deep Pewter Model | 1 |
| 1 | 705009579 | FENDER FR B-367 Cognac Model | 1 |
| 1 | 705009578 | FENDER FL B-367 Cognac Model | 1 |
| 1 | 705009577 | Camo, RH Front Fender Camo Model | 1 |
| 1 | 705009576 | Camo, LH Front Fender Camo Model | 1 |
| 1 | 705008342 | Brush Aluminum RH Front Fender Brush Aluminium Model | 1 |
| 1 | 705008340 | Brush Aluminum LH Front Fender Brush Aluminium Model | 1 |
| 1 | 705010476 | Black RH Front Fender Black Model | 1 |
| 1 | 705010475 | Black LH Front Fender Black Model | 1 |
| 1 | 705008190 | Yellow CVT Inlet Cover Yellow Model | 1 |
| 1 | 705008191 | VIPER RED CVT INLET COVER Viper Red Model | 1 |
| 1 | 705008234 | Quarry Gray CVT Inlet Cover Quarry Gray Model | 1 |
| 1 | 705008345 | Deep Pewter Satin CVT Inlet Cover Deep Pewter Model | 1 |
| 1 | 705009583 | COVER_AIR INLET FL B-367 Cognac Model | 1 |
| 1 | 705009582 | Camo, CVT Inlet Cover Camo Model | 1 |
| 1 | 705008344 | Brush Aluminum CVT Inlet Cover Brush Aluminium Model | 1 |
| 1 | 705010477 | COVER_AIR INLET FL B-160 Black Model | 1 |
| 2 | 250000488 | Torx Truss Screw M6 X 20 | 2 |
| 2 | 207662054 | Hex. Flange Screw M6 X 20 | 2 |
| 1 | 705008187 | HOOD B-190 Yellow Model | 1 |
| 1 | 705008188 | HOOD B-176 Viper Red Model | 1 |
| 1 | 705008235 | HOOD B-365 Quarry Gray Model | 1 |
| 1 | 705008347 | DEEP PEWTER SATIN FIXED HOOD Deep Pewter Model | 1 |
| 1 | 705009586 | COGNAC FIXED HOOD Cognac Model | 1 |
| 1 | 705009585 | Camo, Fixed Hood Camo Model | 1 |
| 1 | 705008346 | BRUSH ALUMINUM FIXED HOOD Brush Aluminium Model | 1 |
| 1 | 705010478 | Black Fixed Hood Black Model | 1 |
| 1 | 705008184 | HOOD B-190 Yellow Model | 1 |
| 1 | 705008185 | Viper Red Removable Hood Viper Red Model | 1 |
| 1 | 705008237 | Quarry Gray Removable Hood Quarry Gray Model | 1 |
| 1 | 705008348 | DEEP PEWTER SATIN REMOVABLE HOOD Deep Pewter Model | 1 |
| 1 | 705009589 | COGNAC REMOVABLE HOOD Cognac Model | 1 |
| 1 | 705009588 | Camo, Removable Hood Camo Model | 1 |
| 1 | 705009206 | Brush Aluminum Removable Hood Brush Aluminium Model | 1 |
| 1 | 705009206 | Brush Aluminum Removable Hood Black Model | 1 |
| 1 | 705008689 | Black Front Facia Package DPS | 1 |
| 2 | 705008690 | Black Front Facia Package LTD | 2 |
| 1 | 705007845 | YELLOW RH FRONT LATERAL PANNEL Yellow Model | 1 |
| 1 | 705007846 | YELLOW LH FRONT LATERAL PANNEL Yellow Model | 1 |
| 1 | 705007852 | VIPER RED RH FRONT LATERAL PANNEL Viper Red Model | 1 |
| 1 | 705007851 | Viper Red LH Front Lateral Pannel Viper Red Model | 1 |
| 1 | 705008240 | Quarry Gray RH Front Lateral Pannel Quarry Gray Model | 1 |
| 1 | 705008239 | QUARRY GRAY LH FRONT LATERAL PANNEL Quarry Gray Model | 1 |
| 1 | 705008352 | DEEP PEWTER SATIN RH FRONT LATERAL PANEL Deep Pewter Model | 1 |
| 1 | 705008350 | Deep Pewter Satin LH Front Lateral Panel Deep Pewter Model | 1 |
| 1 | 705009592 | PANEL_BODY FL B-367 Cognac Model | 1 |
| 1 | 705009593 | PANEL_BODY FR B-367 Cognac Model | 1 |
| 1 | 705009590 | Camo, LH Front Lateral Panel Camo Model | 1 |
| 1 | 705009591 | Camo, RH Front Lateral Panel Camo Model | 1 |
| 1 | 705008351 | Brush Aluminum RH Front Lateral Pannel Brush Aluminium Model | 1 |
| 1 | 705008349 | Brush Aluminum LH Front Lateral Pannel Brush Aluminium Model | 1 |
| 1 | 705010479 | PANEL_BODY FL B-160 Black Model | 1 |
| 1 | 705010480 | PANEL_BODY FR B-160 Black Model | 1 |
| 1 | 705007881 | YELLOW RH REAR LATERAL PANNEL Yellow Model | 1 |
| 1 | 705007864 | YELLOW LH REAR LATERAL PANEL Yellow Model | 1 |
| 1 | 705009605 | PANEL_BODY REAR R B-176 Viper Red Model | 1 |
| 1 | 705007874 | VIPER RED LH REAR LATERAL PANEL Viper Red Model | 1 |
| 1 | 705009606 | PANEL_BODY REAR R B-365 Quarry Gray Model | 1 |
| 1 | 705008369 | QUARRY GRAY LH REAR LATERAL PANEL Quarry Gray Model | 1 |
| 1 | 705008357 | DEEP PEWTER SATIN RH REAR LATERAL PANNEL Deep Pewter Model | 1 |
| 1 | 705008355 | DEEP PEWTER SATIN LH REAR LAT. PANEL Deep Pewter Model | 1 |
| 1 | 705009603 | PANEL_BODY REAR R B-367 Cognac Model | 1 |
| 1 | 705009598 | PANEL_BODY REAR L B-367 Cognac Model | 1 |
| 1 | 705009602 | Camo RH Rear Lateral Panel Camo Model | 1 |
| 1 | 705009596 | Camo, LH Rear Lateral Panel Camo Model | 1 |
| 1 | 705008356 | Brush Aluminum RH Rear Lateral Pannel Brush Aluminium Model | 1 |
| 1 | 705008354 | Brush Aluminum LH Rear Lateral Panel Brush Aluminium Model | 1 |
| 1 | 705010483 | PANEL_BODY REAR R B-160 Black Model | 1 |
| 1 | 705010481 | BLACK LH REAR LATERAL PANEL Black Model | 1 |
| 1 | 705008667 | Black, RH Upper Front Mudguard Package XT - LTD | 1 |
| 1 | 705008666 | Black, LH Upper Front Mudguard Package XT - LTD | 1 |
| 1 | 705008669 | Black, RH Lower Mudguard Package XT - LTD | 1 |
| 1 | 705008668 | Black, LH Lower Mudguard Package XT - LTD | 1 |
| 1 | 705008672 | RH Rear Lower Black Mudguard Package XT - LTD | 1 |
| 1 | 705008670 | Black, LH Rear Lower Mudguard Package XT - LTD | 1 |
| 8 | 250100143 | Extruded Panel Nut M4 X 0.7 | 8 |
| 4 | 250000724 | Torx Screw M5 X 20 | 4 |
| 2 | 710004341 | Speaker Harness Package LTD | 2 |
| 1 | 705009562 | Clear Skylight Panel Package LTD | 1 |
| 293250336 | EXTRUSION Package LTD | ||
| 1 | 705005671 | Half Windshield Package LTD | 1 |
| 36 | 207662054 | Hex. Flange Screw M6 X 20 Package LTD | 36 |
| 8 | 250000622 | Torx Pan Screw M4 X 20 Package LTD | 8 |
| 2 | 705009030 | U Brace Strip Package LTD | 2 |
| 6 | 250000758 | Torx Screw M6 X 25 Package LTD | 6 |
| 1 | 219704364 | Neoprene Seal (1PAC=3M) Package LTD | 1 |
| 4 | 250000749 | Torx Truss Screw M6 X 50 Package LTD | 4 |
| 4 | 705007961 | Velcro Strap Package LTD | 4 |
| 1 | 715002033 | Rear Net Wind Deflector Ass'y Package LTD | 1 |
Хотите использовать PowerCatalog в своём бизнесе?
Купите базу данных SQL с изображениями или арендуйте каталог. Интегрируйте в свою ERP-систему, сайт или мобильное приложение.
Связаться с нами
