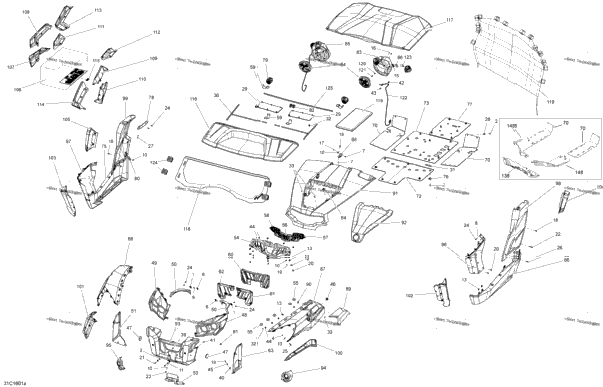

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 207661644 | Hex. Flange Screw M6 X 16 | 4 |
| 26 | 210262050 | Hexagonal Head Screw | 26 |
| 2 | 232081414 | Hex. Nut M8 Package STD - DPS | 2 |
| 47 | 232561434 | Elastic Stop Nut M6 | 47 |
| 27 | 232561434 | Elastic Stop Nut M6 Package XTP - LTD - Hunter | 27 |
| 10 | 232561434 | Elastic Stop Nut M6 Package XT Except Europe | 10 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 10 | 233261494 | Hex. Elastic Flange Nut M6 | 10 |
| 4 | 234051410 | Flat Washer M5 | 4 |
| 8 | 250000622 | Torx Pan Screw M4 X 20 Package LTD | 8 |
| 4 | 234061600 | Stainless Flat Washer M6 | 4 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 2 | 234081410 | Flat Washer 8 mm Package STD - DPS | 2 |
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 21 | 250000048 | Panel Nut M6 X 1.0 | 21 |
| 4 | 250000079 | Panel Nut M5 X 0.8 Package LTD | 4 |
| 8 | 250000146 | Truss Head Torx Screw K50 X 16 | 8 |
| 2 | 250000284 | Torx Screw M6 x 25 Package LTD - Hunter | 2 |
| 1 | 250000712 | Torx Screw M6 X 20 | 1 |
| 1 | 250000720 | Torx Screw K50 X 16 | 1 |
| 1 | 250000722 | Torx Screw M6 X 20 | 1 |
| 2 | 250000745 | Hex Torx Truss M8 X30 Package STD - DPS | 2 |
| 1 | 250000748 | Torx Screw M6 X 45 | 1 |
| 4 | 250000755 | Torx Screw M6 X 16 | 4 |
| 12 | 250000760 | Torx Screw Truss Head K50X20 T20 | 12 |
| 1 | 250000842 | Stainless, Torx Screw M6 X 30 | 1 |
| 2 | 250000843 | Torx Truss Screw M6 X 30 | 2 |
| 5 | 250100031 | Push Nut | 5 |
| 4 | 250200097 | Flat Washer | 4 |
| 280000496 | VISOR POCKET | ||
| 4 | 291001932 | Pad | 4 |
| 28 | 293150089 | Tuflok Plastic Rivet | 28 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 28 | 293150104 | Pop Rivet 3/16" | 28 |
| 1 | 219704372 | Was 293250087 Gasket Package LTD - Hunter | 1 |
| 293450274 | Insert Package Hunter | ||
| 6 | 293720053 | Grommet | 6 |
| 2 | 389804300 | Push Nut Europe Model | 2 |
| 2 | 414036300 | Grommet Package LTD | 2 |
| 2 | 414227300 | Clip Package LTD | 2 |
| 31 | 517302785 | Edge Clip | 31 |
| 4 | 517303439 | Knob | 4 |
| 1 | 517303756 | Grommet | 1 |
| 2 | 705002409 | Amber Reflector Except Europe Model | 2 |
| 1 | 705002885 | LH Front Facia | 1 |
| 1 | 705002886 | RH Front Facia | 1 |
| 2 | 705002891 | Facia Front Support | 2 |
| 1 | 705002894 | RH Deflector | 1 |
| 1 | 705003399 | Bottom Deflector Package STD - DPS | 1 |
| 1 | 705003629 | FASCIA UP B-160 | 1 |
| 12 | 705003841 | Support Plate | 12 |
| 1 | 705004336 | Center Upper Facia Protector | 1 |
| 1 | 705004350 | LH Upper Facia Protector | 1 |
| 1 | 705004351 | RH Upper Facia Protector | 1 |
| XXXX | Not Available As Spare Part - Not Available | ||
| 6 | 705009030 | U Brace Strip Package LTD - Hunter | 6 |
| 1 | 705004755 | Lower Front Facia Protector | 1 |
| 1 | 705004819 | LH Lower Rear Facia Protector | 1 |
| 1 | 705004820 | RH Lower Rear Facia Protector | 1 |
| 1 | 705002895 | LH Deflector Package STD - DPS | 1 |
| 1 | 705005113 | LH Deflector Package XT - LTD - XTP - Hunter | 1 |
| 2 | 705005156 | Oval Washer | 2 |
| 2 | 705005776 | Windshield Support Package LTD - Hunter | 2 |
| 1 | 705006991 | LH Lateral Middle Panel Package STD - DPS | 1 |
| 1 | 705006993 | LH Middle Side Pannel Package XT - LTD - Hunter | 1 |
| 1 | 705007093 | LH MIDDLE SIDE PANNEL Package XTP | 1 |
| 2 | 705007038 | RH Lateral Skid Plate Except Package Hunter | 2 |
| 1 | 715001640 | LH Rear Skid Plate Package Hunter | 1 |
| 1 | 705007055 | Middle Protector Plate Except Package Hunter | 1 |
| 1 | 715001996 | Middle Front Protector Plate Package Hunter | 1 |
| 1 | 705007056 | Rear Protector Plate Except Package Hunter | 1 |
| 1 | 715001997 | Middle Rear Protector Plate Package Hunter | 1 |
| 1 | 705006992 | RH Lateral Middle Panel Package STD - DPS | 1 |
| 1 | 705006994 | RH Middle Side Pannel Package XT - LTD - Hunter | 1 |
| 1 | 705007094 | PANEL_BODY CTRL R Package XTP | 1 |
| 22 | 705007171 | Cup | 22 |
| 1 | 705007227 | Rear Protector Plate Except Package Hunter | 1 |
| 1 | 715000694 | Rear Protector Plate Package Hunter | 1 |
| 2 | 705007916 | Support Skid Plate | 2 |
| 6 | 705007962 | Perforated Velcro Strap Package LTD | 6 |
| 1 | 250200086 | Flat Washer | 1 |
| 2 | 708000759 | Rubber Stopper | 2 |
| 4 | 710001999 | Plug Carling Package LTD - Hunter | 4 |
| 1 | 710002837 | LH Speaker Box Ass'y Package LTD | 1 |
| 2 | 710002838 | Speaker Package LTD | 2 |
| 1 | 710002839 | RH Speaker Box Ass'y Package LTD | 1 |
| 1 | 710002839 | RH Speaker Box Ass'y | 1 |
| 2 | 710002946 | M5 Support Plate Package LTD | 2 |
| 1 | 705006774 | FENDER FL B-341 White Model | 1 |
| 1 | 705007163 | BLACK LH FRONT FENDER Package XTP | 1 |
| 1 | 705010475 | Black LH Front Fender Black Model | 1 |
| 1 | 705008194 | YELLOW LH FRONT FENDER Yellow Model | 1 |
| 1 | 705008196 | VIPER RED LH FRONT FENDER Viper Red Model | 1 |
| 1 | 705008232 | QUARRY GRAY LH FRONT FENDER Quarry Gray Model | 1 |
| 1 | 705008340 | Brush Aluminum LH Front Fender Brush Aluminium Model | 1 |
| 1 | 705008341 | DEEP PEWTER SATIN LH FRONT FENDER Deep Pewter Model | 1 |
| 1 | 705009576 | Camo, LH Front Fender Camo Model | 1 |
| 1 | 705009578 | FENDER FL B-367 Cognac Model | 1 |
| 1 | 705006775 | White RH Front Fender White Model | 1 |
| 1 | 705007164 | Black RH Front Fender Package XTP | 1 |
| 1 | 705010476 | Black RH Front Fender Black Model | 1 |
| 1 | 705008195 | YELLOW RH FRONT FENDER Yellow Model | 1 |
| 1 | 705008197 | VIPER RED RH FRONT FENDER Viper Red Model | 1 |
| 1 | 705008233 | Quarry Gray RH Front Fender Quarry Gray Model | 1 |
| 1 | 705008342 | Brush Aluminum RH Front Fender Brush Aluminium Model | 1 |
| 1 | 705008343 | DEEP PEWTER SATIN RH FRONT FENDER Deep Pewter Model | 1 |
| 1 | 705009577 | Camo, RH Front Fender Camo Model | 1 |
| 1 | 705009579 | FENDER FR B-367 Cognac Model | 1 |
| 1 | 705006054 | COVER_AIR INLET FL B-341 White Model | 1 |
| 1 | 705007165 | BLACK CVT INLET COVER Package XTP | 1 |
| 1 | 705010477 | COVER_AIR INLET FL B-160 Black Model | 1 |
| 1 | 705008190 | Yellow CVT Inlet Cover Yellow Model | 1 |
| 1 | 705008191 | VIPER RED CVT INLET COVER Viper Red Model | 1 |
| 1 | 705008234 | Quarry Gray CVT Inlet Cover Quarry Gray Model | 1 |
| 1 | 705008344 | Brush Aluminum CVT Inlet Cover Brush Aluminium Model | 1 |
| 1 | 705008345 | Deep Pewter Satin CVT Inlet Cover Deep Pewter Model | 1 |
| 1 | 705009582 | Camo, CVT Inlet Cover Camo Model | 1 |
| 1 | 705009583 | COVER_AIR INLET FL B-367 Cognac Model | 1 |
| 2 | 207662054 | Hex. Flange Screw M6 X 20 | 2 |
| 705006036 | HOOD B-341 White Model | ||
| 1 | 705008187 | HOOD B-190 Yellow Model | 1 |
| 1 | 705008188 | HOOD B-176 Viper Red Model | 1 |
| 1 | 705008235 | HOOD B-365 Quarry Gray Model | 1 |
| 1 | 705008236 | CRUSH ORANGE FIXED HOOD Package XTP | 1 |
| 1 | 705008346 | BRUSH ALUMINUM FIXED HOOD Brush Aluminium Model | 1 |
| 1 | 705008347 | DEEP PEWTER SATIN FIXED HOOD Deep Pewter Model | 1 |
| 1 | 705009585 | Camo, Fixed Hood Camo Model | 1 |
| 1 | 705009586 | COGNAC FIXED HOOD Cognac Model | 1 |
| 1 | 705010478 | Black Fixed Hood Black Model | 1 |
| 1 | 705007077 | White Removable Hood White Model | 1 |
| 1 | 705008184 | HOOD B-190 Yellow Model | 1 |
| 1 | 705008185 | Viper Red Removable Hood Viper Red Model | 1 |
| 1 | 705008237 | Quarry Gray Removable Hood Quarry Gray Model | 1 |
| 1 | 705008238 | CRUSH ORANGE REMOVABLE HOOD Package XTP | 1 |
| 1 | 705008348 | DEEP PEWTER SATIN REMOVABLE HOOD Deep Pewter Model | 1 |
| 1 | 705009206 | Brush Aluminum Removable Hood Black Model | 1 |
| 1 | 705009206 | Brush Aluminum Removable Hood Brush Aluminium Model | 1 |
| 1 | 705009588 | Camo, Removable Hood Camo Model | 1 |
| 1 | 705009589 | COGNAC REMOVABLE HOOD Cognac Model | 1 |
| 1 | 705008689 | Black Front Facia Package STD -DPS | 1 |
| 1 | 705008690 | Black Front Facia Package XT - XTP - LTD | 1 |
| 1 | 705010654 | Black Front Facia Package Hunter | 1 |
| 1 | 705008676 | LH FLASHER CAP Europe Model | 1 |
| 1 | 705008677 | RH FLASHER CAP Europe Model | 1 |
| 1 | 705006037 | White LH Front Lateral Pannel White Model | 1 |
| 1 | 705007167 | PANEL_BODY FL B-160 Package XTP | 1 |
| 1 | 705010479 | PANEL_BODY FL B-160 Black Model | 1 |
| 1 | 705007846 | YELLOW LH FRONT LATERAL PANNEL Yellow Model | 1 |
| 1 | 705007851 | Viper Red LH Front Lateral Pannel Viper Red Model | 1 |
| 1 | 705008239 | QUARRY GRAY LH FRONT LATERAL PANNEL Quarry Gray Model | 1 |
| 1 | 705008349 | Brush Aluminum LH Front Lateral Pannel Brush Aluminium Model | 1 |
| 1 | 705008350 | Deep Pewter Satin LH Front Lateral Panel Deep Pewter Model | 1 |
| 1 | 705009590 | Camo, LH Front Lateral Panel Camo Model | 1 |
| 1 | 705009592 | PANEL_BODY FL B-367 Cognac Model | 1 |
| 1 | 705006059 | PANEL_BODY FR B-341 White Model | 1 |
| 1 | 705007168 | PANEL_BODY FR B-160 Package XTP | 1 |
| 1 | 705010480 | PANEL_BODY FR B-160 Black Model | 1 |
| 1 | 705007845 | YELLOW RH FRONT LATERAL PANNEL Yellow Model | 1 |
| 1 | 705007852 | VIPER RED RH FRONT LATERAL PANNEL Viper Red Model | 1 |
| 1 | 705008240 | Quarry Gray RH Front Lateral Pannel Quarry Gray Model | 1 |
| 1 | 705008351 | Brush Aluminum RH Front Lateral Pannel Brush Aluminium Model | 1 |
| 1 | 705008352 | DEEP PEWTER SATIN RH FRONT LATERAL PANEL Deep Pewter Model | 1 |
| 1 | 705009591 | Camo, RH Front Lateral Panel Camo Model | 1 |
| 1 | 705009593 | PANEL_BODY FR B-367 Cognac Model | 1 |
| 1 | 705006744 | PANEL_BODY REAR L B-341 White Model | 1 |
| 1 | 705007169 | BLACK LH REAR LATERAL PANNEL Package XTP | 1 |
| 1 | 705010481 | BLACK LH REAR LATERAL PANEL Black Model | 1 |
| 1 | 705007864 | YELLOW LH REAR LATERAL PANEL Yellow Model | 1 |
| 1 | 705007874 | VIPER RED LH REAR LATERAL PANEL Viper Red Model | 1 |
| 1 | 705008354 | Brush Aluminum LH Rear Lateral Panel Brush Aluminium Model | 1 |
| 1 | 705008355 | DEEP PEWTER SATIN LH REAR LAT. PANEL Deep Pewter Model | 1 |
| 1 | 705008369 | QUARRY GRAY LH REAR LATERAL PANEL Quarry Gray Model | 1 |
| 1 | 705009596 | Camo, LH Rear Lateral Panel Camo Model | 1 |
| 1 | 705009598 | PANEL_BODY REAR L B-367 Cognac Model | 1 |
| 1 | 705006745 | White RH Rear Lateral Pannel White Model | 1 |
| 1 | 705007170 | Black RH Rear Lateral Pannel Package XTP | 1 |
| 1 | 705010482 | Black RH Rear Lateral Panel Black Model | 1 |
| 1 | 705007865 | Yellow RH Rear Lateral Panel Yellow Model | 1 |
| 1 | 705007875 | VIPER RED RH REAR LATERAL PANEL Viper Red Model | 1 |
| 1 | 705008358 | Brush Aluminum RH Rear Lateral Panel Brush Aluminium Model | 1 |
| 1 | 705008359 | DEEP PEWTER SATIN RH REAR LATERAL PANEL Deep Pewter Model | 1 |
| 1 | 705008370 | Quarry Gray RH Rear Lateral Panel Quarry Gray Model | 1 |
| 1 | 705009597 | Camo, RH Rear Lateral Panel Camo Model | 1 |
| 1 | 705009599 | Cognac RH Rear Lateral Panel Cognac Model | 1 |
| 1 | 705008666 | Black, LH Upper Front Mudguard Package XTP - LTD - Hunter | 1 |
| 1 | 705008666 | Black, LH Upper Front Mudguard Package XT | 1 |
| 1 | 705008667 | Black, RH Upper Front Mudguard Package XTP - LTD - Hunter | 1 |
| 1 | 705008667 | Black, RH Upper Front Mudguard Package XT | 1 |
| 1 | 705008668 | Black, LH Lower Mudguard Package XTP - LTD - Hunter | 1 |
| 1 | 705008668 | Black, LH Lower Mudguard Package XT | 1 |
| 1 | 705008669 | Black, RH Lower Mudguard Package XTP - LTD - Hunter | 1 |
| 1 | 705008669 | Black, RH Lower Mudguard Package XT | 1 |
| 1 | 705008670 | Black, LH Rear Lower Mudguard Package XTP - LTD - Hunter | 1 |
| 1 | 705008670 | Black, LH Rear Lower Mudguard Package XT | 1 |
| 1 | 705008672 | RH Rear Lower Black Mudguard Package XTP - LTD - Hunter | 1 |
| 1 | 705008672 | RH Rear Lower Black Mudguard Package XT | 1 |
| 715002451 | FENDER EXTENSION KIT Package XT - XTP- LTD - Hunter | ||
| 1 | 705008666 | Black, LH Upper Front Mudguard | 1 |
| 1 | 705008667 | Black, RH Upper Front Mudguard | 1 |
| 1 | 705008668 | Black, LH Lower Mudguard | 1 |
| 1 | 705008669 | Black, RH Lower Mudguard | 1 |
| 1 | 705008671 | LH Upper Rear Mudguards | 1 |
| 1 | 705008673 | RH Upper Rear Mudguards | 1 |
| 1 | 705008670 | Black, LH Rear Lower Mudguard | 1 |
| 1 | 705008672 | RH Rear Lower Black Mudguard | 1 |
| 8 | 250000721 | Torx Truss Screw M6 X 16 | 8 |
| 1 | 715001952 | Roof Visor Ass'y Package LTD - Hunter | 1 |
| 1 | 715001949 | Mid Roof Kit Package LTD - Hunter | 1 |
| 4 | 705007962 | Perforated Velcro Strap Package LTD - Hunter | 4 |
| 4 | 250000146 | Truss Head Torx Screw K50 X 16 Package LTD | 4 |
| 1 | 705005671 | Half Windshield Package LTD - Hunter | 1 |
| 1 | 715002003 | Rear Net Wind Deflector Ass'y Package LTD | 1 |
| 8 | 250100143 | Extruded Panel Nut M4 X 0.7 Package LTD | 8 |
| 4 | 250100143 | Extruded Panel Nut M4 X 0.7 Package LTD | 4 |
| 2 | 250000488 | Torx Truss Screw M6 X 20 Package LTD - Hunter | 2 |
| 4 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip Package Hunter | 4 |
| 2 | 710004341 | Speaker Harness Package LTD | 2 |
| 4 | 250000724 | Torx Screw M5 X 20 Package LTD | 4 |
| 4 | 705007961 | Velcro Strap Package LTD - Hunter | 4 |
| 1 | 219704368 | Seal Tray 1000Mm Long Package LTD - Hunter | 1 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 Package Hunter | 2 |
| 24 | 210262050 | Hexagonal Head Screw Package Hunter | 24 |
| 1 | 705205448 | Front Protector Package Hunter | 1 |
| 2 | 706200281 | Hardened Washer Package XTP - LTD - Hunter | 2 |
| 1 | 715002494 | Side Skid Plate Kit Package Hunter | 1 |
Хотите использовать PowerCatalog в своём бизнесе?
Купите базу данных SQL с изображениями или арендуйте каталог. Интегрируйте в свою ERP-систему, сайт или мобильное приложение.
Связаться с нами
