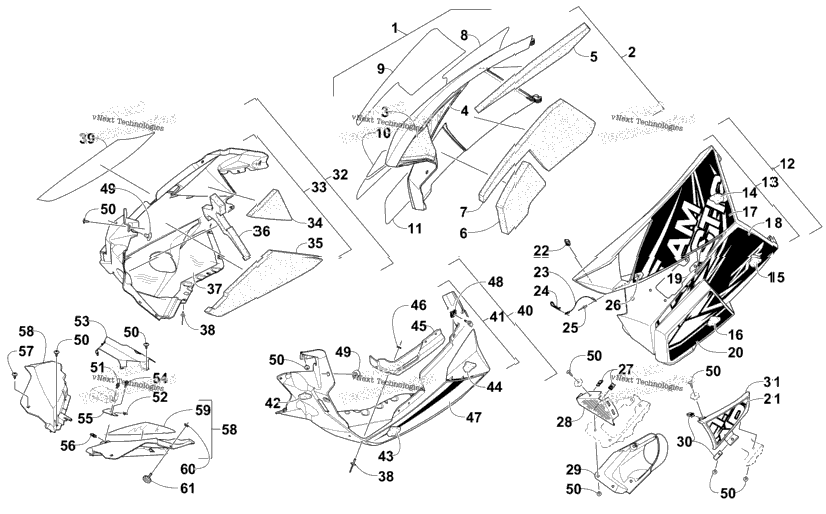

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4718-214 | Panel, Side - w/Decals - Right - Black (inc. 2-11) | ||
| 1 | 3718-180 | Panel, Side - Right w/Foam - Black (inc. 3-7) | 1 |
| 1 | 0617-626 | Foam, Side Panel - Upper Front - Right | 1 |
| 1 | 6606-414 | Foil, Protective | 1 |
| 1 | 0617-628 | Foam, Side Panel - Upper Rear - Right | 1 |
| 1 | 0617-632 | Foam, Side Panel - Lower Front - Right | 1 |
| 1 | 0617-634 | Foam, Side Panel - Lower Rear - Right | 1 |
| 1 | 1621-354 | Decal, Side Panel - Upper - Right | 1 |
| 1621-356 | Decal, Side Panel - Mid - Right | ||
| 1621-360 | Decal, Side Panel - Lower - Right | ||
| 1 | 1621-358 | Decal, Side Panel - Forward - Right | 1 |
| 4718-581 | Panel, Side w/Decals - Left - Black (inc. 13-21) | ||
| 1 | 4718-553 | Panel, Side w/Foam- Left - Black (inc. 14-16) | 1 |
| 1 | 0617-629 | Foam, Side Panel - Upper Rear - Left | 1 |
| 1 | 0617-635 | Foam, Side Panel - Lower Rear - Left | 1 |
| 1 | 0617-681 | Foam, Side Panel - Lower Front - Left | 1 |
| 1 | 2621-301 | Decal, Side Panel - Upper - Left | 1 |
| 1621-357 | Decal, Side Panel - Lower - Left | ||
| 1 | 2621-299 | Decal, Side Panel - Mid - Left | 1 |
| 1621-359 | Decal, Side Panel - Forward - Left | ||
| 1 | 2621-297 | Decal, Side Panel - Mid Vent - Left | 1 |
| 1 | 1623-637 | Clip, U-Nut | 1 |
| 2 | 0607-447 | Cable | 2 |
| 2 | 0605-283 | Clip, Hairpin | 2 |
| 2 | 8060-486 | Rivet | 2 |
| 2 | 8050-127 | Washer | 2 |
| 2 | 1623-052 | Clip, U-Nut | 2 |
| 1 | 6606-925 | Screen, Intake | 1 |
| 1 | 2602-794 | Duct, Intake - Inner | 1 |
| 2 | 1623-030 | Clip, U-Nut | 2 |
| 1 | 2602-793 | Duct, Intake - Outer - Black | 1 |
| 1 | 4718-522 | Plate, Skid w/Decals - Right - Team Arctic Green (inc. 33-39) | 1 |
| 1 | 4718-524 | Plate, Skid - w/o Decals - Right - Green (inc. 34-38) | 1 |
| 1 | 0617-640 | Foam, Skid Plate - Upper Rear - Right | 1 |
| 1 | 0617-638 | Foam, Skid Plate - Center Front - Right | 1 |
| 1 | 0617-636 | Foam, Skid Plate - Upper Front - Right | 1 |
| 1 | 6606-966 | Foil, Protective | 1 |
| 1 | 8061-708 | Rivet | 1 |
| 1 | 1621-362 | Decal, Skid Plate - Right | 1 |
| 1 | 4718-219 | Plate, Skid - w/Decals - Left - Green (inc. 41-47) | 1 |
| 1 | 4718-221 | Plate, Skid - w/o Decals - Left - Green (inc. 42-46) | 1 |
| 1 | 0617-637 | Foam, Skid Plate - Upper Front - Left | 1 |
| 1 | 0617-639 | Foam, Skid Plate - Center Front - Left | 1 |
| 1 | 0617-641 | Foam, Skid Plate - Upper Rear - Left | 1 |
| 1 | 6606-613 | Panel, Reinforcement | 1 |
| 3 | 0123-802 | Washer | 3 |
| 1 | 1621-363 | Decal, Skid Plate - Left | 1 |
| 2 | 2623-005 | Clip, Retaining | 2 |
| 2 | 6606-592 | Pin, Retaining | 2 |
| 1623-129 | Screw, Self-Tapping | ||
| 1 | 8408-612 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y | 1 |
| 1 | 0423-577 | Clip, U-Nut | 1 |
| 1 | 6606-942 | Shield, Heat - ECM | 1 |
| 2 | 8408-620 | Screw, Cap | 2 |
| 6606-941 | Bracket, Mounting - ECM | ||
| 2 | 0423-031 | Clip, U-Nut | 2 |
| 2 | 0623-784 | Screw, Self-Tapping | 2 |
| 1 | 6606-342 | Fascia, Front - Right - Black | 1 |
| 1 | 3718-303 | Fascia, Front - Left - Black (inc. 59) | 1 |
| 6606-405 | Foil, Protective | ||
| 1 | 2623-001 | RETAINER,PUSHNUT - 3/16" STUD Optional | 1 |
| 1 | 1623-999 | Screw, Thumb Optional | 1 |
