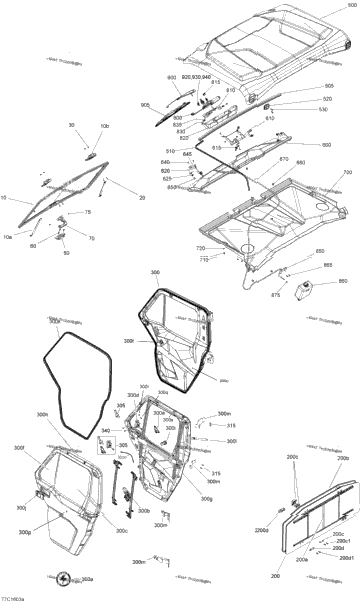

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 715002942 | Windshield Ass'y | 1 |
| 2 | 705800030 | Shock | 2 |
| 1 | 705800082 | Windshield Hinges | 1 |
| 705800158 | Stud Ball | ||
| 1 | 705800006 | Neoprene Seal Not Illustrated | 1 |
| 4 | 250000874 | Torx Truss M8 X 25 | 4 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 | 4 |
| 1 | 705800008 | Handle Anchor | 1 |
| 3 | 250000709 | Torx Screw M6.81 X 30 | 3 |
| 705800112 | Windshield Handle Ass'y | ||
| 2 | 250000881 | Torx Truss M8 X 16 | 2 |
| 1 | 715002440 | Rear Window kit | 1 |
| 705800087 | Sliding Windows | ||
| 1 | 219704384 | Était Was 293250393 Extrusion | 1 |
| 2 | 705800088 | Upper Clamp Ass'y | 2 |
| 2 | 250000709 | Torx Screw M6.81 X 30 | 2 |
| 2 | 705800090 | Lower Clamp Ass'y | 2 |
| 705800002 | LH Door Ass'y | ||
| 705800003 | RH Door Ass'y | ||
| 1 | 705800047 | Driver Door Harness | 1 |
| 1 | 705800050 | Passenger Door Harness | 1 |
| 1 | 705800046 | LH Window Actuator | 1 |
| 1 | 705800051 | RH Window Actuator | 1 |
| 1 | 705800016 | LH Roll-Down Glass | 1 |
| 1 | 705800025 | RH Roll-Down Glass | 1 |
| 1 | 703500915 | LH Interior Latch Kit | 1 |
| 1 | 703500916 | RH Interior Latch Kit | 1 |
| 1 | 705800044 | A-Pillar Glass LH | 1 |
| 1 | 705800052 | A-Pillar Glass RH | 1 |
| 1 | 705800017 | LH DOOR INNER LINER | 1 |
| 1 | 705800026 | RH DOOR INNER LINER | 1 |
| 1 | 705800018 | LH Outside Panel | 1 |
| 1 | 705800027 | RH Outside Panel | 1 |
| 3 | 705800048 | Window Switch | 3 |
| 2 | 705800015 | Exterior Paddle Latch Keys 705800184 sold separately | 2 |
| 2 | 705800045 | Seal | 2 |
| 2 | 705800091 | Strap 265mm Long 1rst Version, 3 Holes | 2 |
| 1 | 705800183 | -Strap 205mm Long 2nd version, 2 Holes | 1 |
| 2 | 703500917 | LH Hinge Kit | 2 |
| 2 | 703500918 | RH Hinge Kit | 2 |
| 1 | 715900493 | LH Latch Cable 2.4'' | 1 |
| 1 | 715900494 | RH Latch Cable 2.9'' | 1 |
| 2 | 715900504 | Interior Latch Cable 28'' | 2 |
| 705800156 | Dart, Black | ||
| 2 | 205484060 | Socket Head Screw M8 X 40 | 2 |
| 2 | 233281466 | Elastic Flange Nut M8 | 2 |
| 2 | 219704435 | TRIM - U SHAPED 3500MM LONG | 2 |
| 2 | 715900526 | LH Power Window Switch Housing | 2 |
| 1 | 715900527 | RH Power Window Switch Housing | 1 |
| 8 | 250000874 | Torx Truss M8 X 25 | 8 |
| 1 | 715002430 | Sport Roof Kit | 1 |
| 1 | 219704379 | Was 293250361 Gasket | 1 |
| 2 | 705800058 | Roof Cap Package XT | 2 |
| 4 | 250000874 | Torx Truss M8 X 25 Package XT | 4 |
| 715003561 | RADIO SUPPORT KIT | ||
| 1 | 705800060 | Support | 1 |
| 4 | 250000048 | Panel Nut M6 X 1.0 | 4 |
| 1 | 705800108 | LH Support | 1 |
| 1 | 705800109 | RH Support | 1 |
| 8 | 250000722 | Torx Screw M6 X 20 | 8 |
| 8 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 8 |
| 1 | 715003099 | Roof Rear Liner Ass'y | 1 |
| 6 | 250000760 | Torx Screw Truss Head K50X20 T20 | 6 |
| 6 | 234062670 | Stainless Steel Flat Washer | 6 |
| 1 | 705010657 | Wiper Motor | 1 |
| 1 | 705800073 | Cover Support Ass'y | 1 |
| 2 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 2 |
| 1 | 705800072 | Cover, Wiper Motor | 1 |
| 3 | 250000722 | Torx Screw M6 X 20 | 3 |
| 3 | 250000048 | Panel Nut M6 X 1.0 | 3 |
| 1 | 705800086 | Windshield Washer Tank Support | 1 |
| 1 | 705800039 | Windshield Washer Tank | 1 |
| 2 | 250000720 | Torx Screw K50 X 16 | 2 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 2 | 414554800 | Spring Clamp | 2 |
| 4 | 414227300 | Clip | 4 |
| 1 | 705010656 | Wiper Arm | 1 |
| 1 | 705010655 | Wiper | 1 |
| 1 | 705800103 | 90° Elbow Connector | 1 |
| 1 | 275500398 | Check Valve | 1 |
