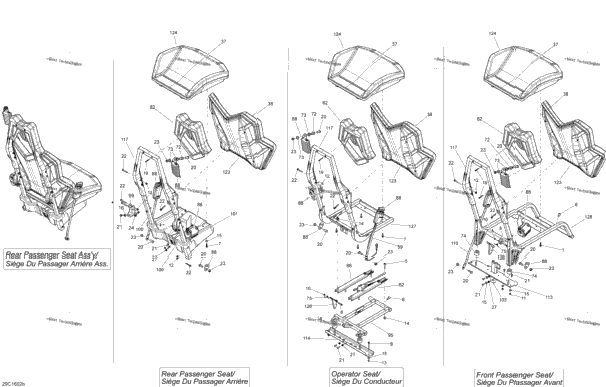

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 205084044 | Socket Head Screw M8 X 1.25 X 40 | 1 |
| 1 | 205501644 | Socket Screw M10 X 16 | 1 |
| 1 | 207562544 | Hex. Flange Screw M6 X 25 | 1 |
| 2 | 207663034 | Hex. Flange Screw M6 X 30 | 2 |
| 2 | 207664544 | Hex. Flange Screw M6 X 45 | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 4 | 233061414 | Hex. Flange Nut M6 | 4 |
| 1 | 233161464 | Hex. Elastic Flange Nut M6 | 1 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 4 | 234281474 | Conical Spring Washer M8 | 4 |
| 1 | 250000490 | HEX. WASHER HEAD SCREW PT K50 X 40 | 1 |
| 1 | 250000521 | Hex. Cap Screw 7/16'' X 1'' | 1 |
| 1 | 207562054 | Hex. Flange Screw S.GRIP M6 X 20 | 1 |
| 1 | 250000672 | Hex. Flange Screw M6 | 1 |
| 1 | 250100135 | Nylon Insert Hex. Lock Nut 7/16-20 | 1 |
| 4 | 250100160 | Panel Nut M6 | 4 |
| 293450274 | Insert | ||
| 1 | 708001103 | Seat Cover Package STD, DPS | 1 |
| 4 | 708001554 | Seat Cover Model White/Grey/Manta | 4 |
| 4 | 708001554 | Seat Cover Model XDS Black Carbon | 4 |
| 1 | 708001887 | SEAT COVER Model XRS Black Carbon | 1 |
| 4 | 708001554 | Seat Cover Model Black/white/Manta | 4 |
| 3 | 708001883 | Seat Cover Model Black/Blue | 3 |
| 3 | 708001883 | Seat Cover Model Silver/Blue | 3 |
| 1 | 708000675 | Backrest Cover Package STD, DPS | 1 |
| 3 | 708001889 | BACKREST COVER Model Black/Blue | 3 |
| 3 | 708001889 | BACKREST COVER Model Silver/Blue | 3 |
| 4 | 708001574 | BACKREST COVER Model White/Grey/Manta | 4 |
| 4 | 708001574 | BACKREST COVER Model XDS Black Carbon | 4 |
| 1 | 708001885 | BACKREST COVER Model XRS Black Carbon | 1 |
| 4 | 708001574 | BACKREST COVER Model Black/white/Manta | 4 |
| 1 | 708000987 | Driver Buckle Side | 1 |
| 1 | 708001739 | RH Rail | 1 |
| 1 | 708000848 | LH Rail | 1 |
| 4 | 708000890 | Safety Belt Screw | 4 |
| 8 | 708000891 | Position Washer | 8 |
| 2 | 708001671 | Rubber Bumper | 2 |
| 2 | 708000921 | Spring | 2 |
| 4 | 708001074 | Head Rest | 4 |
| 4 | 708001854 | Safety Belt | 4 |
| 2 | 708002063 | Rear Passenger Buckle Side | 2 |
| 1 | 708001174 | Seat Member | 1 |
| 2 | 708001474 | Rear Anchor | 2 |
| 2 | 708001196 | LATERAL TUBE | 2 |
| 2 | 708001198 | Seat Support | 2 |
| 1 | 708001213 | Anchor | 1 |
| 1 | 708002064 | Passenger Buckle Side | 1 |
| 1 | 708001804 | Support | 1 |
| 1 | 708001214 | Seat Support | 1 |
| 4 | 708001245 | Seat Support | 4 |
| 1 | 708001316 | Backrest Assembly Package STD, DPS | 1 |
| 708001573 | BACKREST Model White/Grey/Manta | ||
| 708001573 | BACKREST Model XDS Black Carbon | ||
| 1 | 708001884 | Backrest Assembly Model XRS Black Carbon | 1 |
| 708001573 | BACKREST Model Black/white/Manta | ||
| 3 | 708001888 | BACKREST ASSEMBLY Model Black/Blue | 3 |
| 3 | 708001888 | BACKREST ASSEMBLY Model silver/Blue | 3 |
| 1 | 708001318 | Cushion Assembly Package STD, DPS | 1 |
| 4 | 708001552 | Cushion Assembly Model White/Grey/Manta | 4 |
| 4 | 708001552 | Cushion Assembly Model XDS Black Carbon | 4 |
| 1 | 708001886 | CUSHION Model XRS Black Carbon | 1 |
| 4 | 708001552 | Cushion Assembly Model Black/white/Manta | 4 |
| 3 | 708001882 | Cushion Assembly Model Black/Blue | 3 |
| 3 | 708001882 | Cushion Assembly Model silver/Blue | 3 |
| 2 | 708001355 | Seat Latch | 2 |
| 1 | 708001356 | Operator Seat Frame | 1 |
| 1 | 708001357 | Passenger Seat Frame | 1 |
