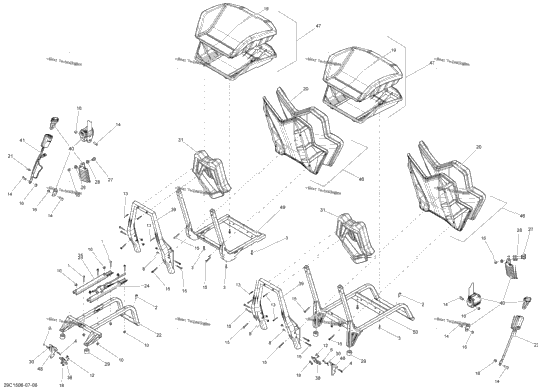

Список запчастей

№	Артикул	Название	Кол-во
4	205084044	Socket Head Screw M8 X 1.25 X 40	4
1	205501644	Socket Screw M10 X 16	1
4	207562544	Hex. Flange Screw M6 X 25	4
1	207663034	Hex. Flange Screw M6 X 30	1
1	232561600	Hex. Elastic Stop Nut M6	1
4	233161464	Hex. Elastic Flange Nut M6	4
8	233281414	Hex. Flange Elastic Nut M8	8
4	250000223	Torx Screw M6 X 16	4
4	250000490	HEX. WASHER HEAD SCREW PT K50 X 40	4
8	250000521	Hex. Cap Screw 7/16'' X 1''	8
8	250000672	Hex. Flange Screw M6	8
8	250100135	Nylon Insert Hex. Lock Nut 7/16-20	8
	293450274	Insert
2	708001103	Seat Cover Package STD - DPS- XC	2
2	708001084	SEAT COVER Package-XRS, Model Black-Yellow	2
2	708001887	SEAT COVER Package-XRS, Model Carbon Fiber	2
2	708001084	SEAT COVER Package-XRS/DPS, Model Black-Yellow	2
2	708001333	Seat Cover Package-XRS/DPS, Model White-Red-Black Cage	2
2	708001333	Seat Cover Package-XRS/DPS, Model Red	2
2	708001883	Seat Cover Package XDSDPS Model Silver/Blue	2
2	708001883	Seat Cover Package XXC Model Silver/Blue	2
2	708001887	SEAT COVER Package XMR White	2
2	708001883	Seat Cover Package XMR Silver/Black/Blue	2
2	708001554	Seat Cover Package XMR Digital Camo	2
2	708000675	Backrest Cover Package STD - DPS- XC	2
2	708001080	BACKREST COVER Package-XRS, Model Black-Yellow	2
2	708001885	BACKREST COVER Package-XRS, Model Carbon Fiber	2
2	708001080	BACKREST COVER Package-XRS/DPS, Model Black-Yellow	2
2	708001331	BACKREST COVER Package-XRS/DPS, Model White-Red-Black Cage	2
2	708001331	BACKREST COVER Package-XRS/DPS, Model Red	2
2	708001889	BACKREST COVER Package XDSDPS Model Silver/Blue	2
2	708001881	BACKREST COVER Package XXC Model Silver/Blue	2
2	708001885	BACKREST COVER Package XMR White	2
2	708001881	BACKREST COVER Package XMR Silver/Black/Blue	2
2	708001553	BACKREST COVER Package XMR Digital Camo	2
1	293750008	Tie Wrap 368 mm	1
1	708000667	Seat Member	1
1	708000844	Passenger Buckle Side	1
1	708000857	PASSENGER BUCKLE SIDE Model-Europe	1
1	708001739	RH Rail	1
1	708000848	LH Rail	1
2	708000890	Safety Belt Screw	2
4	708000891	Position Washer	4
2	708000899	Rubber Bumper	2
1	708000921	Spring	1
1	708001074	Head Rest	1
1	708001482	RH Retaining Rod	1
1	708001477	LH Retaining Rod	1
1	708001245	Seat Support	1
2	708001130	SAFETY BELT Model-Europe	2
2	708001302	Safety Belt	2
1	708000856	Driver Buckle Side Model-Europe	1
1	708000987	Driver Buckle Side	1
1	708001316	Backrest Assembly Package STD - DPS- XC	1
	708001338	BACKREST ASSEMBLY Package-XRS/DPS, Model White-Red-Black Cage
1	708001317	Backrest Assembly Package-XRS/DPS, Model Black-Yellow	1
	708001338	BACKREST ASSEMBLY Package-XRS/DPS, Model Red
2	708001317	Backrest Assembly Package-XRS, Model Black-Yellow	2
2	708001884	Backrest Assembly Package-XRS, Model Carbon Fiber	2
2	708001888	BACKREST ASSEMBLY Package XDSDPS Model Silver/Blue	2
2	708001880	BACKREST ASSEMBLY Package XXC Model Silver/Blue	2
2	708001884	Backrest Assembly Package XMR Model White	2
2	708001880	BACKREST ASSEMBLY Package XMR Silver/Black/Blue	2
2	708001550	BACKREST ASS'Y Package XMR Digital Camo	2
2	708001318	Cushion Assembly Package STD - DPS- XC	2
2	708001552	Cushion Assembly Package XDSDPS Model Black	2
2	708001552	Cushion Assembly Package XDSDPS Model Carbon fiber	2
2	708001339	Cushion Assembly Package-XRS/DPS, Model White-Red-Black Cage	2
	708001319	CUSHION ASSEMBLY Package-XRS/DPS, Model Black-Yellow
2	708001339	Cushion Assembly Package-XRS/DPS, Model Red	2
	708001319	CUSHION ASSEMBLY Package-XRS, Model Black-Yellow
2	708001886	CUSHION Package-XRS, Model Carbon Fiber	2
2	708001882	Cushion Assembly Package XDSDPS Model Silver/Blue	2
2	708001882	Cushion Assembly Package XXC Model Silver/Blue	2
2	708001886	CUSHION Package XMR Model White	2
2	708001882	Cushion Assembly Package XMR Silver/Black/Blue	2
2	708001552	Cushion Assembly Package XMR Digital Camo	2
1	708001355	Seat Latch	1
1	708001356	Operator Seat Frame	1
1	708001357	Passenger Seat Frame	1
