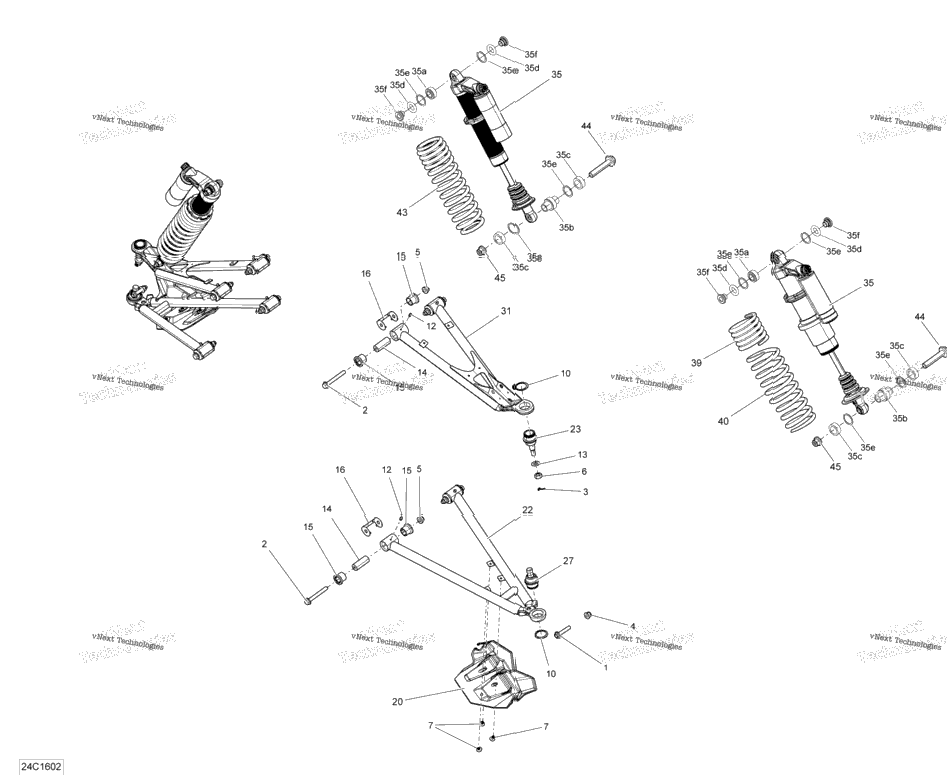

Список запчастей

№	Артикул	Название	Кол-во
2	207605044	Hex. Flange Screw M10 X 50	2
8	207608046	Hex Flange Screw M10 X 80	8
2	211400017	Cotter Pin	2
2	233201414	Hex. Flange Elastic Nut M10	2
8	233201436	Hex. Flange Elastic Nut M10	8
2	250100099	Nut M12	2
6	293150104	Pop Rivet 3/16"	6
4	293370035	Circlip	4
8	408200700	Grease Fitting	8
2	250200086	Flat Washer	2
8	706201590	Sleeve	8
16	706201659	Cushion	16
8	706201660	Wear Plate	8
1	706201829	LH Joint Protector	1
1	706201830	RH Joint Protector	1
1	706201726	LH Front Lower Arm Package XC, XXC	1
1	706201727	RH Front Lower Arm Package XC, XXC	1
1	706201861	LH Front Lower Arm Except Package XC, XXC	1
1	706201862	RH Front Lower Arm Except Package XC, XXC	1
2	706202044	Ball Joint	2
2	706202045	Ball Joint	2
2	706202086	Black Front Upper Arm Package STD	2
2	706202087	Black Front Upper Arm Package XC	2
2	706202391	Black Front Upper Arm Package XDSSTD	2
2	706202091	RED FRONT UPPER ARM Package XMR White	2
2	706202091	RED FRONT UPPER ARM Package DPS	2
2	706202093	Red Front Upper Arm Package XXC White	2
2	706202517	Red Front Upper Arm Package XDSXRS	2
	706202423	SUSPENSION ARM UP F B-352 GULFS BLUE Package XXC Quarry Gray
2	706202340	SUSPENSION ARM UP F B-352 GULFS BLUE Package XMR Silver	2
2	706202350	Blue Front Upper Arm Package XDSDPS Silver	2
2	706202092	Manta Green Front Upper Arm Package XMR Digital Camo & Manta Green	2
2	706202392	Green Front Upper Arm Package XDS	2
2	706202392	Green Front Upper Arm Package XDSDPS Black	2
2	706202392	Green Front Upper Arm Package XDSDPS Quarry Gray	2
2	706202392	Green Front Upper Arm Package XDSDPS Black Carbon	2
2	706202247	FRONT SHOCK Package STD - DPS	2
1	706202251	FRONT SHOCK MAX Model Package DPS	1
2	706202154	Front Shock Package XDS	2
2	706202157	Front Shock MAX Model Package XDSDPS, XDSXRS	2
1	706202542	FRONT SHOCK Package XDSSTD	1
1	706202545	FRONT SHOCK MAX Model Package XDSSTD	1
2	706202249	Front Shock Package XC, XXC White	2
2	706202141	FRONT SHOCK Package XMR	2
1	715900266	Spherical Bearing Except Package XMR	1
1	715900329	Spherical Bearing Package XMR	1
1	715900330	Spherical Bearing	1
2	715900331	Protector	2
2	715900268	O-Ring Bushing	2
4	715900252	Retaining Ring	4
2	715900267	Internal Bushing	2
2	706202155	MANTA GREEN SPRING Package XDSDPS Quarry Gray	2
2	706202155	MANTA GREEN SPRING Package XDSDPS Black Carbon	2
2	706202155	MANTA GREEN SPRING Package XDSDPS Black/White	2
2	706202155	MANTA GREEN SPRING Package XDS	2
	706202158	MANTA GREEN SPRING MAX Model XDSDPS, XDSSTD,
2	706202352	BLUE SPRING Package XDSDPS Black/Blue	2
2	706202352	BLUE SPRING Package XDSDPS Silver	2
2	706202356	BLUE SPRING MAX Model XDSDPS Silver	2
1	706202513	SPRING Package XDSXRS	1
1	706202515	SPRING Max Model Package XDSXRS	1
2	706202156	MANTA GREEN SPRING Package XDSDPS Quarry Gray	2
2	706202156	MANTA GREEN SPRING Package XDSDPS Black Carbon	2
2	706202156	MANTA GREEN SPRING Package XDSDPS Black	2
2	706202156	MANTA GREEN SPRING Package XDS, XDSDPS, XDSSTD	2
2	706202159	MANTA GREEN SPRING MAX Model XDSDPS, XDSSTD,	2
2	706202353	BLUE SPRING Package XDSDPS Silver	2
2	706202357	BLUE SPRING MAX Model XDSDPS Silver	2
1	706202514	SPRING Package XDSXRS	1
1	706202516	SPRING Max Model Package XDSXRS	1
2	706201820	WHITE FRONT SPRING Package STD White	2
2	706202144	MANTA GREEN FRONT SHOCK Package XMR Digital Camo & Manta Green	2
2	706202720	FRONT SPRING Package XC	2
	706201825	RED FRONT SPRING Package XXC White
2	706202255	RED FRONT SPRING Package XMR White	2
2	706202338	RED FRONT SPRING Package DPS	2
2	706202338	RED FRONT SPRING Package STD Quarry Gray	2
	706202349	RED SPRING Max Model Package DPS
	706202349	RED SPRING Package XMR White
	706202342	FRONT SPRING GULFSTREAM BLUE Package XMR Silver
1	706202347	BLUE SPRING Package XXC Quarry Gray	1
4	207626046	Hex. Flange Screw M12 X 60	4
4	233221416	Elastic Flange Nut M12	4
