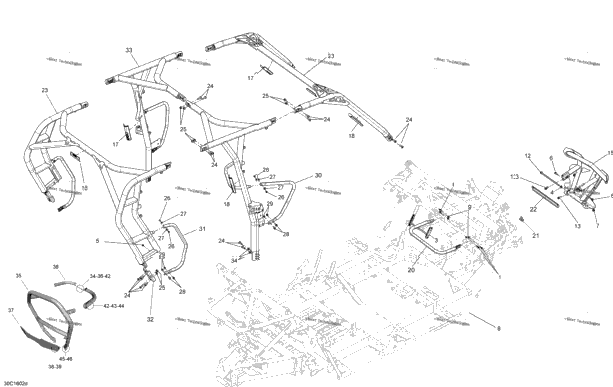

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 207662046 | Hex. Flange Screw M6 X 20 | 4 |
| 1 | 705203717 | Reinforcement Panel | 1 |
| 1 | 234201474 | Conical Spring Washer 10 mm | 1 |
| 293450274 | Insert | ||
| 2 | 207382544 | SCREW-HEX.CAP DIN.933 S.GRIP | 2 |
| 1 | 233201436 | Hex. Flange Elastic Nut M10 | 1 |
| 705204826 | Black Frame Max | ||
| 4 | 233261416 | Elastic Flange Nut M6 X 1.0 | 4 |
| 1 | 250000597 | Hex. Flange Screw | 1 |
| 2 | 250100118 | Panel Nut M8 X 1.25 | 2 |
| 705203685 | FRONT BUMPER Europe Model | ||
| 705203685 | FRONT BUMPER Package XDSSTD | ||
| 705204266 | FRONT BUMPER ASS'Y Package XDSDPS | ||
| 705204266 | FRONT BUMPER ASS'Y Package XDSXRS | ||
| 1 | 704903492 | Warning Label | 1 |
| 2 | 704903679 | Warning Label | 2 |
| 2 | 704903680 | Warning Label | 2 |
| 1 | 705203332 | Black Handle | 1 |
| 2 | 705203415 | Binding Block | 2 |
| 1 | 705203454 | FRONT SUSPENSION LINK | 1 |
| 1 | 715003420 | Black Cage Kit Black Cage Model | 1 |
| 1 | 715003423 | Blue Cage Kit Blue Cage Model | 1 |
| 1 | 715003426 | Manta Green Cage Kit Manta Green Cage Model | 1 |
| 715003427 | Red Cage Kit Red Cage Model | ||
| 12 | 250000848 | Screw Pan M10 X 30 | 12 |
| 4 | 233101464 | Hex. Elastic Flange Nut , M10 X 1.5 | 4 |
| 4 | 250000789 | Torx Truss M6X14 | 4 |
| 4 | 705202223 | Offset Washer | 4 |
| 4 | 207682044 | Hex. Flange Screw M8 X 20 | 4 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 | 4 |
| 1 | 705203642 | Black RH Front Side Protector Tube Black Cage Model | 1 |
| 1 | 705204067 | MANTA GREEN RH SIDE PROTECTOR TUBE Manta Green Cage Model | 1 |
| 1 | 705204069 | RED RH FRONT SIDE PROTECTOR TUBE Red Cage Model | 1 |
| 1 | 705204819 | BLUE RH FRONT SIDE PROTECTOR TUBE Blue Cage Model | 1 |
| 1 | 705203643 | Black LH Front Side Protector Tube Black Cage Model | 1 |
| 1 | 705204066 | MANTA GREEN LH SIDE PROTECTOR TUBE Manta Green Model | 1 |
| 1 | 705204066 | MANTA GREEN LH SIDE PROTECTOR TUBE Manta Green Cage Model | 1 |
| 1 | 705204068 | RED LH FRONT SIDE PROTECTOR TUBE Red Cage Model | 1 |
| 1 | 705204818 | BLUE LH FRONT SIDE PROTECTOR TUBE Blue Cage Model | 1 |
| 1 | 705203649 | Black LH Rear Side Protector Tube Black Cage Model | 1 |
| 1 | 705204062 | MANTA GREEN LH REAR PROTECTOR TUBE Manta Green Cage Model | 1 |
| 1 | 705204064 | RED LH REAR SIDE PROTECTOR TUBE Red Cage Model | 1 |
| 1 | 705204820 | SIDE PROTECT Blue Cage Model | 1 |
| 1 | 705203652 | Black RH Rear Side Protector Tube Black Cage Model | 1 |
| 1 | 705204063 | MANTA GREEN RH REAR PROTECTOR TUBE Manta Green Cage Model | 1 |
| 1 | 705204065 | RED RH REAR SIDE PROTECTOR TUBE Red Cage Model | 1 |
| 1 | 705204821 | BLUE RH REAR SIDE PROTECTOR TUBE Blue Cage Model | 1 |
| 2 | 705203514 | Rear Hand Mounting | 2 |
| 1 | 715003424 | Black Center Safety Cage Kit Black Cage Model | 1 |
| 1 | 715003425 | Blue Center Safety Cage Kit Blue Cage Model | 1 |
| 1 | 715003428 | Manta Green Center Safety Cage Kit Manta Green Cage Model | 1 |
| 1 | 715003429 | Red Center Safety Cage Kit Red Cage Model | 1 |
| 4 | 250200154 | Washer | 4 |
| 705204767 | REAR BUMPER RED Package XDSXRS | ||
| 705204766 | UPPER ARM RED Package XDSXRS | ||
| 705203282 | REAR PROTECTOR Package XDSXRS | ||
| 2 | 250000234 | Torx Screw M6 X 20, Stainless Package XDSXRS | 2 |
| 2 | 233261494 | Hex. Elastic Flange Nut M6 Package XDSXRS | 2 |
| 2 | 250000761 | Torx Truss Screw M8 X 50 Package XDSXRS | 2 |
| 2 | 234082410 | Flat Washer 8 mm Package XDSXRS | 2 |
| 6 | 233281464 | Elastic Flange Nut M8 Package XDSXRS | 6 |
| 4 | 250000383 | Torx Screw M8 X 60, Scotch Grip Package XDSXRS | 4 |
| 708300563 | WASHER Package XDSXRS | ||
| 4 | 207609046 | Hex. Flange Screw M10 X 90 Package XDSXRS | 4 |
| 4 | 233201436 | Hex. Flange Elastic Nut M10 Package XDSXRS | 4 |
