Демо
PowerCatalog
Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

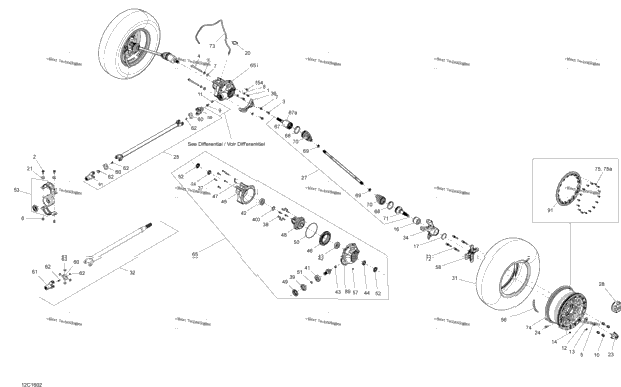

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 2 |
| 2 | 207602544 | Hex. Flange Screw M10 X 25 MAX Model | 2 |
| 2 | 207602546 | Hex. Flange Screw M10 X 25 | 2 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 250100047 | Hex. Castellated Nut M18 | 2 |
| 2 | 233201414 | Hex. Flange Elastic Nut M10 MAX Model | 2 |
| 4 | 234201474 | Conical Spring Washer 10 mm | 4 |
| 2 | 234281474 | Conical Spring Washer M8 | 2 |
| 1 | 250000847 | Hex. Flange Screw M10 X 20 | 1 |
| 8 | 250100100 | Black Wheel Nut M10 X 1.25 | 8 |
| 1 | 250200014 | Flat Washer M10 | 1 |
| 2 | 250200049 | Spring Washer | 2 |
| 2 | 250400071 | Cotter Pin | 2 |
| 2 | 293000110 | Valve Cap | 2 |
| 2 | 293250246 | O-Ring | 2 |
| 2 | 293350040 | Cone Bearing | 2 |
| 2 | 293370019 | Circlip | 2 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 2 | 503032900 | Washer MAX Model | 2 |
| 2 | 705400780 | Wear Sleeve Except Package XMR | 2 |
| 2 | 705400928 | Wheel Cap Except Package XMR, XDSSTD | 2 |
| 2 | 705401541 | Wheel Cap Package XDSSTD | 2 |
| 1 | 705400193 | Rim Valve With Cap | 1 |
| 1 | 703500909 | Drive Axle Ass'y | 1 |
| 1 | 705401235 | LH Constant-Speed Universal Joint Package STD - DPS - XDSXRS | 1 |
| 1 | 705401236 | RH Constant-Speed Universal Joint Package STD - DPS - XDSXRS | 1 |
| 1 | 705401235 | LH Constant-Speed Universal Joint Package XDS - XDSDPS, XDSSTD | 1 |
| 1 | 705401236 | RH Constant-Speed Universal Joint Package XDS - XDSDPS, XDSSTD | 1 |
| 1 | 705401368 | LH Half Shaft Package XC - XXC | 1 |
| 1 | 705401367 | RH Half Shaft Package XC - XXC | 1 |
| 1 | 705401807 | LH Constant-Speed Universal Joint Package XMR | 1 |
| 1 | 705401808 | RH Constant-Speed Universal Joint Package XMR | 1 |
| 1 | 705400036 | Wear Ring | 1 |
| 2 | 705401318 | Wheel Cap Package XMR | 2 |
| 1 | 705401385 | Front Tire Maxxis 27X9X12 Package STD Except Europe | 1 |
| 1 | 705401385 | Front Tire Maxxis 27X9X12 Package DPS Except Europe | 1 |
| 1 | 705401385 | Front Tire Maxxis 27X9X12 Package XC - XXC Except Europe | 1 |
| 1 | 705401046 | Front Tire Package Maverick XDS Europe | 1 |
| 1 | 705401386 | Front Tire Europe Model Except P-XDS | 1 |
| 705401501 | TIRE_30X9R14 Package XMR | ||
| 1 | 705401592 | Front Tire Package XDSDPS, XDSSTD, XDSXRS | 1 |
| 1 | 705401495 | Drive Axle Ass'y MAX Model | 1 |
| 1 | 705401548 | LH Front Knuckle | 1 |
| 1 | 705401549 | RH Front Knuckle | 1 |
| 1 | 705401600 | SUPPORT | 1 |
| 6 | 705401601 | Screw | 6 |
| 8 | 705401602 | Screw | 8 |
| 1 | 705401603 | Nut | 1 |
| 1 | 705401604 | Shim | 1 |
| 1 | 705401605 | Ball Bearing | 1 |
| 2 | 705401606 | Ball Bearing | 2 |
| 1 | 705401607 | Needle Bearing | 1 |
| 2 | 705401608 | Ball Bearing | 2 |
| 1 | 705401610 | Front Cover | 1 |
| 1 | 705401612 | Gear 36 Teeth | 1 |
| 1 | 705401613 | Vent Valve | 1 |
| 1 | 705401506 | Differential Except Package STD - XDS | 1 |
| 1 | 705401614 | Differential Package STD - XDS | 1 |
| 1 | 705401615 | Oil Seal | 1 |
| 1 | 705401616 | Seal | 1 |
| 1 | 705401617 | O'Ring | 1 |
| 2 | 705401618 | Gasket | 2 |
| 1 | 705401646 | Ball Bearing MAX Model | 1 |
| 1 | 705500504 | Fill Level Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 1 | 219704465 | 1/2 OZ Weight | 1 |
| 1 | 705501885 | Drain Plug | 1 |
| 2 | 705501900 | Wheel Hub | 2 |
| 1 | 715900116 | Fixed Yoke Joint | 1 |
| 1 | 703500814 | Unit Pack Kit | 1 |
| 1 | 715900183 | U-Joint | 1 |
| 1 | 715900231 | Yoke Joint | 1 |
| 1 | 703500813 | GREASE FITTING | 1 |
| 1 | 715900483 | Cover | 1 |
| 1 | 703500815 | Grease Fitting MAX Model | 1 |
| 715900117 | SNAP RING | ||
| 1 | 703500899 | Front Differential Ass'y Package STD - XDS | 1 |
| 1 | 703500900 | Front Differential Ass'y Except Package STD - XDS | 1 |
| 1 | 705401791 | Pinion 10 Teeth | 1 |
| 1 | 705401348 | RH Plunging Joint | 1 |
| 1 | 705401350 | LH Plunging Joint | 1 |
| 1 | 715900260 | Oetiker Clamp, Large Package XMR | 1 |
| 1 | 715900282 | Oetiker Clamp Except Package XMR | 1 |
| 1 | 715900261 | Oetiker Clamp, Small Package XMR | 1 |
| 1 | 715900283 | Oetiker Clamp, Small Except Package XMR | 1 |
| 1 | 705401345 | Boot Kit, Wheel Side Except Package XMR | 1 |
| 1 | 705401354 | Boot Kit, Wheel Side Package XMR | 1 |
| 1 | 705401346 | Boot Kit, Differential Side Except Package XMR | 1 |
| 1 | 705401355 | Boot Kit, Différential Side Package XMR | 1 |
| 1 | 705401344 | CV Joint Except Package XMR | 1 |
| 1 | 705401407 | CV Joint Package XMR | 1 |
| 8 | 250300051 | Wheel Stud | 8 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 1 | 705401417 | Deep Black, 12" X 6 Rim Package STD | 1 |
| 1 | 705401417 | Deep Black, 12" X 6 Rim Package DPS | 1 |
| 1 | 705401417 | Deep Black, 12" X 6 Rim Package XDS - XC | 1 |
| 1 | 705401552 | Matte Black Rim Package XMR | 1 |
| 1 | 705401594 | Black Rim Package XDSDPS - XDSXRS | 1 |
| 1 | 705401678 | Black, Rim Package XXC | 1 |
| 1 | 705401564 | Black Front Rim Package XDSSTD | 1 |
| 16 | 250000787 | Hex. Flange Screw M6 X 25 Package XXC | 16 |
| 16 | 250000787 | Hex. Flange Screw M6 X 25 Package XDSDPS | 16 |
| 2 | 705400193 | Rim Valve With Cap | 2 |
| 1 | 705401586 | Manta Green, Reinforcement Disk Package XDSDPS Black Carbon | 1 |
| 1 | 705401586 | Manta Green, Reinforcement Disk Package XDSDPS Quarry Gray | 1 |
| 1 | 705401586 | Manta Green, Reinforcement Disk Package XDSDPS Black | 1 |
| 1 | 705401695 | Blue Painted Reinforcement Disk Package XXC Quarry Gray | 1 |
| 2 | 705401702 | Blue Reinforcement Disk Package XDSDPS Black | 2 |
| 2 | 705401702 | Blue Reinforcement Disk Package XDSDPS Silver | 2 |
| 1 | 705401816 | Red Panted Reinforcement Disc Package XXC White | 1 |
| 1 | 705401837 | Red, Reinforcement Disk Package XDSXRS Black Carbon | 1 |
| 16 | 293450317 | Insert Package XXC | 16 |
| 16 | 293450317 | Insert Package XDSDPS | 16 |
| 1 | 705401349 | Circlip Joint | 1 |
| 1 | 705401769 | Shim | 1 |
| 1 | 705401770 | Shim | 1 |
