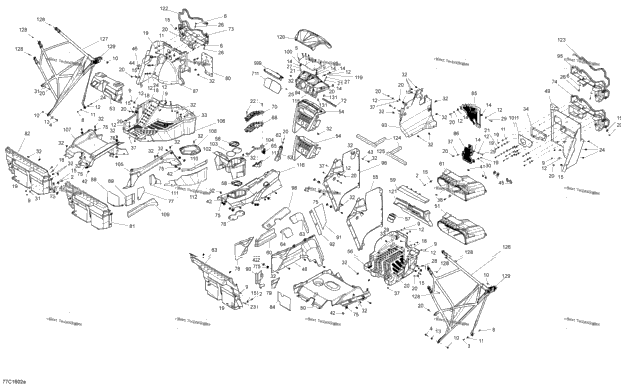

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 205951046 | Socket Head Screw M5 X 10 Europe Model | 2 |
| 2 | 207662034 | Hex. Flange Screw M6 X 20 | 2 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
| 2 | 207682534 | Hex. Flange Screw M8 X 25 | 2 |
| 1 | 210262050 | Hexagonal Head Screw Package XMR | 1 |
| 1 | 224060201 | Flat Washer | 1 |
| 3 | 233251494 | Elastic Flange Nut M5 Package XMR | 3 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 7 | 233261494 | Hex. Elastic Flange Nut M6 | 7 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 9 | 234062410 | Flat Washer 6 mm Except Package XMR | 9 |
| 2 | 234062410 | Flat Washer 6 mm | 2 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 2 | 250000048 | Panel Nut M6 X 1.0 | 2 |
| 1 | 250000577 | Torx Truss Screw K40 X 12 Package XDS | 1 |
| 1 | 250000578 | Torx Truss Screw M5 X 16, T25 Package XDS | 1 |
| 2 | 250000712 | Torx Screw M6 X 20 | 2 |
| 1 | 250000720 | Torx Screw K50 X 16 | 1 |
| 1 | 250000722 | Torx Screw M6 X 20 | 1 |
| 2 | 250000724 | Torx Screw M5 X 20 | 2 |
| 2 | 250000728 | Torx Screw M6 X 25 | 2 |
| 1 | 250000755 | Torx Screw M6 X 16 | 1 |
| 3 | 250000758 | Torx Screw M6 X 25 | 3 |
| 4 | 250000759 | Torx-Truss Pt K40 X 16 Package XMR | 4 |
| 1 | 250000760 | Torx Screw Truss Head K50X20 T20 | 1 |
| 2 | 250000762 | Torx Screw M5 X 25 Package XMR | 2 |
| 2 | 250000807 | Torx Truss Screw M6 X 25 | 2 |
| 2 | 250000843 | Torx Truss Screw M6 X 30 | 2 |
| 1 | 250200025 | Washer M5 | 1 |
| 2 | 250200040 | Flat Washer | 2 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 1 | 293250242 | Rubber Cover | 1 |
| 1 | 293250252 | Upper Seal Except Package XMR | 1 |
| 1 | 293250253 | Bottom Seal Except Package XMR | 1 |
| 1 | 293450268 | Insert M5 X 0.8 | 1 |
| 293450274 | Insert | ||
| 1 | 293830005 | Rubber Bumper | 1 |
| 1 | 390401400 | Rivet Engine 1000R Europe Model | 1 |
| 1 | 391301000 | WASHER Engine 1000R Europe Model | 1 |
| 3 | 414859400 | CAP | 3 |
| 6 | 503189273 | Washer | 6 |
| 2 | 506151252 | Washer | 2 |
| 1 | 517302785 | Edge Clip | 1 |
| 4 | 705003668 | Oblong Grommet | 4 |
| 1 | 705003841 | Support Plate | 1 |
| 1 | 707000666 | Padlock with Key Europe Model | 1 |
| 1 | 707900002 | RH Side Console | 1 |
| 1 | 707900004 | RH Front Floor | 1 |
| 1 | 707900006 | RH Under Seat Plate | 1 |
| 1 | 707900009 | Storage Bin Except Package XMR | 1 |
| 1 | 707900011 | Passenger Handle | 1 |
| 1 | 715001250 | Dashboard Ass'y | 1 |
| XXXX | Not Available As Spare Part - Central Dashboard Ass'y | ||
| 1 | 715002178 | Central Dashboard Ass'y Except Package XMR | 1 |
| 1 | 715002187 | Central Dashboard Ass'y Package XMR | 1 |
| 1 | 707900021 | RH Fixe Side Console Except Package XMR | 1 |
| 1 | 707900023 | RH Lower Floor | 1 |
| 1 | 707900031 | Latch | 1 |
| 2 | 707900036 | Cup Retainer | 2 |
| 1 | 707900038 | Trim Glove Box | 1 |
| 1 | 707900045 | RH Lateral Console Foam | 1 |
| 1 | 707900046 | Storage Bin Package XMR | 1 |
| 1 | 707900048 | Connector Tube | 1 |
| 1 | 707900055 | RH Lateral Console Foam | 1 |
| 1 | 707900056 | RH Lateral Console Foam | 1 |
| 1 | 707900060 | CAP Europe Model | 1 |
| 1 | 707900062 | Trim Glove Box | 1 |
| XXXX | Not Available As Spare Part - Lever Indicator | ||
| 1 | 707900070 | Lever Indicator Engine 1000R North America Model | 1 |
| 1 | 707900070 | Lever Indicator Engine 1000R International Model | 1 |
| 1 | 707900071 | Lever Indicator Engine 1000R Europe Model | 1 |
| 1 | 707900088 | Shift Lever Indicator Engine 1000T North America Model | 1 |
| 1 | 707900088 | Shift Lever Indicator Engine 1000T International Model | 1 |
| 1 | 707900088 | Shift Lever Indicator Package XDS | 1 |
| 1 | 707900104 | GPS Cover And Radio Control Package XMR | 1 |
| 1 | 219704353 | Was 271000110 Protection Trim Package XMR | 1 |
| 1 | 707900113 | LH FLOOR SUPPORT | 1 |
| 1 | 707900114 | RH Floor Support Except Package XMR | 1 |
| 6 | 707900133 | Insert | 6 |
| 1 | 707900145 | Heat Sheet Engine 1000R | 1 |
| 1 | 707900146 | Heat Sheet | 1 |
| 1 | 707900147 | Heat Sheet | 1 |
| 1 | 707900148 | Heat Sheet | 1 |
| 1 | 707900152 | DEFLECTOR Package STD - XDS | 1 |
| 1 | 707900204 | Deflector Except Package STD and XDS | 1 |
| 1 | 707900164 | LH Rear Deflector | 1 |
| 1 | 707900164 | LH Rear Deflector Package XMR | 1 |
| 1 | 707900166 | DEFLECTOR_BODY PANEL REAR R | 1 |
| 1 | 707900167 | Heat Shield | 1 |
| 1 | 707900178 | Grille | 1 |
| 1 | 707900180 | Grille | 1 |
| 1 | 707900181 | LH Front Floor | 1 |
| 1 | 707900182 | Heat Shield | 1 |
| 1 | 707900183 | Heat Shield | 1 |
| 1 | 707900184 | Heat Shield | 1 |
| 1 | 707900190 | Heat Sheet | 1 |
| 1 | 707900191 | Heat Sheet | 1 |
| 1 | 707900193 | Front Side Dash Panel | 1 |
| 1 | 707900199 | Upper Central Console Ass'y Package XMR | 1 |
| 1 | 707900202 | RH Floor Support Package XMR | 1 |
| 1 | 707900203 | RH FIXE SIDE CONSOLE Package XMR | 1 |
| 1 | 707900214 | Front Central Console Foam Engine 1000R | 1 |
| 1 | 707900215 | CENTRAL FILTER Package XMR | 1 |
| 1 | 707900216 | DASHBOARD COVER Package XMR | 1 |
| 1 | 707900217 | Hose Support Package XMR | 1 |
| 1 | 707900278 | REAR LOWER CONSOLE Engine 1000T | 1 |
| 1 | 707900302 | HEAT SHEET Engine 1000T | 1 |
| 1 | 707900303 | LOCK SUPPORT Engine 1000R Europe Model | 1 |
| 1 | 707900376 | LOCK SUPPORT ASS'Y Package XDS | 1 |
| 1 | 707900308 | PANEL_CONSOLE LWR L Engine 1000T | 1 |
| 1 | 707900001 | LH Side Console Engine 1000R | 1 |
| 1 | 707900022 | LH Lower Floor Engine 1000R | 1 |
| 1 | 707900309 | LH Lower Floor Engine 1000T | 1 |
| 1 | 707900310 | LH Under Seat Plate Engine 1000T | 1 |
| 1 | 707900218 | LH Under Seat Plate Engine 1000R | 1 |
| 1 | 707900311 | Floor Cap Engine 1000T | 1 |
| 1 | 707900312 | LH Upper Lateral Console Foam Engine 1000T | 1 |
| 1 | 707900043 | LH Upper Lateral Console Foam Engine 1000R | 1 |
| 1 | 707900044 | LH Lower Lateral Console Foam Engine 1000R | 1 |
| 1 | 707900313 | HEAT SHEET Engine 1000T | 1 |
| 1 | 707900149 | Heat Sheet Engine 1000R | 1 |
| 1 | 707900314 | HEAT SHEET Engine 1000T | 1 |
| 1 | 707900150 | Heat Sheet Engine 1000R | 1 |
| 1 | 707900315 | HEAT SHEET Engine 1000T | 1 |
| 1 | 707900151 | Heat Sheet Engine 1000R | 1 |
| 1 | 707900373 | PADLOCK TRIM Package XDS | 1 |
| 1 | 715003355 | Console Kit Engine 1000R Except Europe Model, Except XMR | 1 |
| 1 | 715003359 | CONSOLE KIT Engine 1000R Europe Model | 1 |
| 1 | 715003368 | CONSOLE KIT Engine 1000T Except Europe Model | 1 |
| 715003006 | CONSOLE KIT Engine 1000T Europe Model | ||
| 1 | 715003362 | Console Kit Package XMR | 1 |
| 1 | 210262550 | Hex. Flange Forming Screw M6 X 25 Package XMR | 1 |
| 1 | 707900283 | DASHBOARD CAP Package XMR Digital Camo & Manta Green | 1 |
| 1 | 707900368 | -Red Dash Cap Package XMR White | 1 |
| 1 | 707900369 | BLUE DASH CAP Package XMR Silver | 1 |
| 1 | 707900221 | Luggage Cover Kit | 1 |
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 1 | 219704382 | Was 293250381 Seal Tray | 1 |
| 1 | 707900238 | Front RH Safety Net Include Buckle 715900398 | 1 |
| 1 | 707900237 | Front LH Safety Net Include Buckle 715900398 | 1 |
| 6 | 250000742 | Torx Screw M5 X 14 | 6 |
| 1 | 715900398 | Buckle | 1 |
| 3 | 732610072 | Push Nut Package XMR | 3 |
| 2 | 250000079 | Panel Nut M5 X 0.8 | 2 |
