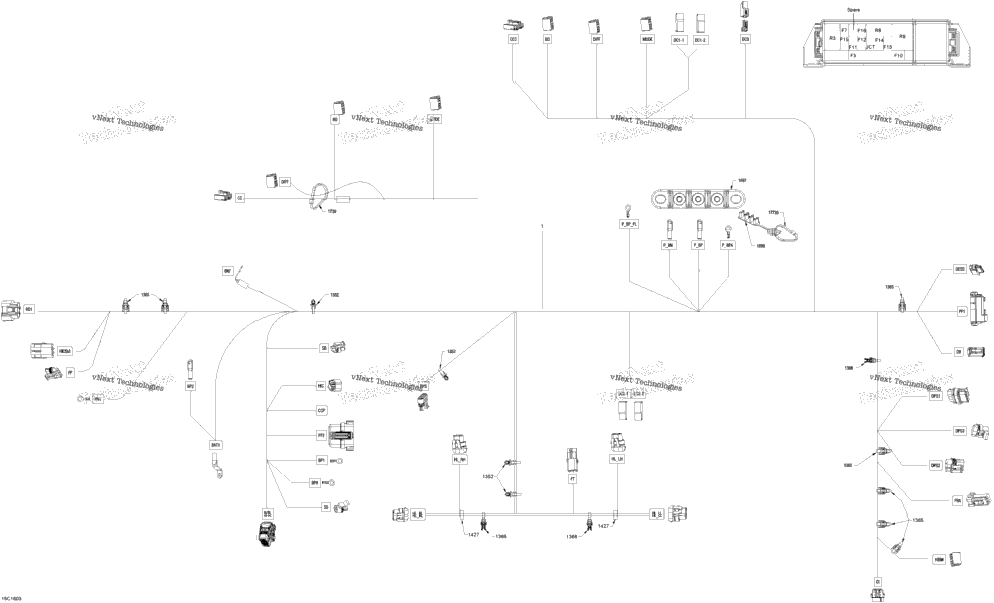

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 710004457 | Harness Ass'y | 1 |
| 1 | 710001588 | Female Terminal Housing, 48 Circuits | 1 |
| 1 | 710001589 | Female Terminal | 1 |
| 1 | 710001591 | Cover, 48 positions | 1 |
| 1 | 710001592 | Plug | 1 |
| 1 | 710001593 | Plug | 1 |
| 1 | 710001727 | Female Terminal | 1 |
| 1 | 710000519 | Open Barrel | 1 |
| 1 | 710001829 | Protector Cap | 1 |
| 710002576 | Heat Shrink | ||
| 1 | 710001931 | Terminal | 1 |
| 1 | 710002000 | Housing | 1 |
| 1 | 710003047 | Terminal | 1 |
| 1 | 710003048 | Terminal | 1 |
| 1 | 710000913 | Terminal | 1 |
| 710002577 | Heat Shrink | ||
| 710000508 | Open Barrel | ||
| 1 | 278000992 | Open Barrel | 1 |
| 710002588 | Heat Shrink Tubing | ||
| 278002266 | Rubber Boot | ||
| 1 | 710000518 | Open Barrel | 1 |
| 710002589 | Heat Shrink | ||
| 1 | 710000848 | Lock | 1 |
| 1 | 710000849 | Male Housing, 6 Circuits | 1 |
| 1 | 710001635 | Terminal | 1 |
| 1 | 278001665 | Female Terminal | 1 |
| 1 | 515175801 | Female Housing, 24 Circuits | 1 |
| 1 | 515175802 | Retainer Block | 1 |
| 1 | 515175803 | Wire Seal | 1 |
| 1 | 515175812 | Plug | 1 |
| 1 | 710000399 | Female Housing | 1 |
| 1 | 710001131 | Female Terminal | 1 |
| 1 | 278000632 | Female Terminal | 1 |
| 1 | 278002896 | Housing, 6 Circuits | 1 |
| 1 | 293000052 | Sealing Cap | 1 |
| 1 | 515175678 | Male Wedge, 6 Circuits | 1 |
| 1 | 409010400 | Female Terminal Housing, 1 Circuit | 1 |
| 1 | 409010600 | FEMALE TERMINAL | 1 |
| 1 | 515175231 | Female Terminal | 1 |
| 1 | 515175658 | Female Housing, 2 Circuits | 1 |
| 1 | 710001114 | Cap | 1 |
| 1 | 710001161 | Housing | 1 |
| 1 | 710001162 | Lock | 1 |
| 1 | 710001163 | Wire Seal | 1 |
| 1 | 710001164 | Female Terminal | 1 |
| 1 | 710001225 | Cap | 1 |
| 1 | 278001325 | Fuse Holder | 1 |
| 1 | 278001326 | Fuse Holder Cap | 1 |
| 1 | 710000113 | Female Terminal | 1 |
| 1 | 710001157 | Housing | 1 |
| 1 | 710001323 | Lock | 1 |
| 710002700 | Terminal | ||
| 710002701 | Wire Seal | ||
| 1 | 710001047 | Fuse, 40 AMP | 1 |
| 1 | 710000746 | Little Fuse, 20 Amperes | 1 |
| 1 | 710000744 | Little Fuse, 10 Amperes | 1 |
| 1 | 710000747 | Little Fuse, 30 Amperes | 1 |
| 1 | 710002590 | Fuse, 25 Amps | 1 |
| 1 | 715002536 | Fuse Link 21-30AMP | 1 |
| 1 | 715002538 | Fuse Link 41-50AMP | 1 |
| 1 | 278001013 | Wire Seal | 1 |
| 1 | 278001014 | Female Terminal | 1 |
| 1 | 409209700 | Female Housing, 4 Circuits | 1 |
| 1 | 515176621 | Wire Seal | 1 |
| 1 | 710001340 | Female Terminal | 1 |
| 1 | 710003896 | Female Terminal | 1 |
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 1 | 278000218 | Wire Seal | 1 |
| 1 | 409004300 | Male Terminal | 1 |
| 1 | 710000992 | Clip | 1 |
| 710000766 | Terminal | ||
| 1 | 710001221 | LOCK | 1 |
| 1 | 710001228 | Terminal | 1 |
| 1 | 710001229 | Terminal | 1 |
| 1 | 710001233 | Seal | 1 |
| 1 | 710001332 | Seal Wire | 1 |
| 1 | 710001928 | Housing | 1 |
| 1 | 278000222 | Male Terminal | 1 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 1 | 278001065 | Wire Seal | 1 |
| 1 | 293650187 | Clip | 1 |
| 1 | 278002578 | Female Terminal | 1 |
| 1 | 710001427 | Wire Seal | 1 |
| 1 | 710002578 | Housing | 1 |
| 1 | 710002584 | Lock | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 1 | 710004825 | 3-Positions Pole | 1 |
| 1 | 710004826 | Cover | 1 |
| 710002713 | Tie-Rap, 100mm | ||
| 710002714 | Tie-Rap | ||
| 1 | 710002899 | Clip Tie-Rap | 1 |
| 710004184 | Open Barrel | ||
| 1 | 278001392 | Open Barrel Terminal | 1 |
| 1 | 710004854 | COVER | 1 |
| 1 | 710004855 | COVER | 1 |
| 1 | 710004921 | FUSE BOX DECAL | 1 |
| 1 | 710004973 | FUSEOBX | 1 |
| 1 | 710004975 | Lock | 1 |
| 1 | 710004976 | LOCK | 1 |
| 1 | 710004977 | Lock | 1 |
| 1 | 710004978 | LOCK | 1 |
| XXXX | Not Available As Spare Part - Terminal | ||
| 1 | 278000216 | Wire Seal | 1 |
| 1 | 278002824 | Case Ass'y with seal, 24 positions | 1 |
| 1 | 515177451 | Fuse Box Cover | 1 |
| 1 | 710000918 | Female Terminal | 1 |
| 1 | 278002299 | Female Terminal Housing 6 Circuits | 1 |
| 1 | 710001119 | Female Terminal | 1 |
| 1 | 515176774 | Relay, 30 AMP | 1 |
| 1 | 710001778 | Relay | 1 |
| 1 | 710003143 | 50 Amps Relay | 1 |
| 1 | 715900135 | Relay | 1 |
| 1 | 710004974 | Relay | 1 |
| 1 | 710000879 | Female Housing, 3 Circuits | 1 |
| 1 | 710000882 | Cap | 1 |
| 1 | 710001932 | Seal | 1 |
| 1 | 710001934 | Terminal | 1 |
| 1 | 278001482 | Seal | 1 |
| 1 | 710001134 | Female Terminal | 1 |
| 1 | 710002043 | Lock | 1 |
| 1 | 710002177 | Housing | 1 |
| 1 | 515177192 | Female Housing, 2 Circuits | 1 |
| 1 | 710001153 | Seal Wire | 1 |
