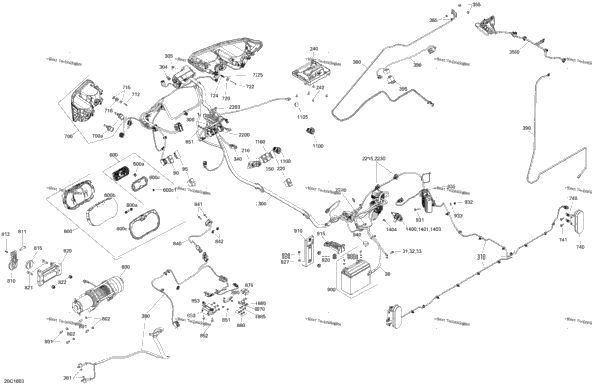

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 710005512 | Negative Cable | 1 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 2 | 234461608 | External Serrated Lock Washer 6 mm | 2 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 1 | 710004492 | Light Switch | 1 |
| 1 | 710002052 | Switch Winch Winch Equiped model | 1 |
| 1 | 710004814 | 2 X 4 Switch | 1 |
| 1 | 710004783 | Differential Lock Switch Except Package Base | 1 |
| 1 | 710004198 | Ignition Switch With Keys | 1 |
| 1 | 710004532 | Driving Mode Switch Winch Equipped Model | 1 |
| 2 | 710001999 | Plug Carling Without Winch Model | 2 |
| 1 | 710004741 | Housing Support | 1 |
| 5 | 243141630 | Hex. Plastic Screw M4.8 X 16 | 5 |
| 1 | 710004457 | Harness Ass'y | 1 |
| 2 | 250000048 | Panel Nut M6 X 1.0 | 2 |
| 2 | 207562044 | Flange Screw M6 X 20, Scotch Grip | 2 |
| 2 | 243141630 | Hex. Plastic Screw M4.8 X 16 | 2 |
| 1 | 710004458 | Rear Harness | 1 |
| XXXX | Not Available As Spare Part - Non Applicable | ||
| 1 | 710004465 | Winch Harness Winch Equipped Model | 1 |
| 2 | 232561434 | Elastic Stop Nut M6 Winch Equipped Model | 2 |
| 1 | 710005208 | Speedometer | 1 |
| 1 | 715900265 | Button | 1 |
| 1 | 710001183 | Trim Ring Ass'y | 1 |
| 1 | 704901270 | BRP Logo 13 mm | 1 |
| 1 | 710003964 | LH Headlignt | 1 |
| 1 | 710003965 | RH Headlignt | 1 |
| 2 | 219800149 | Halogen Bulb H8 12V 35W | 2 |
| 4 | 241142560 | Hex. Flange Screw K40 X 25 | 4 |
| 8 | 710004749 | Shoulder Bushing | 8 |
| 4 | 293720053 | Grommet | 4 |
| 2 | 572106600 | Handle | 2 |
| 2 | 250000718 | Hex. Screw K40 X 45 | 2 |
| 2 | 517168600 | Spring | 2 |
| 2 | 234042600 | Flat Washer 4 mm, Stainless | 2 |
| 2 | 710004497 | Tail Light | 2 |
| 4 | 207562044 | Flange Screw M6 X 20, Scotch Grip | 4 |
| 4 | 250000048 | Panel Nut M6 X 1.0 | 4 |
| 1 | 710004818 | Winch Winch Equipped Model | 1 |
| 4 | 205082544 | Socket Head Screw M8 X 25 Winch Equipped Model | 4 |
| 4 | 234181401 | Lock Washer 8 mm Winch Equipped Model | 4 |
| 1 | 715003523 | Hook and Strap kit Winch Equipped Model | 1 |
| 1 | 710005142 | Winch Cable Stopper Winch Equipped Model | 1 |
| 1 | 710004822 | Winch Cable Guide Winch Equipped Model | 1 |
| 2 | 205003044 | Socket Screw M10 x 30 Winch Equipped Model | 2 |
| 2 | 233201414 | Hex. Flange Elastic Nut M10 Winch Equipped Model | 2 |
| 1 | 710004823 | Winch Remote Connector Winch Equipped Model | 1 |
| 2 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip Winch Equipped Model | 2 |
| 2 | 250000079 | Panel Nut M5 X 0.8 Winch Equipped Model | 2 |
| 710004824 | Winch Solenoid Winch Equipped Model | ||
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 1 | 710004772 | Power Bar Winch Equipped Model | 1 |
| 1 | 710004872 | Power Bar Winch Equipped Model | 1 |
| 1 | 710004873 | Power Bar Winch Equipped Model | 1 |
| 2 | 710004875 | 50 AMP Breaker Winch Equipped Model | 2 |
| 4 | 250100071 | Hex. Flange Nut M5 Winch Equipped Model | 4 |
| 4 | 234161601 | Lock Washer Helical M6 Winch Equipped Model | 4 |
| 1 | 410301203 | Battery Ass'y, 18 Amperes | 1 |
| 1 | 250000282 | Battery Bolt Kit | 1 |
| 1 | 710004788 | Fixation Plate | 1 |
| 1 | 710004789 | Fixation Plate | 1 |
| 4 | 705003666 | Rubber Grommet | 4 |
| 1 | 207562054 | Hex. Flange Screw S.GRIP M6 X 20 | 1 |
| 1 | 234062410 | Flat Washer 6 mm | 1 |
| 1 | 710001191 | Voltage Regulator | 1 |
| 1 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 1 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 2 | 234062410 | Flat Washer 6 mm | 2 |
| 3 | 708001827 | Rubber Stopper | 3 |
| 1 | 710001248 | DC Outlet | 1 |
| 1 | 710004993 | Cap | 1 |
| 1 | 278003012 | Starter Relay | 1 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 2 | 232061600 | Hex. Nut M6 | 2 |
| 1 | 243141630 | Hex. Plastic Screw M4.8 X 16 | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 293750058 | 2-Pieces Fixing Tie Rap for Edges | 1 |
| 1 | 710005180 | Tie-Rap Clip | 1 |
| 1 | 210261650 | Hex. Flange Screw M6 X 16 Engine 800 | 1 |
