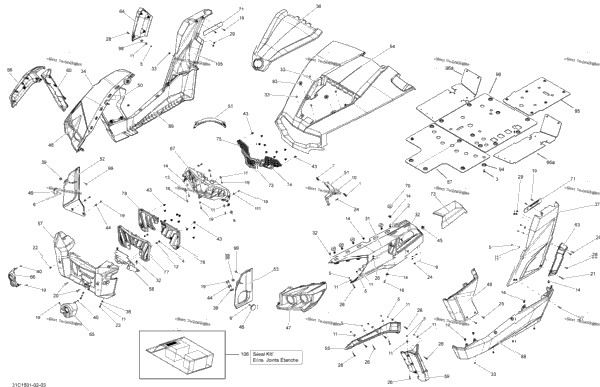

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 207661644 | Hex. Flange Screw M6 X 16 | 4 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 24 | 210262080 | Hex. Forming Screw M6 X 20 | 24 |
| 2 | 232081414 | Hex. Nut M8 | 2 |
| 1 | 232561434 | Elastic Stop Nut M6 | 1 |
| 2 | 233251414 | Hex. Flange Elastic Nut M5 | 2 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 4 | 234051410 | Flat Washer M5 | 4 |
| 4 | 234061600 | Stainless Flat Washer M6 | 4 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 2 | 234081410 | Flat Washer 8 mm | 2 |
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 15 | 250000048 | Panel Nut M6 X 1.0 | 15 |
| 4 | 250000128 | Torx Truss Screw M6 X 20 | 4 |
| 1 | 250000146 | Truss Head Torx Screw K50 X 16 | 1 |
| 250000197 | Torx Truss Screw M8 X 30 | ||
| 1 | 250000215 | Torx Screw M6 X 45 | 1 |
| 4 | 250000261 | Torx Screw M6 X 16 | 4 |
| 8 | 250000297 | Truss Head Torx Screw K50 X 20 | 8 |
| 1 | 250000350 | Torx Truss Screw M6 X 20 | 1 |
| 1 | 250000371 | Torx Screw M6 X 30 Stainless | 1 |
| 2 | 250000398 | Torx Truss Screw M6 X 30 | 2 |
| 7 | 250000488 | Torx Truss Screw M6 X 20 Model-XT Except Europe | 7 |
| 1 | 705006768 | FENDER FL B-005 Model-Camo | 1 |
| 1 | 705006774 | FENDER FL B-341 Model-White | 1 |
| 1 | 705008194 | YELLOW LH FRONT FENDER Model-XT/DPS Yellow | 1 |
| 1 | 705008196 | VIPER RED LH FRONT FENDER Model-Red | 1 |
| 1 | 705008232 | QUARRY GRAY LH FRONT FENDER Model-Quarry Gray | 1 |
| 1 | 293150089 | Tuflok Plastic Rivet | 1 |
| 14 | 293150104 | Pop Rivet 3/16" | 14 |
| 1 | 705006769 | FENDER FR B-005 Model-Camo | 1 |
| 1 | 705006775 | White RH Front Fender Model-White | 1 |
| 1 | 705008195 | YELLOW RH FRONT FENDER Model-XT/DPS Yellow | 1 |
| 1 | 705008197 | VIPER RED RH FRONT FENDER Model-Red | 1 |
| 1 | 705008233 | Quarry Gray RH Front Fender Model-Quarry Gray | 1 |
| 1 | 705007075 | HOOD B-005 Model-Camo | 1 |
| 1 | 705007077 | White Removable Hood Model-White | 1 |
| 1 | 705008184 | HOOD B-190 Model-XT/DPS Yellow | 1 |
| 1 | 705008185 | Viper Red Removable Hood Model-Red | 1 |
| 1 | 705008237 | Quarry Gray Removable Hood Model-Quarry Gray | 1 |
| 1 | 705006122 | PANEL_BODY REAR L B-005 Model-Camo | 1 |
| 1 | 705006744 | PANEL_BODY REAR L B-341 Model-White | 1 |
| 1 | 705007864 | YELLOW LH REAR LATERAL PANEL Model-XT/DPS Yellow | 1 |
| 1 | 705007874 | VIPER RED LH REAR LATERAL PANEL Model-Red | 1 |
| 1 | 705008369 | QUARRY GRAY LH REAR LATERAL PANEL Model-Quarry Gray | 1 |
| 293450274 | Insert | ||
| 6 | 293720053 | Grommet | 6 |
| 2 | 389804300 | Push Nut | 2 |
| 31 | 517302785 | Edge Clip | 31 |
| 4 | 517303439 | Knob | 4 |
| 1 | 517303756 | Grommet | 1 |
| 2 | 705002409 | Amber Reflector | 2 |
| 1 | 705002885 | LH Front Facia | 1 |
| 1 | 705002886 | RH Front Facia | 1 |
| 1 | 705006037 | White LH Front Lateral Pannel Model-White | 1 |
| 1 | 705006378 | PANEL_BODY FL B-005 Model-Camo | 1 |
| 1 | 705007846 | YELLOW LH FRONT LATERAL PANNEL Model-XT/DPS Yellow | 1 |
| 1 | 705007851 | Viper Red LH Front Lateral Pannel Model-Red | 1 |
| 1 | 705008239 | QUARRY GRAY LH FRONT LATERAL PANNEL Model-Quarry Gray | 1 |
| 1 | 705006059 | PANEL_BODY FR B-341 Model-White | 1 |
| 1 | 705006379 | PANEL_BODY FR B-005 Model-Camo | 1 |
| 1 | 705007845 | YELLOW RH FRONT LATERAL PANNEL Model-XT/DPS Yellow | 1 |
| 1 | 705007852 | VIPER RED RH FRONT LATERAL PANNEL Model-Red | 1 |
| 1 | 705008240 | Quarry Gray RH Front Lateral Pannel Model-Quarry Gray | 1 |
| 2 | 705002891 | Facia Front Support | 2 |
| 1 | 705002894 | RH Deflector | 1 |
| 1 | 705002895 | LH Deflector Model-STD, DPS | 1 |
| 1 | 705005113 | LH Deflector Model-XT | 1 |
| 1 | 705004380 | HOOD B-005 Model-Camo | 1 |
| 705006036 | HOOD B-341 Model-White | ||
| 1 | 705008187 | HOOD B-190 Model-XT/DPS Yellow | 1 |
| 1 | 705008188 | HOOD B-176 Model-Red | 1 |
| 1 | 705008235 | HOOD B-365 Model-Quarry Gray | 1 |
| 1 | 705008666 | Black, LH Upper Front Mudguard Package XT/XTp | 1 |
| 1 | 705008667 | Black, RH Upper Front Mudguard Package XT/XTp | 1 |
| 1 | 705008689 | Black Front Facia Model-STD Europe | 1 |
| 1 | 705008690 | Black Front Facia Model-XT/XTp Except Europe | 1 |
| 1 | 705008691 | Black Front Facia Model-STD/DPS Europe | 1 |
| 1 | 705008692 | Black Front Facia Model-XT/XTp Europe | 1 |
| 1 | 705003399 | Bottom Deflector | 1 |
| 1 | 705008668 | Black, LH Lower Mudguard | 1 |
| 1 | 705008669 | Black, RH Lower Mudguard | 1 |
| 1 | 705008670 | Black, LH Rear Lower Mudguard | 1 |
| 1 | 705008672 | RH Rear Lower Black Mudguard | 1 |
| 1 | 705008676 | LH FLASHER CAP Model Europe | 1 |
| 1 | 705008677 | RH FLASHER CAP Model Europe | 1 |
| 1 | 705003629 | FASCIA UP B-160 | 1 |
| 12 | 705003841 | Support Plate | 12 |
| 2 | 705007916 | Support Skid Plate | 2 |
| 1 | 705004336 | Center Upper Facia Protector | 1 |
| 1 | 705004382 | CAMO CVT INLET COVER Model-Camo | 1 |
| 1 | 705006054 | COVER_AIR INLET FL B-341 Model-White | 1 |
| 1 | 705008190 | Yellow CVT Inlet Cover Model-XT/DPS Yellow | 1 |
| 1 | 705008191 | VIPER RED CVT INLET COVER Model-Red | 1 |
| 1 | 705008234 | Quarry Gray CVT Inlet Cover Model-Quarry Gray | 1 |
| 1 | 705004350 | LH Upper Facia Protector | 1 |
| 1 | 705004351 | RH Upper Facia Protector | 1 |
| 1 | 705004755 | Lower Front Facia Protector | 1 |
| 1 | 705004819 | LH Lower Rear Facia Protector | 1 |
| 1 | 705004820 | RH Lower Rear Facia Protector | 1 |
| 2 | 705005156 | Oval Washer | 2 |
| 1 | 705007055 | Middle Protector Plate | 1 |
| 1 | 705006991 | LH Lateral Middle Panel Model-STD, DPS | 1 |
| 1 | 705006993 | LH Middle Side Pannel Model-XT | 1 |
| 1 | 705006992 | RH Lateral Middle Panel Model-STD, DPS | 1 |
| 1 | 705006994 | RH Middle Side Pannel Model-XT | 1 |
| 22 | 705007171 | Cup | 22 |
| 1 | 705007227 | Rear Protector Plate | 1 |
| 1 | 705007056 | Rear Protector Plate | 1 |
| 2 | 705007038 | RH Lateral Skid Plate | 2 |
| 1 | 250200086 | Flat Washer | 1 |
| 2 | 708000759 | Rubber Stopper | 2 |
| 1 | 705006123 | PANEL_BODY REAR R B-005 Model-Camo | 1 |
| 1 | 705006745 | White RH Rear Lateral Pannel Model-White | 1 |
| 1 | 705007865 | Yellow RH Rear Lateral Panel Model-XT/DPS Yellow | 1 |
| 1 | 705007875 | VIPER RED RH REAR LATERAL PANEL Model-Red | 1 |
| 1 | 705008370 | Quarry Gray RH Rear Lateral Panel Model-Quarry Gray | 1 |
| 705008208 | Seal Kit |
