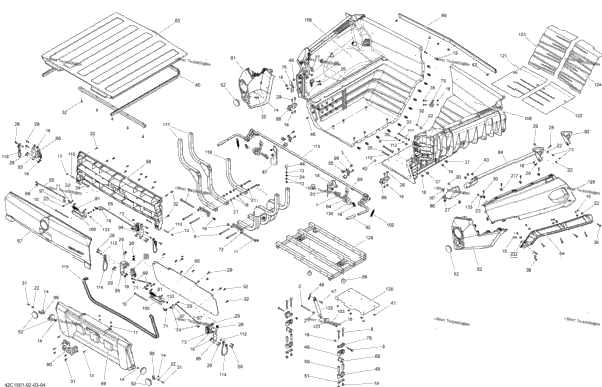

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 207066544 | Hex. Screw M6 X 65 | 4 |
| 1 | 207069044 | Hex. Screw M6 X 90 | 1 |
| 4 | 207661644 | Hex. Flange Screw M6 X 16 | 4 |
| 13 | 207662044 | Hex. Flange Screw M6 X 20 | 13 |
| 2 | 207665044 | Hex. Flange Screw M6 X 50 | 2 |
| 4 | 207669584 | Hex. Flange Screw M6 X 95 | 4 |
| 4 | 207684586 | Hex. Flange Screw M8 X 45 | 4 |
| 4 | 207787044 | Carriage Bolt M8 X 70 | 4 |
| 2 | 224061121 | Flat Washer | 2 |
| 2 | 230663084 | Hex. Flange Screw M6 X 130 | 2 |
| 2 | 230683034 | Hex. Flange Screw M8 X 130 | 2 |
| 6 | 232180600 | Hex. Jam Nut M8 | 6 |
| 8 | 232361493 | Domed Nut M6 | 8 |
| 4 | 232551414 | Elastic Stop Nut M5 | 4 |
| 14 | 232561434 | Elastic Stop Nut M6 | 14 |
| 8 | 233251434 | Flange Elastic Nut M5 | 8 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 10 | 233281414 | Hex. Flange Elastic Nut M8 | 10 |
| 4 | 234061410 | Flat Washer 6 mm | 4 |
| 13 | 234062410 | Flat Washer 6 mm | 13 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 2 | 234081100 | Flat Washer 8 mm, Nylon | 2 |
| 2 | 234181401 | Lock Washer 8 mm | 2 |
| 4 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 | 4 |
| 2 | 250000048 | Panel Nut M6 X 1.0 | 2 |
| 12 | 250000079 | Panel Nut M5 X 0.8 | 12 |
| 1 | 250000128 | Torx Truss Screw M6 X 20 | 1 |
| 16 | 250000129 | Torx Screw M6 X 16 | 16 |
| 12 | 250000130 | Torx Screw M5 X 20 | 12 |
| 10 | 250000145 | Torx Screw M5 X 14 | 10 |
| 1 | 250000146 | Truss Head Torx Screw K50 X 16 | 1 |
| 4 | 250000215 | Torx Screw M6 X 45 | 4 |
| 2 | 250000239 | Torx Truss Screw M6 X 50 | 2 |
| 12 | 250000284 | Torx Screw M6 x 25 | 12 |
| 14 | 250000371 | Torx Screw M6 X 30 Stainless | 14 |
| 4 | 269500725 | M6 Nut Housing Ass'y | 4 |
| 20 | 293150100 | Pop Rivet 3/16" | 20 |
| 1 | 219704451 | Was 293250240 Neoprene Seal | 1 |
| 6 | 293150103 | Pop Rivet 3/16" | 6 |
| 16 | 293150104 | Pop Rivet 3/16" | 16 |
| 6 | 293150190 | Pop Rivet 3/16 | 6 |
| 2 | 293720091 | Frame Rubber Bumper | 2 |
| 4 | 293830005 | Rubber Bumper | 4 |
| 1 | 414079100 | Pin | 1 |
| 1 | 414575600 | Hair Pin | 1 |
| 4 | 506150400 | Housing Half | 4 |
| 4 | 506150500 | Housing Bushing | 4 |
| 2 | 506150600 | Stopper Plate | 2 |
| 2 | 705002408 | Red Reflector | 2 |
| 1 | 705008671 | LH Upper Rear Mudguards | 1 |
| 1 | 705008673 | RH Upper Rear Mudguards | 1 |
| 4 | 705500033 | Half Ring | 4 |
| 2 | 708000884 | Rubber Stopper | 2 |
| 708301317 | DEEP PEWTER OUTSIDE TOP PANNEL | ||
| 1 | 708300672 | White Outside Top Pannel | 1 |
| 1 | 708300053 | Inside Top Pannel | 1 |
| 1 | 715001255 | Lower Panel Ass'y | 1 |
| 708300073 | INSIDE BOTTOM PANNEL | ||
| 1 | 708301383 | LH Rear Facia | 1 |
| 1 | 708301384 | RH Rear Facia | 1 |
| 1 | 708300131 | Separator Pannel Ass'y | 1 |
| 2 | 708300136 | Box Retainer | 2 |
| 2 | 708300160 | Top Rod | 2 |
| 2 | 708300162 | LH Latch | 2 |
| 2 | 708300164 | Lower Bottom Rod | 2 |
| 2 | 708300172 | Pivot Bushing | 2 |
| 4 | 708300182 | LH Tie Rod Clip | 4 |
| 4 | 708300183 | Retaining Plate | 4 |
| 4 | 708300184 | Activator | 4 |
| 2 | 708300185 | Bracket Pivot | 2 |
| 2 | 708300201 | RH Latch | 2 |
| 4 | 708300202 | RH Tie Rod Clip | 4 |
| 2 | 708300206 | Retaining Plate Support | 2 |
| 2 | 708300210 | Adjustable Stopper Plate | 2 |
| 2 | 708300219 | Spring | 2 |
| 1 | 708300333 | LH Painted Rail Cap | 1 |
| 1 | 708300334 | RH Painted Rail Cap | 1 |
| 1 | 708300231 | LH Welded Rail | 1 |
| 1 | 708300232 | RH Welded Rail | 1 |
| 1 | 708301380 | LH Rail Cover | 1 |
| 1 | 708301381 | RH Rail Cover | 1 |
| 1 | 708300278 | LH Latch Lever Support | 1 |
| 2 | 708300345 | Upper Pivot Support | 2 |
| 1 | 708301633 | Front Support | 1 |
| 2 | 708300349 | Plate Support | 2 |
| 1 | 708300351 | RH Latch Lever Support | 1 |
| 2 | 708300358 | Cap Latch Lever | 2 |
| 1 | 708300359 | LH Upper Support | 1 |
| 1 | 708300360 | RH Upper Support | 1 |
| 1 | 708300361 | LH Lower Support | 1 |
| 1 | 708300362 | RH Lower Support | 1 |
| 4 | 708300365 | Bushing | 4 |
| 2 | 708300367 | REFLECTOR SUPPORT | 2 |
| 2 | 708300392 | Clamp Reatiner | 2 |
| 2 | 708300398 | Handle | 2 |
| 2 | 708300454 | Spring | 2 |
| 1 | 708300470 | Spacer | 1 |
| 1 | 715002361 | Left Box Kit | 1 |
| 715002357 | RIGHT BOX KIT | ||
| 2 | 708300735 | Bushing | 2 |
| 4 | 708300736 | Spacer | 4 |
| 8 | 708300737 | Bushing | 8 |
| 1 | 708300751 | Cargo Handle Ass'y | 1 |
| 2 | 708300762 | Lower Retainer Cable | 2 |
| 2 | 708300763 | Upper Retainer Cable | 2 |
| 4 | 708300879 | Black Welded Lateral Support | 4 |
| 2 | 708300877 | Black Lateral Support | 2 |
| 1 | 708300780 | Heat Deflector | 1 |
| 1 | 708300809 | Heat Deflector Sheet | 1 |
| 1 | 708300810 | Heat Deflector Sheet | 1 |
| 1 | 708300811 | Heat Deflector Sheet | 1 |
| 1 | 708300812 | Heat Deflector Sheet | 1 |
| 1 | 708301315 | Deep Pewter LH Rear Fender | 1 |
| 1 | 708300840 | FENDER REAR L B-341 | 1 |
| 1 | 708301316 | Deep Pewter RH Rear Fender | 1 |
| 1 | 708300841 | White RH Rear Fender | 1 |
| 1 | 708300875 | Black Box Support | 1 |
| 2 | 708300902 | Spacer | 2 |
| 1 | 708301059 | Spacer | 1 |
| 1 | 708301136 | Gaz Shock | 1 |
| 4 | 732610072 | Push Nut | 4 |
