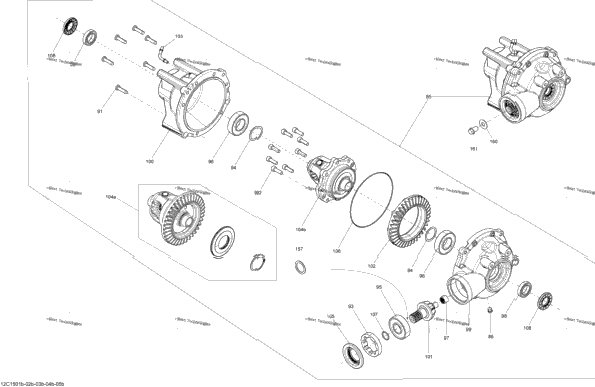

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705401488 | Front Differential Ass'y May 29, 2014 And Before | 1 |
| 1 | 705401511 | Front Differential Ass'y May 30, 2014 And After | 1 |
| 1 | 705500894 | Drain Plug May 29, 2014 And Before | 1 |
| 1 | 705501885 | Drain Plug May 30, 2014 And After | 1 |
| 6 | 705500892 | SCREW May 29, 2014 And Before | 6 |
| 6 | 705401601 | Screw May 30, 2014 And After | 6 |
| 8 | 705401602 | Screw May 30, 2014 And After | 8 |
| 1 | 705400661 | Nut May 29, 2014 And Before | 1 |
| 1 | 705401603 | Nut May 30, 2014 And After | 1 |
| 1 | 703500288 | Differential Shim Spool Kit May 29, 2014 And Before | 1 |
| 1 | 703500050 | Differential Shim Spool Kit May 29, 2014 And Before | 1 |
| 1 | 705401604 | Shim May 30, 2014 And After | 1 |
| 1 | 705500260 | Ball Bearing May 29, 2014 And Before | 1 |
| 1 | 705401605 | Ball Bearing May 30, 2014 And After | 1 |
| 2 | 705500259 | Ball Bearing May 29, 2014 And Before | 2 |
| 2 | 705401606 | Ball Bearing May 30, 2014 And After | 2 |
| 1 | 705500261 | Needle Bearing May 29, 2014 And Before | 1 |
| 1 | 705401607 | Needle Bearing May 30, 2014 And After | 1 |
| 2 | 293350044 | Ball Bearing May 29, 2014 And Before | 2 |
| 2 | 705401608 | Ball Bearing May 30, 2014 And After | 2 |
| 705401136 | FRONT COVER May 29, 2014 And Before | ||
| 1 | 705401609 | Front Cover May 30, 2014 And After | 1 |
| 1 | 705400762 | FRONT COVER May 29, 2014 And Before | 1 |
| 1 | 705401610 | Front Cover May 30, 2014 And After | 1 |
| 705501588 | 10 TEETH PINION May 29, 2014 And Before | ||
| 1 | 705401611 | PINION 10 TEETH May 30, 2014 And After | 1 |
| 1 | 705401612 | Gear 36 Teeth May 30, 2014 And After | 1 |
| 1 | 705500893 | VENT VALVE May 29, 2014 And Before | 1 |
| 1 | 705401613 | Vent Valve May 30, 2014 And After | 1 |
| 705400822 | DIFFERENTIAL May 29, 2014 And Before | ||
| 1 | 705401506 | Differential May 30, 2014 And After | 1 |
| 1 | 705401481 | Oil Seal May 29, 2014 And Before | 1 |
| 1 | 705401615 | Oil Seal May 30, 2014 And After | 1 |
| 1 | 705500265 | Seal May 29, 2014 And Before | 1 |
| 1 | 705401616 | Seal May 30, 2014 And After | 1 |
| 1 | 705500267 | O-Ring May 29, 2014 And Before | 1 |
| 1 | 705401617 | O'Ring May 30, 2014 And After | 1 |
| 2 | 705401486 | Oil Seal May 29, 2014 And Before | 2 |
| 2 | 705401618 | Gasket May 30, 2014 And After | 2 |
| 1 | 703500049 | Pinion Shim Kit May 29, 2014 And Before | 1 |
| 1 | 705501162 | Pinion Gear Shim May 29, 2014 And Before | 1 |
| 1 | 250200102 | Flat Washer M12 May 29, 2014 And Before | 1 |
| 1 | 250200014 | Flat Washer M10 May 30, 2014 And After | 1 |
| 250000378 | HEX FLANGED SCREW M12 X 16, SCOTCH GRIP May 29, 2014 And Before | ||
| 1 | 250000615 | Screw-Hex.Flange M10 X 16 May 30, 2014 And After | 1 |
