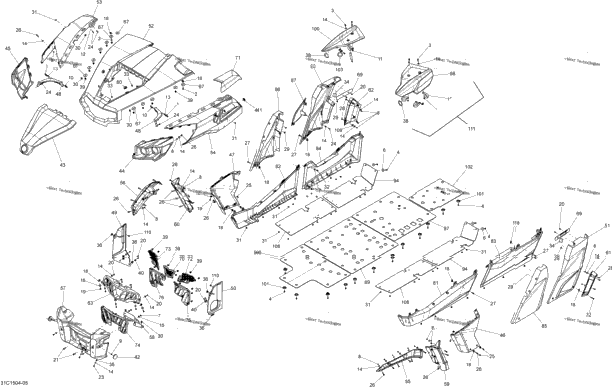

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 207661644 | Hex. Flange Screw M6 X 16 | 4 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 6 | 207662084 | Hex. Flange Screw M6 X 20 | 6 |
| 1 | 210262080 | Hex. Forming Screw M6 X 20 | 1 |
| 4 | 224081301 | Flat Washer | 4 |
| 2 | 232081414 | Hex. Nut M8 | 2 |
| 1 | 232561434 | Elastic Stop Nut M6 | 1 |
| 2 | 233251434 | Flange Elastic Nut M5 | 2 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 4 | 233261494 | Hex. Elastic Flange Nut M6 | 4 |
| 4 | 234051410 | Flat Washer M5 | 4 |
| 4 | 234061600 | Stainless Flat Washer M6 | 4 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 2 | 234081410 | Flat Washer 8 mm | 2 |
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 2 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 | 2 |
| 1 | 250000048 | Panel Nut M6 X 1.0 | 1 |
| 1 | 250000128 | Torx Truss Screw M6 X 20 | 1 |
| 1 | 250000146 | Truss Head Torx Screw K50 X 16 | 1 |
| 250000197 | Torx Truss Screw M8 X 30 | ||
| 1 | 250000215 | Torx Screw M6 X 45 | 1 |
| 4 | 250000261 | Torx Screw M6 X 16 | 4 |
| 1 | 250000297 | Truss Head Torx Screw K50 X 20 | 1 |
| 1 | 250000350 | Torx Truss Screw M6 X 20 | 1 |
| 1 | 250000371 | Torx Screw M6 X 30 Stainless | 1 |
| 4 | 250000398 | Torx Truss Screw M6 X 30 | 4 |
| 7 | 250000488 | Torx Truss Screw M6 X 20 | 7 |
| 2 | 250100129 | PUSH NUT | 2 |
| 1 | 293150089 | Tuflok Plastic Rivet | 1 |
| 1 | 293150104 | Pop Rivet 3/16" | 1 |
| 2 | 250200025 | Washer M5 | 2 |
| 4 | 293150104 | Pop Rivet 3/16" | 4 |
| 2 | 293250318 | SEAL TRAY | 2 |
| 293450274 | Insert | ||
| 6 | 293720053 | Grommet | 6 |
| 2 | 293750008 | Tie Wrap 368 mm | 2 |
| 1 | 517302785 | Edge Clip | 1 |
| 4 | 517303439 | Knob | 4 |
| 1 | 517303756 | Grommet | 1 |
| 2 | 705002409 | Amber Reflector | 2 |
| 1 | 705007077 | White Removable Hood | 1 |
| 1 | 705008348 | DEEP PEWTER SATIN REMOVABLE HOOD | 1 |
| 1 | 705002885 | LH Front Facia | 1 |
| 1 | 705002886 | RH Front Facia | 1 |
| 1 | 705006037 | White LH Front Lateral Pannel | 1 |
| 1 | 705008350 | Deep Pewter Satin LH Front Lateral Panel | 1 |
| 1 | 705006059 | PANEL_BODY FR B-341 | 1 |
| 1 | 705008352 | DEEP PEWTER SATIN RH FRONT LATERAL PANEL | 1 |
| 1 | 705002894 | RH Deflector | 1 |
| 1 | 705005113 | LH Deflector | 1 |
| 1 | 705006744 | PANEL_BODY REAR L B-341 | 1 |
| 1 | 705008355 | DEEP PEWTER SATIN LH REAR LAT. PANEL | 1 |
| 705006036 | HOOD B-341 | ||
| 1 | 705008347 | DEEP PEWTER SATIN FIXED HOOD | 1 |
| 1 | 705006775 | White RH Front Fender | 1 |
| 1 | 705008343 | DEEP PEWTER SATIN RH FRONT FENDER | 1 |
| 1 | 705006774 | FENDER FL B-341 | 1 |
| 1 | 705008341 | DEEP PEWTER SATIN LH FRONT FENDER | 1 |
| 1 | 705008666 | Black, LH Upper Front Mudguard | 1 |
| 1 | 705008667 | Black, RH Upper Front Mudguard | 1 |
| 1 | 705008690 | Black Front Facia | 1 |
| 1 | 705003399 | Bottom Deflector | 1 |
| 1 | 705008668 | Black, LH Lower Mudguard | 1 |
| 1 | 705008669 | Black, RH Lower Mudguard | 1 |
| 1 | 705008670 | Black, LH Rear Lower Mudguard | 1 |
| 1 | 705008672 | RH Rear Lower Black Mudguard | 1 |
| 1 | 705003629 | FASCIA UP B-160 | 1 |
| 12 | 705003841 | Support Plate | 12 |
| 2 | 705004261 | Support Plate | 2 |
| 1 | 705004336 | Center Upper Facia Protector | 1 |
| 1 | 705006054 | COVER_AIR INLET FL B-341 | 1 |
| 1 | 705008345 | Deep Pewter Satin CVT Inlet Cover | 1 |
| 1 | 705004350 | LH Upper Facia Protector | 1 |
| 1 | 705004351 | RH Upper Facia Protector | 1 |
| 1 | 705004755 | Lower Front Facia Protector | 1 |
| 1 | 705004819 | LH Lower Rear Facia Protector | 1 |
| 1 | 705004820 | RH Lower Rear Facia Protector | 1 |
| 2 | 705005156 | Oval Washer | 2 |
| 1 | 705007035 | Black, LH Lower Panel | 1 |
| 1 | 705007036 | Black, RH Lower Panel | 1 |
| 1 | 705005426 | Black, RH Rear Lower Panel | 1 |
| 1 | 705008360 | WHITE LH CENTER CAGE PANEL | 1 |
| 1 | 705008362 | Deep Pewter Satin LH Center Cage Panel | 1 |
| 1 | 705008363 | WHITE RH CENTER CAGE PANEL | 1 |
| 1 | 705008365 | DEEP PEWTER SATIN RH CENTER CAGE PANEL | 1 |
| 1 | 705008366 | WHITE RH PANEL COVER | 1 |
| 1 | 705008368 | DEEP PEWTER SATIN RH PANEL COVER | 1 |
| 1 | 705005939 | Center Skid Plate | 1 |
| 1 | 705008353 | WHITE RH REAR LATERAL PANNEL | 1 |
| 1 | 705008357 | DEEP PEWTER SATIN RH REAR LATERAL PANNEL | 1 |
| 2 | 705007038 | RH Lateral Skid Plate | 2 |
| 1 | 705007055 | Middle Protector Plate | 1 |
| 1 | 705007056 | Rear Protector Plate | 1 |
| 705008585 | Deep Pewter Satin LH Top Center Cage Cap | ||
| 705008609 | White LH Top Center Cage Cover | ||
| 705008586 | Deep Pewter Satin RH Top Center Cage Cap | ||
| 705008610 | White RH Top Center Cage Cover | ||
| 35 | 705007171 | Cup | 35 |
| 1 | 705007227 | Rear Protector Plate | 1 |
| 6 | 705005626 | "P" Bracket, 2" Dia. | 6 |
| 2 | 705008421 | Side Protector Plate | 2 |
| 1 | 250200086 | Flat Washer | 1 |
| 2 | 708000759 | Rubber Stopper | 2 |
| XXXX | Not Available As Spare Part - Deep Pewter-Cage Cover Kit | ||
| XXXX | Not Available As Spare Part - White-Cage Cover Kit |
