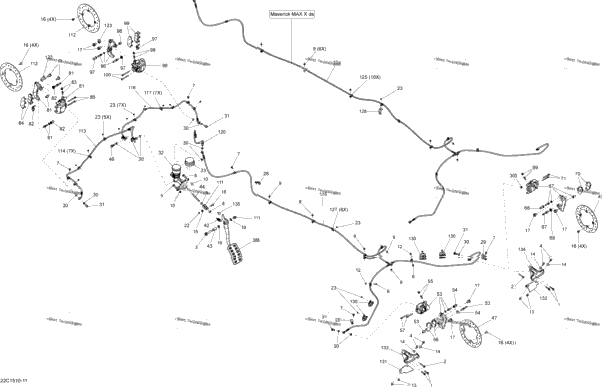

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip | 4 |
| 2 | 207564044 | Hex. Flange Screw M6 X 40, Scotch Grip | 2 |
| 1 | 207605544 | Hex. Flange Screw M10 X 55 | 1 |
| 4 | 207662544 | Hex. Flange Screw M6 X 25 | 4 |
| 2 | 207682534 | Hex. Flange Screw M8 X 25 | 2 |
| 2 | 210251680 | Hex. Forming Screw M5 X 16 | 2 |
| 5 | 210261040 | Hex. Flange Screw M6 X 10 | 5 |
| 2 | 232081414 | Hex. Nut M8 | 2 |
| 5 | 232561434 | Elastic Stop Nut M6 | 5 |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 | 2 |
| 1 | 233201414 | Hex. Flange Elastic Nut M10 | 1 |
| 2 | 233251434 | Flange Elastic Nut M5 | 2 |
| 4 | 233261494 | Hex. Elastic Flange Nut M6 | 4 |
| 4 | 234062670 | Stainless Steel Flat Washer | 4 |
| 1 | 234081430 | Flat Washer M8 | 1 |
| 16 | 235381646 | Torx Screw M8 X 16, Scotch Grip | 16 |
| 8 | 250000601 | Hex. Flange Screw M10 X 20, Scotch Grip | 8 |
| 1 | 250400058 | Pin | 1 |
| 2 | 293300144 | O-Ring | 2 |
| 1 | 371800700 | Cotter Pin | 1 |
| 16 | 390402200 | Pop Rivet 3/16" | 16 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 2 | 518321570 | Open Clamp | 2 |
| 13 | 705600310 | Copper Washer | 13 |
| 4 | 705600609 | Banjo Bolt (M10 x 1.25 thread) | 4 |
| 1 | 705600681 | Master Cylinder Ass'y Includes 32 to 33 | 1 |
| 1 | 715500332 | Diaphragm Cap Kit | 1 |
| 1 | 705600724 | Brake Pedal | 1 |
| 1 | 705600792 | Brake Pedal Spring | 1 |
| 1 | 705600815 | Inner Spacer | 1 |
| 1 | 705600833 | Master Cylinder Rod | 1 |
| 1 | 705600958 | Banjo Bolt | 1 |
| 2 | 705600999 | Disc Brake | 2 |
| 1 | 705601089 | LH Caliper Ass'y Includes 53 to 57 | 1 |
| 1 | 715500384 | Spring, Protector And Bolt Kit | 1 |
| 1 | 705600080 | Bleeding Screw | 1 |
| 1 | 705600398 | LH Brake Pad Kit | 1 |
| 1 | 705600081 | Pin Set (2) | 1 |
| 1 | 705601090 | RH Caliper Ass'y Includes 67 to 71 | 1 |
| 1 | 705601147 | RH Brake Pad Kit | 1 |
| 1 | 705601128 | LH Caliper Ass'y Includes 81 to 85 | 1 |
| 1 | 715500385 | Spring And Bolt Kit | 1 |
| 1 | 705601149 | LH Brake Pad Kit | 1 |
| 1 | 705601151 | Hanger Pin Kit | 1 |
| 1 | 705601129 | RH Caliper Ass'y Includes 96 to 100 | 1 |
| 1 | 705601150 | RH Brake Pad Kit | 1 |
| 1 | 705601142 | Yoke | 1 |
| 2 | 705601178 | Disc Brake | 2 |
| 1 | 705601192 | LH Front Flexible Hose Ass'y Includes 113 to 114 | 1 |
| 7 | 715900250 | Hose Clip | 7 |
| 1 | 705601193 | RH Front Flexible Hose Ass'y Includes 116 to 117 | 1 |
| 1 | 705601250 | Brake Switch | 1 |
| 2 | 705601337 | Bracket | 2 |
| XXX | Not Available As Spare Parts | ||
| 1 | 705601362 | Rear Flexible Hose Ass'y Includes 126 to 127 | 1 |
| 8 | 715900250 | Hose Clip | 8 |
| 4 | 705601380 | HOSE CLAMP | 4 |
| 1 | 705601397 | LH DEFLECTOR INSERT Model-North America, International | 1 |
| 1 | 705601398 | RH DEFLECTOR INSERT Model-North America, International | 1 |
| 1 | 705601403 | LH DEFLECTOR | 1 |
| 1 | 705601404 | RH DEFLECTOR | 1 |
| 1 | 708000759 | Rubber Stopper | 1 |
