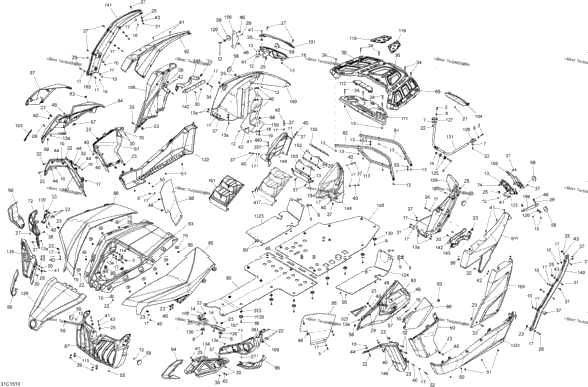

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 207561634 | Hex. Flange Screw M6 X 16, Scotch Grip | 2 |
| 2 | 207562544 | Hex. Flange Screw M6 X 25 | 2 |
| 2 | 207662054 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 207687044 | Hex. Flange Screw M8 X 70 | 2 |
| 4 | 210261680 | Hex. Flange Screw M6 X 16 | 4 |
| 1 | 210262050 | Hexagonal Head Screw | 1 |
| 2 | 224060201 | Flat Washer | 2 |
| 2 | 224061201 | Flat Washer | 2 |
| 4 | 224081301 | Flat Washer | 4 |
| 19 | 232561434 | Elastic Stop Nut M6 | 19 |
| 2 | 233251434 | Flange Elastic Nut M5 | 2 |
| 1 | 233251494 | Elastic Flange Nut M5 | 1 |
| 1 | 233261434 | Flange Elastic Nut M6 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 2 | 233261494 | Hex. Elastic Flange Nut M6 | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 4 | 234051410 | Flat Washer M5 | 4 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 1 | 234281474 | Conical Spring Washer M8 | 1 |
| 1 | 236282084 | Hex. Screw M8 X 20 | 1 |
| 8 | 241140060 | Screw K40 X 10 | 8 |
| 1 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 | 1 |
| 12 | 241152060 | Hex. Flange Screw K50 X 20 | 12 |
| 1 | 250000048 | Panel Nut M6 X 1.0 | 1 |
| 1 | 250000079 | Panel Nut M5 X 0.8 | 1 |
| 2 | 250000145 | Torx Screw M5 X 14 | 2 |
| 2 | 250000202 | Self Tapping Screw #8 X 5/8 | 2 |
| 1 | 250000215 | Torx Screw M6 X 45 | 1 |
| 1 | 250000284 | Torx Screw M6 x 25 | 1 |
| 1 | 250000297 | Truss Head Torx Screw K50 X 20 | 1 |
| 4 | 250000297 | Truss Head Torx Screw K50 X 20 | 4 |
| 6 | 250000300 | Torx Screw M5 X 25 | 6 |
| 10 | 250000371 | Torx Screw M6 X 30 Stainless | 10 |
| 2 | 250000398 | Torx Truss Screw M6 X 30 | 2 |
| 1 | 250000646 | Black, Torx Screw M6 X 35 | 1 |
| 2 | 250000647 | Torx Screw M6 X 45 | 2 |
| 2 | 250000648 | Torx Screw M6 X 60 | 2 |
| 1 | 250000712 | Torx Screw M6 X 20 | 1 |
| 2 | 250000720 | Torx Screw K50 X 16 | 2 |
| 4 | 250000721 | Torx Truss Screw M6 X 16 | 4 |
| 1 | 250000722 | Torx Screw M6 X 20 | 1 |
| 1 | 250000724 | Torx Screw M5 X 20 | 1 |
| 1 | 250100129 | PUSH NUT | 1 |
| 1 | 250200025 | Washer M5 | 1 |
| 4 | 291001932 | Pad | 4 |
| 1 | 293150089 | Tuflok Plastic Rivet | 1 |
| 0 | 293150103 | Pop Rivet 3/16" | 0 |
| 1 | 293150104 | Pop Rivet 3/16" | 1 |
| 0 | 293150104 | Pop Rivet 3/16" | 0 |
| 293450274 | Insert | ||
| 1 | 391301000 | WASHER | 1 |
| 2 | 414644300 | Black, Dart | 2 |
| 1 | 517302785 | Edge Clip | 1 |
| 2 | 517303756 | Grommet | 2 |
| 1 | 705002408 | Red Reflector | 1 |
| 2 | 705002409 | Amber Reflector | 2 |
| 1 | 705007358 | White, LH Front Lateral Pannel | 1 |
| 1 | 705008488 | Timeless Black LH Front Lateral Panel | 1 |
| 1 | 705007359 | White, RH Front Lateral Pannel | 1 |
| 1 | 705008489 | Timeless Black RH Front Lateral Panel | 1 |
| 2 | 705003264 | Grommet | 2 |
| 715002367 | Rear Rack KIT | ||
| 11 | 705003841 | Support Plate | 11 |
| 1 | 705004508 | LH Front Facia | 1 |
| 1 | 705004509 | RH Front Facia | 1 |
| 1 | 705004731 | LH Rear Facia | 1 |
| 1 | 705004927 | LH Rear Facia | 1 |
| 1 | 705004732 | RH Rear Facia | 1 |
| 1 | 705004926 | RH Rear Facia | 1 |
| 2 | 705005156 | Oval Washer | 2 |
| 1 | 705005469 | Tube | 1 |
| 1 | 705005470 | Tube | 1 |
| 1 | 705006558 | Black LH Front Fender | 1 |
| 1 | 705008534 | FENDER FL B-CF | 1 |
| 1 | 705008941 | FENDER FL B-365 | 1 |
| 1 | 705006559 | Black RH Front Fender | 1 |
| 1 | 705008535 | FENDER FR B-CF | 1 |
| 1 | 705008942 | Quarry Gray RH Front Fender | 1 |
| 1 | 705008538 | Timeless Black LH Fixe Hood | 1 |
| 1 | 705008945 | Deep Black LH Fixe Hood | 1 |
| 1 | 705008947 | HOOD LH B-365 | 1 |
| 1 | 705008539 | Timeless Black RH Fixe Hood | 1 |
| 1 | 705008946 | Deep Black RH Fixe Hood | 1 |
| 1 | 705008948 | Quarry Gray RH Fixe Hood | 1 |
| 1 | 705005784 | Front Radiator Grille | 1 |
| 2 | 705007827 | Inner Fender | 2 |
| 1 | 705005798 | Front Skid Plate | 1 |
| 1 | 705008540 | FENDER REAR L B-CF | 1 |
| 1 | 705008949 | FENDER REAR L B-365 | 1 |
| 1 | 705009035 | FENDER REAR L B-160 | 1 |
| 1 | 705008541 | FENDER REAR R B-CF | 1 |
| 1 | 705008951 | Quarry Gray RH Rear Fender | 1 |
| 1 | 705009036 | Black RH Rear Fender | 1 |
| 1 | 705005821 | Fixe Center Hood | 1 |
| 1 | 705008613 | TRIM_BUMPER FL B-357 | 1 |
| 1 | 705008614 | TRIM_BUMPER FR B-357 | 1 |
| 1 | 705007983 | White LH Cover Front Fender | 1 |
| 1 | 705008536 | PANEL_BODY FL B-CF | 1 |
| 1 | 705007984 | White RH Cover Front Fender | 1 |
| 1 | 705008537 | Black Carbon Fiber RH Cover Front Fender | 1 |
| 1 | 705008611 | TRIM_FENDER FL B-357 | 1 |
| 1 | 705008612 | TRIM_FENDER FR B-357 | 1 |
| 1 | 705006583 | TRIM_HEADLIGHT REAR L B-160 | 1 |
| 1 | 705008542 | TRIM_HEADLIGHT REAR L B-CF | 1 |
| 1 | 705008952 | TRIM_HEADLIGHT REAR L B-365 | 1 |
| 1 | 705006584 | TRIM_HEADLIGHT REAR R B-160 | 1 |
| 1 | 705008543 | TRIM_HEADLIGHT REAR R B-CF | 1 |
| 1 | 705008953 | TRIM_HEADLIGHT REAR R B-365 | 1 |
| 1 | 705005992 | LH Front Facia Trim | 1 |
| 1 | 705005993 | RH Front Facia Trim | 1 |
| 1 | 705005994 | LOGO Support | 1 |
| 1 | 705007362 | White LH Rear Lateral Panel | 1 |
| 1 | 705008492 | Tmeless Black LH Rear Lateral Panel | 1 |
| 1 | 705007363 | White RH Rear Lateral Panel | 1 |
| 1 | 705008493 | Tmeless Black Met RH Rear Lateral Panel | 1 |
| 1 | 705006038 | LH BUMPER SKID CAP | 1 |
| 1 | 705006039 | RH BUMPER SKID CAP | 1 |
| 1 | 705006078 | LH Front Facia Support | 1 |
| 1 | 705006079 | RH Front Facia Support | 1 |
| 1 | 705006128 | Bagage Central Rack | 1 |
| 1 | 705006132 | Central Bagage Rack Cap | 1 |
| 1 | 705006279 | Bagage Rack Tube | 1 |
| 1 | 705006623 | Clamp | 1 |
| 2 | 705006635 | Radiator Grille Bracket | 2 |
| 1 | 705006713 | LH Bagage Rack Cover | 1 |
| 1 | 705006714 | RH BAGAGE RACK COVER | 1 |
| 2 | 705006828 | REFLECTOR SUPPORT | 2 |
| 1 | 705006991 | LH Lateral Middle Panel | 1 |
| 1 | 705006992 | RH Lateral Middle Panel | 1 |
| 2 | 705007038 | RH Lateral Skid Plate | 2 |
| 1 | 705007038 | RH Lateral Skid Plate | 1 |
| 1 | 705009444 | LH Lateral Skid Plate | 1 |
| 4 | 705007044 | Rear Support Facia Clip | 4 |
| 1 | 705007045 | LH Rear Facia Support | 1 |
| 1 | 705007046 | RH Rear Facia Support | 1 |
| 2 | 705007047 | TUBE CONNECTOR | 2 |
| 1 | 705007129 | HOOD B-CF | 1 |
| 1 | 705008186 | Bright White, Removable Hood | 1 |
| 22 | 705007171 | Cup | 22 |
| 1 | 705007299 | Body Tube | 1 |
| 1 | 705007499 | LH BUMPER GRILL | 1 |
| 1 | 705007500 | RH BUMPER GRILL | 1 |
| 1 | 705007637 | LH Rear Deflector | 1 |
| 1 | 705007638 | RH Rear Deflector | 1 |
| 2 | 705007917 | Support Plate | 2 |
| 1 | 705007918 | LH REAR FENDER SUPPORT | 1 |
| 1 | 705007919 | RH REAR FENDER SUPPORT | 1 |
| 1 | 705008958 | Skid Plate | 1 |
| 1 | 705008988 | LH Front Deflector | 1 |
| 1 | 705008989 | RH Front Deflector | 1 |
| 1 | 705009046 | LH INTERCOOLER COVER | 1 |
| 1 | 705009047 | RH INTERCOOLER COVER | 1 |
| 1 | 705009143 | DEFLECTOR | 1 |
| 1 | 705009260 | Upper Grille | 1 |
| 1 | 705009261 | Lower Grille | 1 |
| 1 | 705009262 | Air Duct Support | 1 |
| 1 | 705009343 | REAR SUPPORT | 1 |
| 2 | 705009408 | SUPPORT | 2 |
| 1 | 705009445 | INNER FENDER | 1 |
| 1 | 705009548 | LH Inner Fender | 1 |
| 1 | 705009549 | RH Inner Fender | 1 |
| 1 | 705204561 | Air Scoop Kit | 1 |
| 1 | 250200086 | Flat Washer | 1 |
