Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

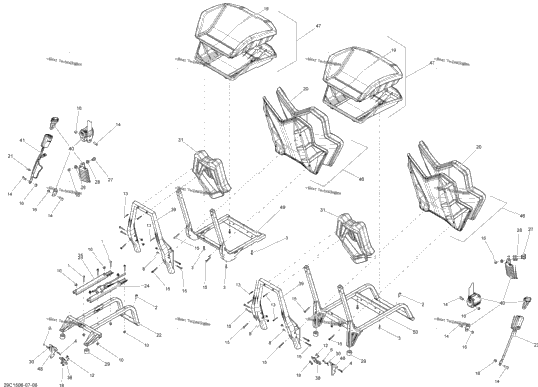

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 205084044 | Socket Head Screw M8 X 1.25 X 40 | 4 |
| 1 | 205501644 | Socket Screw M10 X 16 | 1 |
| 4 | 207562544 | Hex. Flange Screw M6 X 25 | 4 |
| 1 | 207663034 | Hex. Flange Screw M6 X 30 | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 4 | 233161464 | Hex. Elastic Flange Nut M6 | 4 |
| 8 | 233281414 | Hex. Flange Elastic Nut M8 | 8 |
| 4 | 250000223 | Torx Screw M6 X 16 | 4 |
| 4 | 250000490 | HEX. WASHER HEAD SCREW PT K50 X 40 | 4 |
| 8 | 250000521 | Hex. Cap Screw 7/16'' X 1'' | 8 |
| 8 | 250000672 | Hex. Flange Screw M6 | 8 |
| 8 | 250100135 | Nylon Insert Hex. Lock Nut 7/16-20 | 8 |
| 293450274 | Insert | ||
| 1 | 708001333 | Seat Cover Package-XRS/DPS, Model Red | 1 |
| 2 | 708001084 | SEAT COVER Package-XRS, Model Black-Yellow | 2 |
| 1 | 708001084 | SEAT COVER Package-XRS/DPS, Model Black-Yellow | 1 |
| 1 | 708001333 | Seat Cover Package-XRS/DPS, Model White-Red-Black Cage | 1 |
| 1 | 708001103 | Seat Cover Model-Yellow | 1 |
| 2 | 708001331 | BACKREST COVER Package-XRS/DPS, Model Red | 2 |
| 2 | 708001080 | BACKREST COVER Package-XRS, Model Black-Yellow | 2 |
| 1 | 708001080 | BACKREST COVER Package-XRS/DPS, Model Black-Yellow | 1 |
| 1 | 708001331 | BACKREST COVER Package-XRS/DPS, Model White-Red-Black Cage | 1 |
| 1 | 708000675 | Backrest Cover Model-Yellow | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 708000667 | Seat Member | 1 |
| 1 | 708000844 | Passenger Buckle Side | 1 |
| 1 | 708000857 | PASSENGER BUCKLE SIDE Model-Europe | 1 |
| 1 | 708001739 | RH Rail | 1 |
| 1 | 708000848 | LH Rail | 1 |
| 2 | 708000890 | Safety Belt Screw | 2 |
| 4 | 708000891 | Position Washer | 4 |
| 2 | 708000899 | Rubber Bumper | 2 |
| 1 | 708000921 | Spring | 1 |
| 1 | 708001074 | Head Rest | 1 |
| 1 | 708001482 | RH Retaining Rod | 1 |
| 1 | 708001477 | LH Retaining Rod | 1 |
| 1 | 708001245 | Seat Support | 1 |
| 2 | 708001130 | SAFETY BELT Model-Europe | 2 |
| 2 | 708001302 | Safety Belt | 2 |
| 1 | 708000856 | Driver Buckle Side Model-Europe | 1 |
| 1 | 708000987 | Driver Buckle Side | 1 |
| 1 | 708001316 | Backrest Assembly Model-Yellow | 1 |
| 708001338 | BACKREST ASSEMBLY Package-XRS/DPS, Model White-Red-Black Cage | ||
| 1 | 708001317 | Backrest Assembly Package-XRS/DPS, Model Black-Yellow | 1 |
| 708001338 | BACKREST ASSEMBLY Package-XRS/DPS, Model Red | ||
| 2 | 708001317 | Backrest Assembly Package-XRS, Model Black-Yellow | 2 |
| 1 | 708001318 | Cushion Assembly Model-Yellow | 1 |
| 1 | 708001339 | Cushion Assembly Package-XRS/DPS, Model White-Red-Black Cage | 1 |
| 708001319 | CUSHION ASSEMBLY Package-XRS/DPS, Model Black-Yellow | ||
| 2 | 708001339 | Cushion Assembly Package-XRS/DPS, Model Red | 2 |
| 708001319 | CUSHION ASSEMBLY Package-XRS, Model Black-Yellow | ||
| 1 | 708001355 | Seat Latch | 1 |
| 1 | 708001356 | Operator Seat Frame | 1 |
| 1 | 708001357 | Passenger Seat Frame | 1 |
