Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

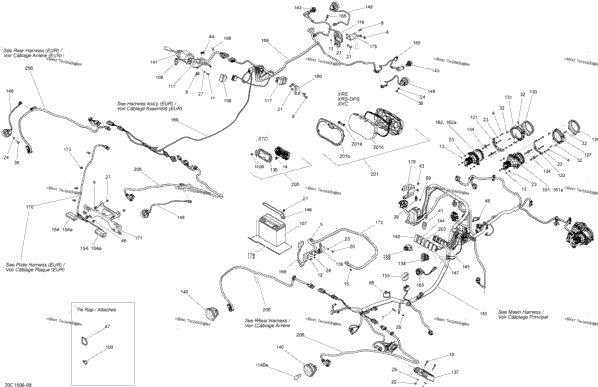

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 12 | 207142544 | Hex. Screw M4 X 25 | 12 |
| 2 | 207151644 | Hex. Screw M5 X 16 | 2 |
| 2 | 207361644 | Hex. Screw M6 X 16, Scotch Grip | 2 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 7 | 207661644 | Hex. Flange Screw M6 X 16 | 7 |
| 3 | 207663034 | Hex. Flange Screw M6 X 30 | 3 |
| 2 | 210251680 | Hex. Forming Screw M5 X 16 | 2 |
| 1 | 232061600 | Hex. Nut M6 | 1 |
| 12 | 232541414 | Elastic Stop Nut M4 | 12 |
| 1 | 715900265 | Button | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 2 | 233251414 | Hex. Flange Elastic Nut M5 | 2 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 2 | 233261494 | Hex. Elastic Flange Nut M6 | 2 |
| 26 | 234051410 | Flat Washer M5 | 26 |
| 4 | 234061410 | Flat Washer 6 mm | 4 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 2 | 234151401 | Lock Washer 5 mm | 2 |
| 1 | 234161601 | Lock Washer Helical M6 | 1 |
| 2 | 234461608 | External Serrated Lock Washer 6 mm | 2 |
| 22 | 250000723 | Phillips Screw K40 X 16 | 22 |
| 4 | 250000439 | Torx Truss Screw M6 X 14 | 4 |
| 1 | 270000141 | Clip | 1 |
| 1 | 278002704 | Diagnostic Connector | 1 |
| 2 | 293150103 | Pop Rivet 3/16" | 2 |
| 293450274 | Insert | ||
| 1 | 293730018 | Mount Dart | 1 |
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 293750063 | Clip Tie-Rap | 1 |
| 1 | 390402400 | Pop Rivet 3/16" | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 414227300 | Clip | 1 |
| 1 | 410301203 | Battery Ass'y, 18 Amperes | 1 |
| 1 | 704901270 | BRP Logo 13 mm | 1 |
| 1 | 704902614 | Flasher Decal | 1 |
| 1 | 709400810 | Flasher Arm Support | 1 |
| 1 | 710000983 | Horn | 1 |
| 1 | 710001115 | RH High Light Support | 1 |
| 1 | 710001036 | LH High Light Support | 1 |
| 1 | 710001094 | RH Low Light Support | 1 |
| 1 | 710001037 | LH Low Light Support | 1 |
| 1 | 710001081 | RH Low Front Housing | 1 |
| 1 | 710001083 | LH Low Front Housing | 1 |
| 1 | 710001082 | RH Low Rear Housing | 1 |
| 1 | 710001084 | LH Low Rear Housing | 1 |
| 1 | 710001085 | RH High Front Housing | 1 |
| 1 | 710001087 | LH High Front Housing | 1 |
| 1 | 710001086 | RH High Rear Housing | 1 |
| 1 | 710001088 | LH High Rear Housing | 1 |
| 8 | 710001147 | Setting Screw | 8 |
| 1 | 710001183 | Trim Ring Ass'y | 1 |
| 1 | 710001191 | Voltage Regulator | 1 |
| 1 | 710001248 | DC Outlet | 1 |
| 1 | 710001364 | Starter Relay | 1 |
| 2 | 710001645 | Tail Light Ass'y | 2 |
| 1 | 520000758 | Bulb | 1 |
| 1 | 710001721 | Turn Signal | 1 |
| 1 | 710001725 | Hi/Low Switch | 1 |
| 2 | 710001726 | Day Light | 2 |
| 1 | 710001737 | 4X4 Switch | 1 |
| 1 | 710001781 | Switch DPS | 1 |
| 1 | 710001916 | Battery Holder | 1 |
| 2 | 710001999 | Plug Carling | 2 |
| 4 | 710002047 | Flasher | 4 |
| 1 | 710002053 | Switch, Over ride | 1 |
| 2 | 710002055 | License Light | 2 |
| 1 | 219800128 | Bulb | 1 |
| 1 | 710002076 | Switch Hazard | 1 |
| 1 | 710003847 | Ignition Switch | 1 |
| 1 | 710002408 | SUPPORT | 1 |
| 2 | 710002524 | Low Beam Ass'y | 2 |
| 1 | 415129249 | Halogen Bulb | 1 |
| 2 | 710002525 | High Beam Ass'y | 2 |
| 1 | 710002594 | Engine Start Button | 1 |
| 2 | 710002896 | Tie-Rap Clip | 2 |
| 1 | 710003123 | Positive Cable | 1 |
| 1 | 710003127 | Harness Ass'y | 1 |
| 710003128 | Harness Ass'y | ||
| 1 | 710003150 | LIGHT SUPPORT | 1 |
| 1 | 710003151 | Positive Cable | 1 |
| 4 | 710003168 | Dart Tie Rap 200MM | 4 |
| 1 | 710003170 | SUPPORT | 1 |
| 1 | 710003239 | Flasher Unit | 1 |
| 1 | 710003265 | Heat Deflector | 1 |
| 1 | 710003335 | Fuse Holder | 1 |
| 1 | 710004095 | Wiring Harness Assembly | 1 |
| 1 | 710003924 | Multifunction Speedometer | 1 |
| 1 | 710003928 | Speedometer | 1 |
| 1 | 415129355 | Speedometer Button | 1 |
| 1 | 415129348 | Gauge Ring | 1 |
| 1 | 415129349 | Lens | 1 |
| 1 | 710003541 | Switch PPS Sport | 1 |
| 2 | 710003680 | Rear Harness | 2 |
| 2 | 710003681 | WIRING HARNESS REAR Europe | 2 |
