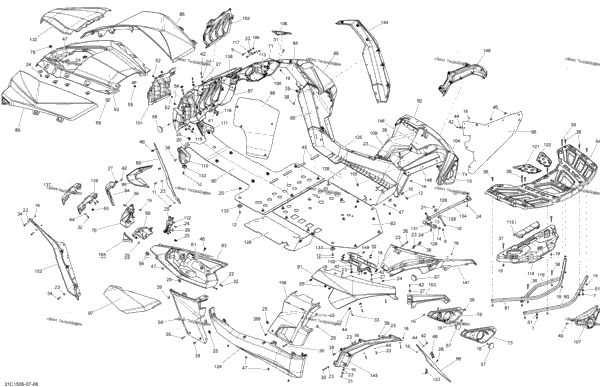

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 207561634 | Hex. Flange Screw M6 X 16, Scotch Grip | 2 |
| 2 | 207562544 | Hex. Flange Screw M6 X 25 | 2 |
| 2 | 207662054 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 207687044 | Hex. Flange Screw M8 X 70 | 2 |
| 4 | 210261680 | Hex. Flange Screw M6 X 16 | 4 |
| 1 | 210262050 | Hexagonal Head Screw | 1 |
| 2 | 224060201 | Flat Washer | 2 |
| 2 | 224061201 | Flat Washer | 2 |
| 4 | 224081301 | Flat Washer | 4 |
| 19 | 232561434 | Elastic Stop Nut M6 | 19 |
| 1 | 233251494 | Elastic Flange Nut M5 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 2 | 233261494 | Hex. Elastic Flange Nut M6 | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 4 | 234051410 | Flat Washer M5 | 4 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 12 | 241152060 | Hex. Flange Screw K50 X 20 | 12 |
| 1 | 250000048 | Panel Nut M6 X 1.0 | 1 |
| 1 | 250000079 | Panel Nut M5 X 0.8 | 1 |
| XXX | Not Available As Spare Parts | ||
| 2 | 250000202 | Self Tapping Screw #8 X 5/8 | 2 |
| 1 | 250000215 | Torx Screw M6 X 45 | 1 |
| 5 | 250000284 | Torx Screw M6 x 25 | 5 |
| 14 | 250000297 | Truss Head Torx Screw K50 X 20 | 14 |
| 6 | 250000300 | Torx Screw M5 X 25 | 6 |
| 10 | 250000371 | Torx Screw M6 X 30 Stainless | 10 |
| 2 | 250000398 | Torx Truss Screw M6 X 30 | 2 |
| 2 | 250000646 | Black, Torx Screw M6 X 35 | 2 |
| 8 | 250000646 | Black, Torx Screw M6 X 35 | 8 |
| 2 | 250000647 | Torx Screw M6 X 45 | 2 |
| 2 | 250000648 | Torx Screw M6 X 60 | 2 |
| 1 | 250000722 | Torx Screw M6 X 20 | 1 |
| 3 | 250000720 | Torx Screw K50 X 16 | 3 |
| 4 | 250000721 | Torx Truss Screw M6 X 16 | 4 |
| 1 | 250000724 | Torx Screw M5 X 20 | 1 |
| 1 | 250100129 | PUSH NUT | 1 |
| 1 | 250200025 | Washer M5 | 1 |
| 4 | 291001932 | Pad | 4 |
| 12 | 293150089 | Tuflok Plastic Rivet | 12 |
| 1 | 293150104 | Pop Rivet 3/16" | 1 |
| 293450274 | Insert | ||
| 5 | 293830005 | Rubber Bumper | 5 |
| 2 | 414644300 | Black, Dart | 2 |
| 1 | 517302785 | Edge Clip | 1 |
| 2 | 517303756 | Grommet | 2 |
| 4 | 705002408 | Red Reflector | 4 |
| 2 | 705002409 | Amber Reflector | 2 |
| 1 | 705007846 | YELLOW LH FRONT LATERAL PANNEL Model-Black/Yellow | 1 |
| 705008486 | DIGITAL CAMO LH FRONT LATERAL PANNEL Model-Digital CAMO | ||
| 1 | 705007845 | YELLOW RH FRONT LATERAL PANNEL Model-Black/Yellow | 1 |
| 705008487 | Digital CAMO RH Front Lateral Pannel Model-Digital CAMO | ||
| 2 | 705003264 | Grommet | 2 |
| 715002367 | Rear Rack KIT | ||
| 11 | 705003841 | Support Plate | 11 |
| 1 | 705004508 | LH Front Facia | 1 |
| 1 | 705004509 | RH Front Facia | 1 |
| 1 | 705004731 | LH Rear Facia | 1 |
| 1 | 705004732 | RH Rear Facia | 1 |
| 2 | 705005156 | Oval Washer | 2 |
| 1 | 705005469 | Tube | 1 |
| 1 | 705005470 | Tube | 1 |
| 1 | 705005480 | Rear Skid Plate | 1 |
| 1 | 705006558 | Black LH Front Fender Model-Black/Yellow | 1 |
| 705008466 | FENDER FL B-DC Model-Digital CAMO | ||
| 1 | 705006559 | Black RH Front Fender Model-Black/Yellow | 1 |
| 705008467 | FENDER FR B-DC Model-Digital CAMO | ||
| 1 | 705005781 | Yellow LH Fixe Hood Model-Black/Yellow | 1 |
| 1 | 705008481 | Digital CAMO LH Fixe Hood Model-Digital CAMO | 1 |
| 1 | 705005782 | Yellow RH Fixe Hood Model-Black/Yellow | 1 |
| 1 | 705008482 | HOOD RH B-DC Model-Digital CAMO | 1 |
| 1 | 705005784 | Front Radiator Grille | 1 |
| 2 | 705007827 | Inner Fender | 2 |
| 1 | 705005798 | Front Skid Plate | 1 |
| 1 | 705009035 | FENDER REAR L B-160 Model-Black/Yellow | 1 |
| 1 | 705008496 | FENDER REAR L B-DC Model-Digital CAMO | 1 |
| 1 | 705009036 | Black RH Rear Fender Model-Black/Yellow | 1 |
| 705008497 | FENDER REAR R B-DC Model-Digital CAMO | ||
| 1 | 705005821 | Fixe Center Hood | 1 |
| 1 | 705005824 | YELLOW LH BUMPER CAP Model-Black/Yellow | 1 |
| 1 | 705008613 | TRIM_BUMPER FL B-357 Model-Digital CAMO | 1 |
| 1 | 705005825 | YELLOW RH BUMPER CAP Model-Black/Yellow | 1 |
| 1 | 705008614 | TRIM_BUMPER FR B-357 Model-Digital CAMO | 1 |
| 2 | 705007828 | Deflector | 2 |
| 1 | 705006566 | Black LH Cover Front Fender Model-Black/Yellow | 1 |
| 1 | 705008477 | PANEL_BODY FL B-DC Model-Digital CAMO | 1 |
| 1 | 705006567 | Black RH Cover Front Fender Model-Black/Yellow | 1 |
| 1 | 705008478 | PANEL_BODY FR B-DC Model-Digital CAMO | 1 |
| 1 | 705006562 | Black LH Front Fender Trim Model-Black/Yellow | 1 |
| 1 | 705008611 | TRIM_FENDER FL B-357 Model-Digital CAMO | 1 |
| 1 | 705006563 | Black RH Front Fender Trim Model-Black/Yellow | 1 |
| 1 | 705008612 | TRIM_FENDER FR B-357 Model-Digital CAMO | 1 |
| 1 | 705005983 | LH Rear Radiator Grille | 1 |
| 1 | 705005984 | RH Rear Radiator Grille | 1 |
| 1 | 705006583 | TRIM_HEADLIGHT REAR L B-160 Model-Black/Yellow | 1 |
| 1 | 705008504 | DIGITAL CAMO LH REAR FACIA TRIM Model-Digital CAMO | 1 |
| 1 | 705006584 | TRIM_HEADLIGHT REAR R B-160 Model-Black/Yellow | 1 |
| 1 | 705008505 | DIGITAL CAMO RH REAR FACIA TRIM Model-Digital CAMO | 1 |
| 1 | 705005992 | LH Front Facia Trim | 1 |
| 1 | 705005993 | RH Front Facia Trim | 1 |
| 1 | 705005994 | LOGO Support | 1 |
| 1 | 705007864 | YELLOW LH REAR LATERAL PANEL Model-Black/Yellow | 1 |
| 1 | 705008490 | Digital CAMO LH Rear Lateral Panel Model-Digital CAMO | 1 |
| 1 | 705007865 | Yellow RH Rear Lateral Panel Model-Black/Yellow | 1 |
| 1 | 705008491 | PANEL_BODY REAR R B-DC Model-Digital CAMO | 1 |
| 1 | 705006038 | LH BUMPER SKID CAP | 1 |
| 1 | 705006039 | RH BUMPER SKID CAP | 1 |
| 1 | 705006078 | LH Front Facia Support | 1 |
| 1 | 705006079 | RH Front Facia Support | 1 |
| 1 | 705006128 | Bagage Central Rack | 1 |
| 1 | 705006132 | Central Bagage Rack Cap | 1 |
| 1 | 705006279 | Bagage Rack Tube | 1 |
| 1 | 705006623 | Clamp | 1 |
| 2 | 705006635 | Radiator Grille Bracket | 2 |
| 1 | 705006713 | LH Bagage Rack Cover | 1 |
| 1 | 705006714 | RH BAGAGE RACK COVER | 1 |
| 1 | 705006991 | LH Lateral Middle Panel | 1 |
| 1 | 705006992 | RH Lateral Middle Panel | 1 |
| 2 | 705007038 | RH Lateral Skid Plate | 2 |
| 4 | 705007044 | Rear Support Facia Clip | 4 |
| 1 | 705007045 | LH Rear Facia Support | 1 |
| 1 | 705007046 | RH Rear Facia Support | 1 |
| 2 | 705007047 | TUBE CONNECTOR | 2 |
| 1 | 705007060 | Black Removable Hood | 1 |
| 22 | 705007171 | Cup | 22 |
| 1 | 705007299 | Body Tube | 1 |
| 1 | 705007497 | LH Bumper Grille | 1 |
| 1 | 705007498 | RH Bumper Grille | 1 |
| 1 | 705007637 | LH Rear Deflector | 1 |
| 1 | 705007638 | RH Rear Deflector | 1 |
| 1 | 705007910 | LH Rear Inner Fender | 1 |
| 1 | 705007911 | RH Rear Inner Fender | 1 |
| 2 | 705007917 | Support Plate | 2 |
| 1 | 705007918 | LH REAR FENDER SUPPORT | 1 |
| 1 | 705007919 | RH REAR FENDER SUPPORT | 1 |
| 1 | 705008988 | LH Front Deflector | 1 |
| 1 | 705008989 | RH Front Deflector | 1 |
