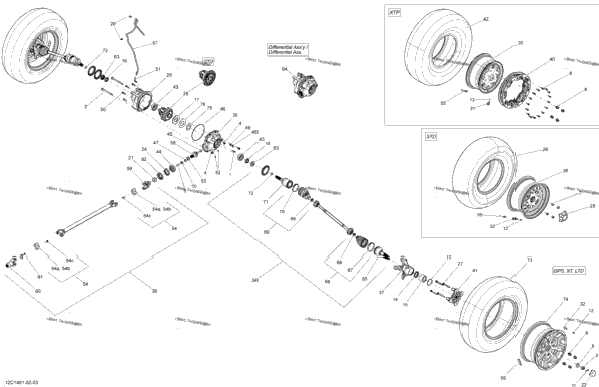

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 2 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 250100047 | Hex. Castellated Nut M18 | 2 |
| 2 | 233201436 | Hex. Flange Elastic Nut M10 | 2 |
| 250000378 | HEX FLANGED SCREW M12 X 16, SCOTCH GRIP | ||
| XXX | Not Available As Spare Parts | ||
| 8 | 250100082 | Chrome Wheel Nut M10 X 1.25 | 8 |
| 2 | 250200049 | Spring Washer | 2 |
| 1 | 250200102 | Flat Washer M12 | 1 |
| 2 | 250400036 | Cotter Pin | 2 |
| 2 | 293000110 | Valve Cap | 2 |
| 2 | 293250246 | O-Ring | 2 |
| 2 | 293350040 | Cone Bearing | 2 |
| 2 | 293350044 | Ball Bearing | 2 |
| 2 | 293370019 | Circlip | 2 |
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 1 | 705400036 | Wear Ring | 1 |
| 705400520 | WHEEL CAP | ||
| 1 | 705400661 | Nut | 1 |
| 1 | 705400762 | FRONT COVER | 1 |
| 8 | 705400791 | Wheel Stud | 8 |
| 705400822 | DIFFERENTIAL | ||
| 2 | 705400193 | Rim Valve With Cap | 2 |
| 1 | 705401105 | LH Half Shaft | 1 |
| 1 | 705401106 | RH Half Shaft | 1 |
| 705401136 | FRONT COVER | ||
| 1 | 705401548 | LH Front Knuckle | 1 |
| 1 | 705401549 | RH Front Knuckle | 1 |
| 1 | 705401239 | Axle Drive Ass'y | 1 |
| 2 | 705401314 | Wheel Hub | 2 |
| 2 | 705500259 | Ball Bearing | 2 |
| 1 | 705500260 | Ball Bearing | 1 |
| 1 | 705500261 | Needle Bearing | 1 |
| 1 | 705500265 | Seal | 1 |
| 1 | 705500267 | O-Ring | 1 |
| 1 | 705500504 | Fill Level Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 6 | 705500892 | SCREW | 6 |
| 1 | 705500893 | VENT VALVE | 1 |
| 2 | 705500894 | Drain Plug | 2 |
| 1 | 705501162 | Pinion Gear Shim | 1 |
| 2 | 703500814 | Unit Pack Kit | 2 |
| 2 | 715900183 | U-Joint | 2 |
| 715900117 | SNAP RING | ||
| 2 | 703500813 | GREASE FITTING | 2 |
| 1 | 219704465 | 1/2 OZ Weight | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 705501588 | 10 TEETH PINION | ||
| 1 | 715900231 | Yoke Joint Cover 715900483 | 1 |
| 1 | 715900232 | Yoke Joint | 1 |
| 1 | 703500815 | Grease Fitting | 1 |
| 1 | 705401481 | Oil Seal | 1 |
| 2 | 705401486 | Oil Seal | 2 |
| 1 | 705401488 | Front Differential Ass'y | 1 |
| 2 | 705401353 | JOINT_CV EXT | 2 |
| 2 | 705401354 | Boot Kit, Wheel Side | 2 |
| 2 | 715900260 | Oetiker Clamp, Large | 2 |
| 4 | 715900261 | Oetiker Clamp, Small | 4 |
| 2 | 705401355 | Boot Kit, Différential Side | 2 |
| 2 | 715900262 | Oetiker Clamp, Large | 2 |
| 1 | 705401357 | RH Plunging Joint | 1 |
| 1 | 705401359 | LH Plunging Joint | 1 |
| 2 | 705401349 | Circlip Joint | 2 |
| 2 | 705400961 | Front Tire Model- LTD Europe | 2 |
| 2 | 705401377 | Front Tire Model- LTD Except Europe | 2 |
| 2 | 705401380 | RIM_14 INCH X 7 | 2 |
| 1 | 703500049 | Pinion Shim Kit | 1 |
| 1 | 703500288 | Differential Shim Spool Kit | 1 |
| 1 | 703500050 | Differential Shim Spool Kit | 1 |
