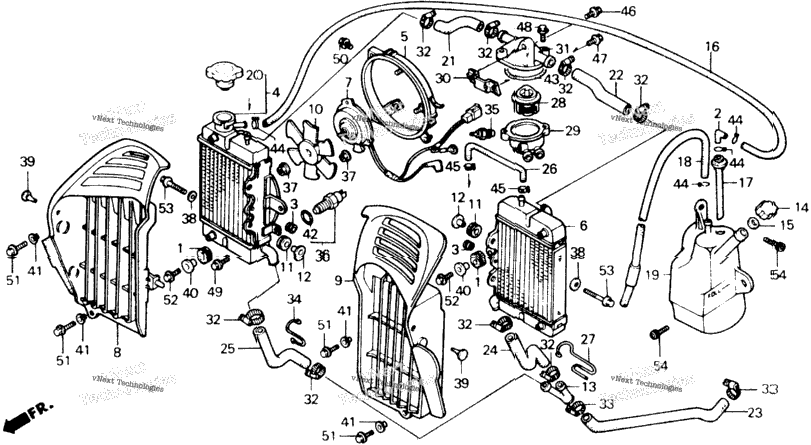

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 17245-107-010 | RUBBER, AIR CLEANER HOUSING MOUNTING | 2 |
| 1 | 17359-419-670 | JOINT, BREATHER TUBE | 1 |
| 18624-634-670 | GROMMET, AIR BYPASS | ||
| 19011-MAB-621 | RADIATOR (TOYO) (SOURCE: VINTAGE PARTS INC.) | ||
| 19011-MM9-003 | RADIATOR, R. (TOYO) | ||
| 19013-MM9-670 | SHROUD | ||
| 19020-MM9-003 | RADIATOR, L. (TOYO) | ||
| 19030-MS8-000 | MOTOR ASSY., FAN | ||
| 19032-MAW-760 | GRILLE, R. RADIATOR | ||
| 19032-MM9-000 | GRILLE, R. RADIATOR | ||
| 19035-MAW-760 | GRILLE, L. RADIATOR (SOURCE: VINTAGE PARTS INC.) | ||
| 19035-MM9-000 | GRILLE, L. RADIATOR | ||
| 1 | 19040-MF5-751 | FAN, COOLING (TOYO) | 1 |
| 4 | 19051-KA3-830 | RUBBER, RADIATOR MOUNTING | 4 |
| 4 | 19052-KA3-710 | COLLAR, RADIATOR MOUNTING | 4 |
| 19069-MM9-000 | JOINT, WATER HOSE | ||
| 1 | 19104-ME9-000 | CAP, RESERVE TANK | 1 |
| 1 | 19107-MG8-000 | GASKET, RESERVE TANK | 1 |
| 19107-MM9-000 | TUBE, OVERFLOW | ||
| 1 | 19108-MB0-000 | TUBE, LEVEL | 1 |
| 1 | 19108-MB0-010 | TUBE, LEVEL | 1 |
| 19108-MM9-000 | TUBE, RESERVE TANK | ||
| 19110-MM9-000 | TANK, RESERVE | ||
| 1 | 19045-MZ1-621 | CAP, RADIATOR | 1 |
| 1 | 19111-MM9-000 | CAP ASSY. | 1 |
| 19222-MM9-000 | HOSE, WATER (5) | ||
| 19223-MM9-000 | HOSE, WATER (6) | ||
| 19231-MM9-000 | HOSE, WATER (7) | ||
| 19232-MM9-000 | HOSE, L. WATER | ||
| 19234-MS6-620 | HOSE, R. WATER (NO.8) | ||
| 19235-MM9-000 | TUBE, RADIATOR JOINT | ||
| 19241-MM9-000 | CLAMP, L. RADIATOR | ||
| 1 | 19300-KE8-000 | THERMOSTAT ASSY. | 1 |
| 19311-MM9-000 | CASE, THERMOSTAT | ||
| 19312-MS8-010 | BRACKET, THERMOSTAT | ||
| 19315-MM9-000 | COVER, THERMOSTAT | ||
| 8 | 19504-KY1-003 | CLAMP, WATER HOSE (25MM) | 8 |
| 2 | 19505-ML3-770 | CLAMP, WATER HOSE | 2 |
| 19515-MM9-000 | CLAMP, WATER HOSE | ||
| 1 | 37750-PC1-004 | THERMO UNIT (DENSO) | 1 |
| 1 | 37760-MR1-003 | SWITCH ASSY., THERMO | 1 |
| 4 | 90315-MK3-003 | NUT, SERRATE (5MM) | 4 |
| 4 | 90404-PD1-000 | WASHER, PLAIN (22X6X1.6) | 4 |
| 2 | 90499-SB0-000 | STOPPER A | 2 |
| 2 | 61104-422-000 | COLLAR, SETTING | 2 |
| 2 | 90501-MA3-770 | COLLAR (6.2X12) | 2 |
| 4 | 90556-MB4-000 | WASHER, FR. SIDE COVER | 4 |
| 1 | 91307-PH7-660 | O-RING (13.5X1.4) | 1 |
| 1 | 91307-611-000 | O-RING (13.5X1.4) | 1 |
| 1 | 91311-KE8-000 | O-RING (47.5X2) | 1 |
| 4 | 95002-02120 | CLIP, TUBE (B12) | 4 |
| 2 | 95002-41200-08 | CLAMP, TUBE (D12) | 2 |
| 1 | 95701-06018-00 | BOLT, FLANGE (6X18) | 1 |
| 1 | 95701-06020-08 | BOLT, FLANGE (6X20) | 1 |
| 2 | 96000-06020-07 | BOLT, FLANGE (6X20) | 2 |
| 2 | 96001-06020-07 | BOLT, FLANGE (6X20) | 2 |
| 1 | 96001-06010-00 | BOLT, FLANGE (6X10) | 1 |
| 2 | 96001-06010-07 | BOLT, FLANGE (6X10) | 2 |
| 4 | 96300-06012-07 | BOLT, FLANGE (6X12) | 4 |
| 4 | 96500-06012-07 | BOLT, FLANGE (6X12) | 4 |
| 96300-06020-07 | BOLT, FLANGE (6X20) (SOURCE: VINTAGE PARTS INC.) | ||
| 96500-06020-07 | BOLT, FLANGE (6X20) | ||
| 4 | 96300-06025-07 | BOLT, FLANGE (6X25) | 4 |
| 4 | 96500-06025-07 | BOLT, FLANGE (6X25) | 4 |
| 2 | 96600-06012-07 | BOLT, SOCKET (6X12) | 2 |
| 2 | 96700-06012-07 | BOLT, SOCKET (6X12) | 2 |
