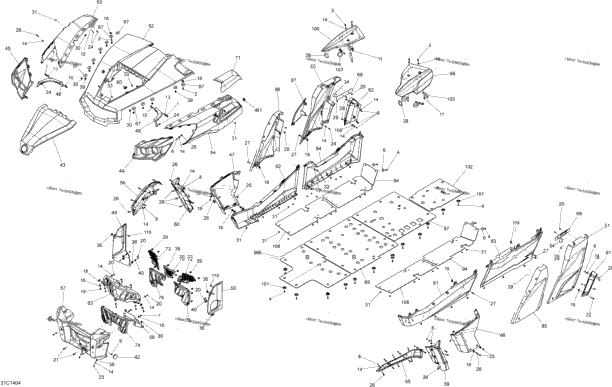

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 207661644 | Hex. Flange Screw M6 X 16 | 4 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 6 | 207662084 | Hex. Flange Screw M6 X 20 | 6 |
| 1 | 210262080 | Hex. Forming Screw M6 X 20 | 1 |
| 4 | 224081301 | Flat Washer | 4 |
| 2 | 232081414 | Hex. Nut M8 Model-DPS | 2 |
| 1 | 232561434 | Elastic Stop Nut M6 | 1 |
| 2 | 233251434 | Flange Elastic Nut M5 | 2 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 4 | 233261494 | Hex. Elastic Flange Nut M6 | 4 |
| 4 | 234051410 | Flat Washer M5 | 4 |
| 4 | 234061600 | Stainless Flat Washer M6 | 4 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 2 | 234081410 | Flat Washer 8 mm Model-DPS | 2 |
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 2 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 | 2 |
| 1 | 250000048 | Panel Nut M6 X 1.0 | 1 |
| 1 | 250000128 | Torx Truss Screw M6 X 20 | 1 |
| 1 | 250000146 | Truss Head Torx Screw K50 X 16 | 1 |
| 250000197 | Torx Truss Screw M8 X 30 Model-DPS | ||
| 1 | 250000215 | Torx Screw M6 X 45 | 1 |
| 4 | 250000261 | Torx Screw M6 X 16 | 4 |
| 1 | 250000297 | Truss Head Torx Screw K50 X 20 | 1 |
| 1 | 250000350 | Torx Truss Screw M6 X 20 | 1 |
| 1 | 250000371 | Torx Screw M6 X 30 Stainless | 1 |
| 4 | 250000398 | Torx Truss Screw M6 X 30 | 4 |
| 7 | 250000488 | Torx Truss Screw M6 X 20 Model-XT | 7 |
| 2 | 705005156 | Oval Washer | 2 |
| 1 | 293150089 | Tuflok Plastic Rivet | 1 |
| 1 | 293150104 | Pop Rivet 3/16" | 1 |
| 2 | 250200025 | Washer M5 | 2 |
| 4 | 293150104 | Pop Rivet 3/16" | 4 |
| 2 | 293250318 | SEAL TRAY | 2 |
| 293450274 | Insert | ||
| 6 | 293720053 | Grommet | 6 |
| 2 | 293750008 | Tie Wrap 368 mm | 2 |
| 1 | 517302785 | Edge Clip | 1 |
| 4 | 517303439 | Knob | 4 |
| 1 | 517303756 | Grommet | 1 |
| 2 | 705002409 | Amber Reflector | 2 |
| 1 | 705007072 | YELLOW REMOVABLE HOOD Model-Yellow | 1 |
| 1 | 705007075 | HOOD B-005 Model-Camo | 1 |
| 1 | 705007076 | MAGNESIUM REMOVABLE HOOD Model-Magnesium | 1 |
| 1 | 705002885 | LH Front Facia | 1 |
| 1 | 705002886 | RH Front Facia | 1 |
| 1 | 705002887 | Yellow LH Front Lateral Pannel Model-DPS | 1 |
| 1 | 705002887 | Yellow LH Front Lateral Pannel Model-XT Yellow | 1 |
| 1 | 705006378 | PANEL_BODY FL B-005 Model-Camo | 1 |
| 1 | 705006382 | Magnesium-LH Front Lateral Pannel Model-Magnesium | 1 |
| 1 | 705002888 | Yellow RH Front Lateral Pannel Model-DPS | 1 |
| 1 | 705002888 | Yellow RH Front Lateral Pannel Model-XT Yellow | 1 |
| 1 | 705006379 | PANEL_BODY FR B-005 Model-Camo | 1 |
| 1 | 705006383 | MAGNESIUM RH FRONT LATERAL PANNEL Model-Magnesium | 1 |
| 2 | 705002891 | Facia Front Support | 2 |
| 1 | 705002894 | RH Deflector | 1 |
| 1 | 705002895 | LH Deflector Model-DPS | 1 |
| 1 | 705005113 | LH Deflector Model-XT | 1 |
| 1 | 705006112 | Yellow LH Rear Lateral Pannel Model-DPS | 1 |
| 1 | 705006112 | Yellow LH Rear Lateral Pannel Model-XT Yellow | 1 |
| 1 | 705006122 | PANEL_BODY REAR L B-005 Model-Camo | 1 |
| 1 | 705006126 | MAGNESIUM LH REAR LATERAL PANNEL Model-Magnesium | 1 |
| 1 | 705002915 | Yellow Fixed Hood Model-Yellow | 1 |
| 1 | 705004380 | HOOD B-005 Model-Camo | 1 |
| 1 | 705005289 | Magnesium Fixed Hood Model-Magnesium | 1 |
| 1 | 705006755 | Yellow RH Front Fender Model-DPS | 1 |
| 1 | 705006755 | Yellow RH Front Fender Model-XT Yellow | 1 |
| 1 | 705006769 | FENDER FR B-005 Model-Camo | 1 |
| 1 | 705006773 | Magnesium RH Front Fender Model-Magnesium | 1 |
| 1 | 705006754 | Yellow LH Front Fender Model-DPS | 1 |
| 1 | 705006754 | Yellow LH Front Fender Model-XT Yellow | 1 |
| 1 | 705006768 | FENDER FL B-005 Model-Camo | 1 |
| 1 | 705006772 | Magnesium LH Front Fender Model-Magnesium | 1 |
| 1 | 705003058 | LH Upper Front Mudguards Model-XT | 1 |
| 1 | 705003059 | RH Upper Front Mudguards Model-XT | 1 |
| 1 | 705003306 | Front Facia | 1 |
| 1 | 705003399 | Bottom Deflector Model-DPS | 1 |
| 1 | 705003601 | LH Lower Front Mudguards Model-XT | 1 |
| 1 | 705003602 | RH Lower Front Mudguards Model-XT | 1 |
| 1 | 705003605 | LH Lower Rear Mudguards Model-XT | 1 |
| 1 | 705003606 | RH Lower Rear Mudguards Model-XT | 1 |
| 1 | 705003629 | FASCIA UP B-160 | 1 |
| 12 | 705003841 | Support Plate | 12 |
| 2 | 705004261 | Support Plate | 2 |
| 1 | 705004336 | Center Upper Facia Protector | 1 |
| 1 | 705004337 | Yellow CVT Inlet Cover Model-Yellow | 1 |
| 1 | 705004382 | CAMO CVT INLET COVER Model-Camo | 1 |
| 1 | 705005287 | Magnesium CVT Inlet Cover Model-Magnesium | 1 |
| 1 | 705004350 | LH Upper Facia Protector | 1 |
| 1 | 705004351 | RH Upper Facia Protector | 1 |
| 1 | 705004755 | Lower Front Facia Protector | 1 |
| 1 | 705004819 | LH Lower Rear Facia Protector | 1 |
| 1 | 705004820 | RH Lower Rear Facia Protector | 1 |
| 1 | 705005423 | Black, LH Lower Panel Model-DPS | 1 |
| 1 | 705007035 | Black, LH Lower Panel Model-XT | 1 |
| 1 | 705005424 | Black, RH Lower Panel Model-DPS | 1 |
| 1 | 705007036 | Black, RH Lower Panel Model-XT | 1 |
| 1 | 705005425 | Black, LH Rear Lower Panel | 1 |
| 1 | 705005426 | Black, RH Rear Lower Panel | 1 |
| 1 | 705005427 | PANEL_CAGE CTRL L B-190 Model-Yellow | 1 |
| 1 | 705007022 | CAMO LH CENTER CAGE PANEL Model-Camo | 1 |
| 1 | 705007023 | MAGNESIUM LH CENTER CAGE PANEL Model-Magnesium | 1 |
| 1 | 705005428 | Yellow RH Center Cage Panel Model-Yellow | 1 |
| 1 | 705007024 | CAMO RH CENTER CAGE PANEL Model-Camo | 1 |
| 1 | 705007025 | MAGNESIUM RH CENTER CAGE PANEL Model-Magnesium | 1 |
| 1 | 705005437 | YELLOW RH PANEL COVER Model-Yellow | 1 |
| 1 | 705007027 | CAMO RH PANEL COVER Model-Camo | 1 |
| 1 | 705007028 | MAGNESIUM RH PANEL COVER Model-Magnesium | 1 |
| 1 | 705005939 | Center Skid Plate | 1 |
| 705005948 | YELLOW RH REAR LATERAL PANNEL Model-DPS | ||
| 1 | 705006874 | YELLOW RH REAR LATERAL PANNEL Model-XT Yellow | 1 |
| 1 | 705007621 | CAMO RH REAR LATERAL PANNEL Model-Camo | 1 |
| 1 | 705007622 | MAGNESIUM RH REAR LATERAL PANNEL Model-Magnesium | 1 |
| 2 | 705007038 | RH Lateral Skid Plate | 2 |
| 1 | 705007055 | Middle Protector Plate | 1 |
| 1 | 705007056 | Rear Protector Plate | 1 |
| 1 | 705007058 | YELLOW LH TOP CENTER CAGE COVER Model-XT Yellow | 1 |
| 1 | 705008452 | Black, LH Top Center Cage Cover Model-Camo | 1 |
| 1 | 705008454 | Magnesium LH Top Center Cage Cov Model-Magnesium | 1 |
| 1 | 705007059 | YELLOW RH TOP CENTER CAGE COVER Model-XT Yellow | 1 |
| 1 | 705008453 | Black, RH Top Center Cage Cover Model-Camo | 1 |
| 1 | 705008455 | Magnesium RH Top Center Cage Cover Model-Magnesium | 1 |
| 35 | 705007171 | Cup | 35 |
| 1 | 705007227 | Rear Protector Plate | 1 |
| 6 | 705005626 | "P" Bracket, 2" Dia. | 6 |
| 2 | 705008421 | Side Protector Plate | 2 |
| 1 | 250200086 | Flat Washer Model-XT | 1 |
| 2 | 708000759 | Rubber Stopper | 2 |
