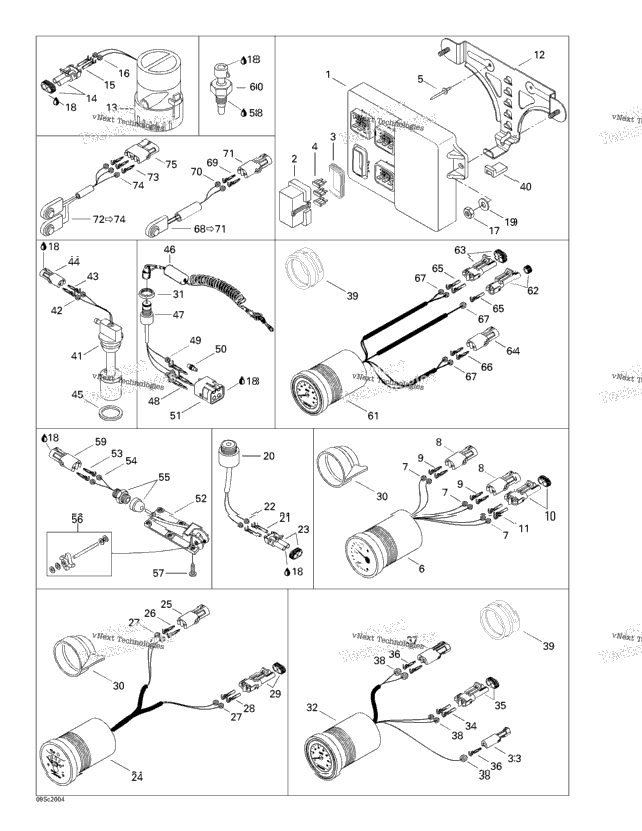

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 278001526 | ELECTRONIC MODULE Includes 1 - 4. | 1 |
| 1 | 278001069 | Fuse Holder Cover | 1 |
| 278001070 | Cover Seal | ||
| 2 | 278000343 | Fuse, 15 Amperes | 2 |
| 2 | 278000704 | FUSE, 7.5 AMPERES | 2 |
| 2 | 278000344 | Fuse, 5 Amperes | 2 |
| 2 | 293150039 | Pop Rivet 3/16" | 2 |
| 278001339 | VTS Gauge Includes 6 - 11. | ||
| 6 | 278000218 | Wire Seal | 6 |
| 2 | 278000217 | Female Housing, 2 Circuits | 2 |
| 4 | 278000222 | Male Terminal | 4 |
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 2 | 278000223 | Female Terminal | 2 |
| 291001194 | Module Support Ass'y | ||
| 1 | 278001176 | Bilge Pump Includes 13 - 16. | 1 |
| 2 | 278000218 | Wire Seal | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 278001565 | Buzzer Ass'y Includes 20 - 23. | ||
| 278001389 | Fuel/Oil Gauge Includes 24 - 29. | ||
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 2 | 278000222 | Male Terminal | 2 |
| 4 | 278000218 | Wire Seal | 4 |
| 293720005 | GAUGE SUPPORT | ||
| 1 | 278000508 | Safety Switch Nut | 1 |
| 278001340 | Speedometer Includes 32 - 38. | ||
| 1 | 278000161 | Female Housing, 1 Circuit | 1 |
| 3 | 278000222 | Male Terminal | 3 |
| 5 | 278001065 | Wire Seal | 5 |
| 293720047 | Gauge Support | ||
| 1 | 278001166 | MODULE PROTECTOR | 1 |
| 278001402 | Oil Sensor Includes 41 - 45. | ||
| 1 | 293720008 | Grommet | 1 |
| 1 | 278001543 | Safety Lanyard | 1 |
| 278000977 | Safety Switch Includes 47 - 51. | ||
| 3 | 278000218 | Wire Seal | 3 |
| 1 | 278000216 | Wire Seal | 1 |
| 278000890 | FEMALE CONNECTOR, 4 CIRCUITS | ||
| 278000970 | Speed Sensor Ass’Y Includes 52 - 56. | ||
| XXXX | Not Available As Spare Part - Male Terminal | ||
| XXXX | Not Available As Spare Part - Wire Seal | ||
| 1 | 293710031 | ELECTRIC CONNECTION | 1 |
| 295500108 | Paddle Wheel Kit | ||
| 250000021 | SCREW-CTSK.FL.HD.PH.DIN.965A-A2 | ||
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 1 | 278001016 | Temperature Sensor | 1 |
| 278001381 | Tachometer Includes 61 - 67. | ||
| 278000219 | MALE HOUSING, 1 CIRCUIT | ||
| 3 | 278000223 | Female Terminal | 3 |
| 5 | 278000218 | Wire Seal | 5 |
| 278001358 | Ignition Switch Ass'y (Stop / Start) Includes 68 - 71. | ||
| 278001533 | VTS Switch Includes 72 - 74. | ||
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
