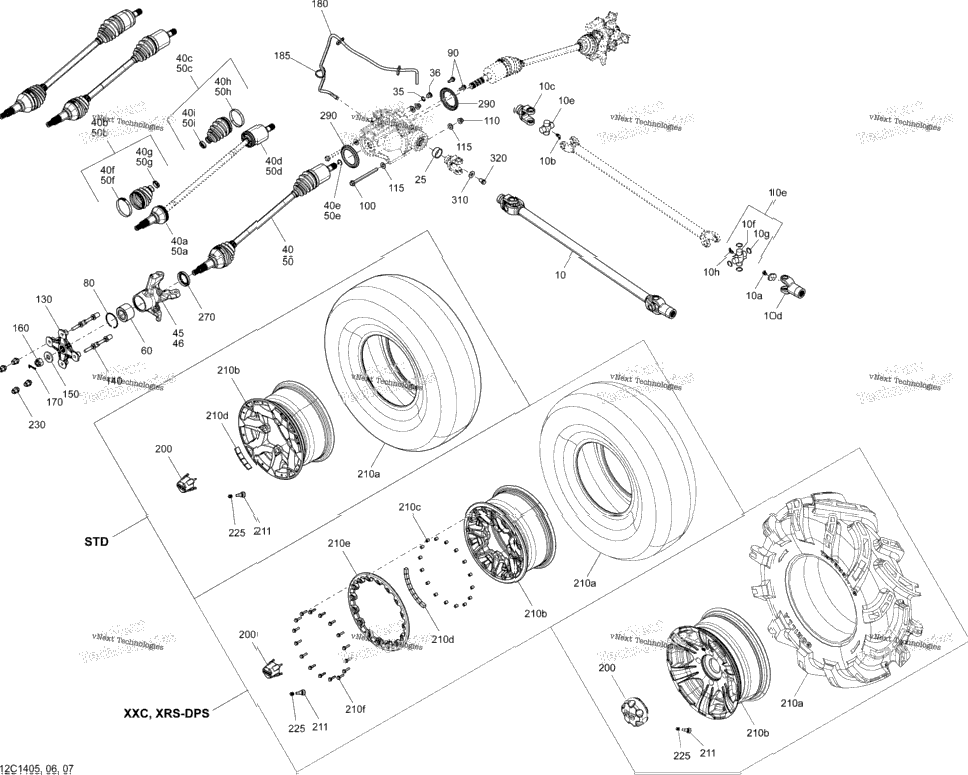

Список запчастей

№	Артикул	Название	Кол-во
1	705401196	Drive Axle Ass'y	1
1	703500815	Grease Fitting	1
1	703500813	GREASE FITTING	1
1	715900231	Yoke Joint Cover 715900483	1
1	715900232	Yoke Joint	1
1	703500814	Unit Pack Kit	1
1	715900183	U-Joint	1
	715900117	SNAP RING
1	705400036	Wear Ring	1
1	705500504	Fill Level Plug	1
1	705500506	Copper Washer	1
1	705401236	RH Constant-Speed Universal Joint STD	1
1	705401236	RH Constant-Speed Universal Joint XRS, XRS-DPS	1
1	705401344	CV Joint STD	1
1	705401344	CV Joint XRS, XRS-DPS	1
1	705401345	Boot Kit, Wheel Side STD	1
2	705400780	Wear Sleeve	2
1	705401345	Boot Kit, Wheel Side XRS, XRS-DPS	1
1	705401346	Boot Kit, Differential Side STD	1
1	705401346	Boot Kit, Differential Side XRS, XRS-DPS	1
1	705401348	RH Plunging Joint STD	1
1	705401348	RH Plunging Joint XRS, XRS-DPS	1
1	705401349	Circlip Joint STD	1
1	705401349	Circlip Joint XRS, XRS-DPS	1
1	715900282	Oetiker Clamp STD	1
1	715900282	Oetiker Clamp XRS, XRS-DPS	1
1	715900283	Oetiker Clamp, Small STD	1
1	715900283	Oetiker Clamp, Small XRS, XRS-DPS	1
1	715900284	Oetiker Clamp, Large STD	1
1	715900284	Oetiker Clamp, Large XRS, XRS-DPS	1
1	715900261	Oetiker Clamp, Small STD	1
2	715900261	Oetiker Clamp, Small XRS, XRS-DPS	2
1	705401548	LH Front Knuckle	1
1	705401549	RH Front Knuckle	1
1	705401235	LH Constant-Speed Universal Joint STD	1
1	705401235	LH Constant-Speed Universal Joint XRS, XRS-DPS	1
2	705401345	Boot Kit, Wheel Side STD	2
2	705401346	Boot Kit, Differential Side STD	2
1	705401350	LH Plunging Joint STD	1
1	705401350	LH Plunging Joint XRS, XRS-DPS	1
2	705401349	Circlip Joint STD	2
1	715900261	Oetiker Clamp, Small XRS, XRS-DPS	1
2	293350040	Cone Bearing	2
2	293370019	Circlip	2
2	207582044	Hex. Flange Screw M8 X 20, Scotch Grip	2
2	230603046	Hex. Flange Screw, M10 X 130	2
2	233201436	Hex. Flange Elastic Nut M10	2
4	234201474	Conical Spring Washer 10 mm	4
2	705501900	Wheel Hub	2
8	250300051	Wheel Stud	8
2	250200049	Spring Washer	2
2	250100047	Hex. Castellated Nut M18	2
2	250400036	Cotter Pin	2
1	219704410	Polyurethane Hose 10000Mm Long	1
3	414115200	Tie-Rap 180 mm	3
2	705400928	Wheel Cap	2
2	705401385	Front Tire Maxxis 27X9X12 XRS Black	2
2	705401385	Front Tire Maxxis 27X9X12 XRS-DPS Black, Except EUR	2
2	705401386	Front Tire XRS-DPS Black EUR	2
2	705401385	Front Tire Maxxis 27X9X12 XRS-DPS White, Except EUR	2
2	705401385	Front Tire Maxxis 27X9X12 XRS-DPS Red, Except EUR	2
2	705401385	Front Tire Maxxis 27X9X12 XRS White	2
2	705401385	Front Tire Maxxis 27X9X12 STD	2
2	705401155	Front Rim XRS Black	2
2	705401155	Front Rim XRS-DPS Black, Except EUR	2
2	705401155	Front Rim XRS-DPS Black EUR	2
2	705401155	Front Rim XRS-DPS White, Except EUR	2
2	705401155	Front Rim XRS-DPS Red, Except EUR	2
2	705401155	Front Rim XRS White	2
2	705401417	Deep Black, 12" X 6 Rim STD	2
32	293450317	Insert XRS Black	32
32	293450317	Insert XRS-DPS Black, Except EUR	32
32	293450317	Insert XRS-DPS Black EUR	32
32	293450317	Insert XRS-DPS White, Except EUR	32
32	293450317	Insert XRS-DPS Red, Except EUR	32
32	293450317	Insert XRS White	32
1	219704465	1/2 OZ Weight STD	1
2	705401329	Yellow Reinforcement Disc XRS Black	2
2	705401329	Yellow Reinforcement Disc XRS-DPS Black, Except EUR	2
3	705401329	Yellow Reinforcement Disc XRS-DPS Black EUR	3
2	705401445	Red Reinforcement Disc XRS-DPS White, Except EUR	2
2	705401445	Red Reinforcement Disc XRS-DPS Red, Except EUR	2
2	705401445	Red Reinforcement Disc XRS White	2
32	250000435	Hex. Flange Screw M6 X 25 XRS Black	32
32	250000435	Hex. Flange Screw M6 X 25 XRS-DPS Black, Except EUR	32
32	250000435	Hex. Flange Screw M6 X 25 XRS-DPS Black EUR	32
32	250000435	Hex. Flange Screw M6 X 25 XRS-DPS White, Except EUR	32
32	250000435	Hex. Flange Screw M6 X 25 XRS-DPS Red, Except EUR	32
32	250000435	Hex. Flange Screw M6 X 25 XRS White	32
1	705400193	Rim Valve With Cap	1
2	293000110	Valve Cap	2
8	250100100	Black Wheel Nut M10 X 1.25	8
2	293250246	O-Ring	2
1	250200102	Flat Washer M12	1
	250000378	HEX FLANGED SCREW M12 X 16, SCOTCH GRIP
