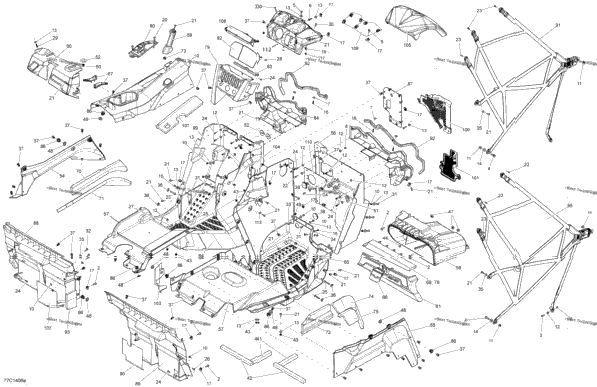

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 6 | 207662034 | Hex. Flange Screw M6 X 20 | 6 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
| 2 | 207682544 | Hex. Flange Screw M8 X 25 | 2 |
| 8 | 210262080 | Hex. Forming Screw M6 X 20 | 8 |
| 1 | 210262580 | Hex. Flange Forming Screw M6 X 25 | 1 |
| 4 | 224060201 | Flat Washer | 4 |
| 3 | 233251494 | Elastic Flange Nut M5 | 3 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 19 | 233261494 | Hex. Elastic Flange Nut M6 | 19 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 | 4 |
| 32 | 234062410 | Flat Washer 6 mm | 32 |
| 30 | 234062670 | Stainless Steel Flat Washer | 30 |
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 1 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 | 1 |
| 4 | 241152060 | Hex. Flange Screw K50 X 20 | 4 |
| 31 | 250000048 | Panel Nut M6 X 1.0 | 31 |
| 715002190 | CENTRAL CONSOLE ASS'Y | ||
| 2 | 250000079 | Panel Nut M5 X 0.8 | 2 |
| 2 | 250000081 | Torx Screw M6 X 25 | 2 |
| 27 | 250000128 | Torx Truss Screw M6 X 20 | 27 |
| 3 | 250000130 | Torx Screw M5 X 20 | 3 |
| 6 | 250000145 | Torx Screw M5 X 14 | 6 |
| 26 | 250000146 | Truss Head Torx Screw K50 X 16 | 26 |
| 4 | 250000215 | Torx Screw M6 X 45 | 4 |
| 1 | 250000261 | Torx Screw M6 X 16 | 1 |
| 1 | 250000284 | Torx Screw M6 x 25 | 1 |
| 4 | 250000294 | Torx Screw K40 X 16 | 4 |
| 1 | 250000297 | Truss Head Torx Screw K50 X 20 | 1 |
| 2 | 250000300 | Torx Screw M5 X 25 | 2 |
| 15 | 250000335 | Socket Head Screw M6 X 20 | 15 |
| 2 | 250000350 | Torx Truss Screw M6 X 20 | 2 |
| 4 | 250000398 | Torx Truss Screw M6 X 30 | 4 |
| 1 | 250200025 | Washer M5 | 1 |
| 4 | 250200040 | Flat Washer | 4 |
| 4 | 293100003 | Nut Welded, M6 | 4 |
| 73 | 293150089 | Tuflok Plastic Rivet | 73 |
| 2 | 293250242 | Rubber Cover | 2 |
| 1 | 293250318 | SEAL TRAY | 1 |
| 293250319 | SEAL TRAY | ||
| 293450274 | Insert | ||
| 1 | 293830005 | Rubber Bumper | 1 |
| 3 | 414859400 | CAP | 3 |
| 24 | 503189273 | Washer | 24 |
| 2 | 506151252 | Washer | 2 |
| 1 | 517302785 | Edge Clip | 1 |
| 4 | 705003668 | Oblong Grommet | 4 |
| 3 | 705003841 | Support Plate | 3 |
| 1 | 707900001 | LH Side Console | 1 |
| 1 | 707900002 | RH Side Console | 1 |
| 1 | 707900004 | RH Front Floor | 1 |
| 1 | 707900218 | LH Under Seat Plate | 1 |
| 1 | 707900006 | RH Under Seat Plate | 1 |
| 1 | 707900046 | Storage Bin | 1 |
| 1 | 707900011 | Passenger Handle | 1 |
| 1 | 715001250 | Dashboard Ass'y | 1 |
| 1 | 715001263 | Bin Cover Ass'y | 1 |
| 1 | 707900022 | LH Lower Floor | 1 |
| 1 | 707900023 | RH Lower Floor | 1 |
| 1 | 707900031 | Latch | 1 |
| 2 | 707900036 | Cup Retainer | 2 |
| 1 | 707900038 | Trim Glove Box | 1 |
| 1 | 707900043 | LH Upper Lateral Console Foam | 1 |
| 1 | 707900044 | LH Lower Lateral Console Foam | 1 |
| 1 | 707900045 | RH Lateral Console Foam | 1 |
| 1 | 707900048 | Connector Tube | 1 |
| 1 | 707900055 | RH Lateral Console Foam | 1 |
| 1 | 707900056 | RH Lateral Console Foam | 1 |
| 1 | 707900062 | Trim Glove Box | 1 |
| 1 | 715002187 | Central Dashboard Ass'y | 1 |
| 1 | 707900070 | Lever Indicator | 1 |
| 1 | 707900104 | GPS Cover And Radio Control | 1 |
| 1 | 219704353 | Was 271000110 Protection Trim | 1 |
| 1 | 707900113 | LH FLOOR SUPPORT | 1 |
| 24 | 707900133 | Insert | 24 |
| 1 | 707900204 | Deflector | 1 |
| 1 | 707900165 | DEFLECTOR_BODY PANEL REAR L | 1 |
| 1 | 707900166 | DEFLECTOR_BODY PANEL REAR R | 1 |
| 1 | 707900167 | Heat Shield | 1 |
| 1 | 707900171 | LH Safety Net | 1 |
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 1 | 707900183 | Heat Shield | 1 |
| 1 | 707900172 | RH Safety Net | 1 |
| 1 | 707900175 | LH Front Upper Floor | 1 |
| 1 | 707900178 | Grille | 1 |
| 1 | 707900180 | Grille | 1 |
| 1 | 707900182 | Heat Shield | 1 |
| 1 | 707900184 | Heat Shield | 1 |
| 1 | 707900193 | Front Side Dash Panel | 1 |
| 1 | 707900200 | DASHBOARD CAP | 1 |
| 1 | 707900214 | Front Central Console Foam | 1 |
| 1 | 707900215 | CENTRAL FILTER | 1 |
| 1 | 707900216 | DASHBOARD COVER | 1 |
| 1 | 707900217 | Hose Support | 1 |
| 3 | 732610072 | Push Nut | 3 |
| 1 | 707900199 | Upper Central Console Ass'y | 1 |
