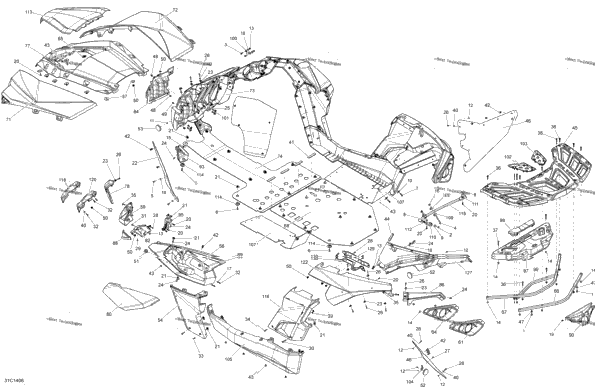

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 207561634 | Hex. Flange Screw M6 X 16, Scotch Grip | 2 |
| 2 | 207562544 | Hex. Flange Screw M6 X 25 | 2 |
| 2 | 207662084 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 207687044 | Hex. Flange Screw M8 X 70 | 2 |
| 4 | 210261680 | Hex. Flange Screw M6 X 16 | 4 |
| 22 | 210262080 | Hex. Forming Screw M6 X 20 | 22 |
| 4 | 210262580 | Hex. Flange Forming Screw M6 X 25 | 4 |
| 2 | 224060201 | Flat Washer | 2 |
| 2 | 224061201 | Flat Washer | 2 |
| 4 | 224081301 | Flat Washer | 4 |
| 2 | 233251414 | Hex. Flange Elastic Nut M5 Except Model-Europe | 2 |
| 8 | 233251494 | Elastic Flange Nut M5 | 8 |
| 12 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 12 |
| 16 | 233261434 | Flange Elastic Nut M6 | 16 |
| 2 | 233261494 | Hex. Elastic Flange Nut M6 | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 4 | 234051410 | Flat Washer M5 | 4 |
| 14 | 234062670 | Stainless Steel Flat Washer | 14 |
| 1 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 | 1 |
| 12 | 241152060 | Hex. Flange Screw K50 X 20 | 12 |
| 25 | 250000048 | Panel Nut M6 X 1.0 | 25 |
| 2 | 705007827 | Inner Fender | 2 |
| 18 | 250000079 | Panel Nut M5 X 0.8 | 18 |
| 22 | 250000128 | Torx Truss Screw M6 X 20 | 22 |
| 4 | 250000129 | Torx Screw M6 X 16 | 4 |
| 22 | 250000130 | Torx Screw M5 X 20 | 22 |
| XXX | Not Available As Spare Parts | ||
| 6 | 250000146 | Truss Head Torx Screw K50 X 16 | 6 |
| 2 | 250000202 | Self Tapping Screw #8 X 5/8 | 2 |
| 1 | 250000215 | Torx Screw M6 X 45 | 1 |
| 2 | 250000284 | Torx Screw M6 x 25 | 2 |
| 10 | 250000297 | Truss Head Torx Screw K50 X 20 | 10 |
| 4 | 250000350 | Torx Truss Screw M6 X 20 | 4 |
| 2 | 250000398 | Torx Truss Screw M6 X 30 | 2 |
| 2 | 250000488 | Torx Truss Screw M6 X 20 | 2 |
| 8 | 250000646 | Black, Torx Screw M6 X 35 | 8 |
| 2 | 250000647 | Torx Screw M6 X 45 | 2 |
| 2 | 250000648 | Torx Screw M6 X 60 | 2 |
| 4 | 250100129 | PUSH NUT | 4 |
| 8 | 250200025 | Washer M5 | 8 |
| 4 | 291001932 | Pad | 4 |
| 12 | 293150089 | Tuflok Plastic Rivet | 12 |
| 26 | 293150104 | Pop Rivet 3/16" | 26 |
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 715002367 | Rear Rack KIT | ||
| 2 | 705007828 | Deflector | 2 |
| 293450274 | Insert | ||
| 5 | 293830005 | Rubber Bumper | 5 |
| 2 | 414644300 | Black, Dart | 2 |
| 24 | 517302785 | Edge Clip | 24 |
| 2 | 517303756 | Grommet | 2 |
| 4 | 705002408 | Red Reflector Except Model-Europe | 4 |
| 2 | 705002409 | Amber Reflector Except Model-Europe | 2 |
| 1 | 705002887 | Yellow LH Front Lateral Pannel | 1 |
| 1 | 705002888 | Yellow RH Front Lateral Pannel | 1 |
| 2 | 705003264 | Grommet | 2 |
| 11 | 705003841 | Support Plate | 11 |
| 1 | 705004508 | LH Front Facia | 1 |
| 1 | 705004509 | RH Front Facia | 1 |
| 1 | 705004731 | LH Rear Facia Except Model-Europe | 1 |
| 1 | 705004732 | RH Rear Facia Except Model-Europe | 1 |
| 2 | 705005156 | Oval Washer | 2 |
| 1 | 705005469 | Tube | 1 |
| 1 | 705005470 | Tube | 1 |
| 1 | 705005480 | Rear Skid Plate | 1 |
| 1 | 705006558 | Black LH Front Fender | 1 |
| 1 | 705006559 | Black RH Front Fender | 1 |
| 1 | 705005781 | Yellow LH Fixe Hood | 1 |
| 1 | 705005782 | Yellow RH Fixe Hood | 1 |
| 1 | 705005784 | Front Radiator Grille | 1 |
| 1 | 705005798 | Front Skid Plate | 1 |
| 1 | 705007960 | FIXE CENTER HOOD | 1 |
| 1 | 705005824 | YELLOW LH BUMPER CAP | 1 |
| 1 | 705005825 | YELLOW RH BUMPER CAP | 1 |
| 1 | 705006566 | Black LH Cover Front Fender | 1 |
| 1 | 705006567 | Black RH Cover Front Fender | 1 |
| 1 | 705006562 | Black LH Front Fender Trim | 1 |
| 1 | 705006563 | Black RH Front Fender Trim | 1 |
| 1 | 705005983 | LH Rear Radiator Grille | 1 |
| 1 | 705005984 | RH Rear Radiator Grille | 1 |
| 1 | 705006583 | TRIM_HEADLIGHT REAR L B-160 | 1 |
| 1 | 705006584 | TRIM_HEADLIGHT REAR R B-160 | 1 |
| 1 | 705005992 | LH Front Facia Trim | 1 |
| 1 | 705005993 | RH Front Facia Trim | 1 |
| 1 | 705005994 | LOGO Support | 1 |
| 1 | 705006038 | LH BUMPER SKID CAP | 1 |
| 1 | 705006039 | RH BUMPER SKID CAP | 1 |
| 1 | 705006078 | LH Front Facia Support | 1 |
| 1 | 705006079 | RH Front Facia Support | 1 |
| 1 | 705006128 | Bagage Central Rack | 1 |
| 1 | 705006132 | Central Bagage Rack Cap | 1 |
| 1 | 705006279 | Bagage Rack Tube | 1 |
| 1 | 705006623 | Clamp | 1 |
| 2 | 705006635 | Radiator Grille Bracket | 2 |
| 1 | 705006713 | LH Bagage Rack Cover | 1 |
| 1 | 705006714 | RH BAGAGE RACK COVER | 1 |
| 1 | 705006991 | LH Lateral Middle Panel | 1 |
| 1 | 705006992 | RH Lateral Middle Panel | 1 |
| 2 | 705007038 | RH Lateral Skid Plate | 2 |
| 4 | 705007044 | Rear Support Facia Clip | 4 |
| 1 | 705007045 | LH Rear Facia Support | 1 |
| 1 | 705007046 | RH Rear Facia Support | 1 |
| 2 | 705007047 | TUBE CONNECTOR | 2 |
| 1 | 705007060 | Black Removable Hood | 1 |
| 22 | 705007171 | Cup | 22 |
| 1 | 705007299 | Body Tube | 1 |
| 1 | 705006000 | Yellow LH Rear Lateral Panel | 1 |
| 1 | 705006001 | RH Rear Lateral Panel | 1 |
| 1 | 705007497 | LH Bumper Grille Except Model-Europe | 1 |
| 1 | 705007498 | RH Bumper Grille Except Model-Europe | 1 |
| 1 | 705006579 | Black LH Rear Fender | 1 |
| 1 | 705006580 | Black RH Rear Fender | 1 |
| 1 | 705007910 | LH Rear Inner Fender | 1 |
| 1 | 705007911 | RH Rear Inner Fender | 1 |
| 2 | 705007917 | Support Plate | 2 |
| 1 | 705007918 | LH REAR FENDER SUPPORT | 1 |
| 1 | 705007919 | RH REAR FENDER SUPPORT | 1 |
