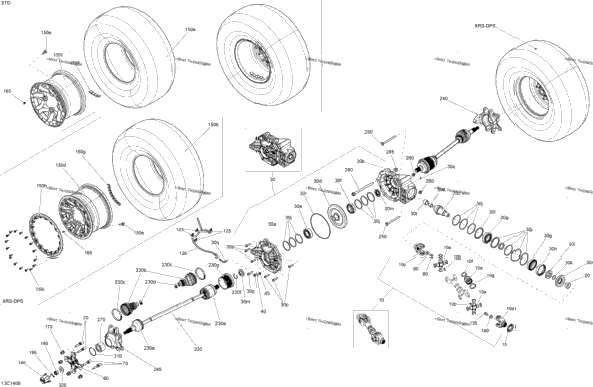

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705501849 | Drive Axle Ass'y Includes 10 to 10g | 1 |
| 1 | 715900118 | Rubber Boot | 1 |
| 2 | 715900239 | GREASE FITTING | 2 |
| 1 | 715900233 | FIXED YOKE | 1 |
| 1 | 715900234 | Fixe Joint | 1 |
| 2 | 715500371 | Universal Joint | 2 |
| 1 | 509000045 | Oetiker Gear Clamp 36.1MM | 1 |
| 1 | 293650138 | Oetiker Gear Clamp 44.0MM | 1 |
| 1 | 705501123 | Protector | 1 |
| 1 | 705400036 | Wear Ring | 1 |
| 1 | 705501912 | Rear Differential Ass'y Includes 30 to 30t | 1 |
| 1 | 705501735 | REAR COVER | 1 |
| 705501736 | PINION COVER | ||
| 1 | 703500838 | Gear 10Teeth Kit | 1 |
| 703500837 | GEAR 36 TEETH KIT | ||
| XXXX | Not Available As Spare Part - Ball Bearing | ||
| 705501740 | NUT | ||
| XXXX | Not Available As Spare Part - Nut | ||
| 1 | 703500839 | Differential Shim Kit | 1 |
| 1 | 705501554 | O-Ring | 1 |
| XXXX | Not Available As Spare Part - Washer | ||
| 2 | 705501556 | Oil Seal | 2 |
| 1 | 705501933 | Oil Seal | 1 |
| 1 | 705501724 | Plug Drain | 1 |
| 7 | 705501562 | Bolt | 7 |
| 1 | 705501584 | Breather Tube | 1 |
| 1 | 705501749 | Oil Seal | 1 |
| XXXX | Not Available As Spare Part - Douille Intérieure | ||
| 1 | 703500840 | Needle Bearing | 1 |
| 1 | 705500504 | Fill Level Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 2 | 705501900 | Wheel Hub | 2 |
| 8 | 250300051 | Wheel Stud | 8 |
| 1 | 250000615 | Screw-Hex.Flange M10 X 16 | 1 |
| 1 | 250200014 | Flat Washer M10 | 1 |
| 4 | 710003168 | Dart Tie Rap 200MM | 4 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 1 | 250000359 | Hex Flange Screw M12 x 16 | 1 |
| 2 | 705400928 | Wheel Cap | 2 |
| 2 | 705501817 | Rear Tire Maxxis 27X11X12 Model-STD | 2 |
| 2 | 705501817 | Rear Tire Maxxis 27X11X12 Model-XRS-DPS | 2 |
| 2 | 705501853 | Deep Black, 12 Inch Rim X 7,5 Model-STD | 2 |
| 2 | 705501522 | Rear Rim Model-XRS-DPS | 2 |
| 2 | 705400193 | Rim Valve With Cap | 2 |
| 1 | 219704465 | 1/2 OZ Weight Model-STD | 1 |
| XXXX | Not Available As Spare Part - 16 GR Weight Model-XRS-DPS | ||
| 2 | 705401329 | Yellow Reinforcement Disc Model-XRSDPS-Black | 2 |
| 2 | 705401445 | Red Reinforcement Disc Model-XRSDPS-White | 2 |
| 32 | 250000435 | Hex. Flange Screw M6 X 25 Model-XRS-DPS | 32 |
| 2 | 293000110 | Valve Cap | 2 |
| 8 | 250100100 | Black Wheel Nut M10 X 1.25 | 8 |
| 1 | 250200102 | Flat Washer M12 | 1 |
| 2 | 250100047 | Hex. Castellated Nut M18 | 2 |
| 2 | 250400036 | Cotter Pin | 2 |
| 2 | 705501948 | Half Shaft Includes 230 to 230g | 2 |
| 2 | 705501863 | CV_JOINT EXT | 2 |
| 4 | 705501864 | Boot Kit Includes 230b to 230d | 4 |
| 4 | 715900241 | Oetiker Clamp, 82.1 mm | 4 |
| 4 | 715900242 | Oetiker Clamp, 27.3 mm | 4 |
| 2 | 705501865 | Plunging Joint | 2 |
| 2 | 705501781 | Circlip | 2 |
| 2 | 705501841 | HEAT DISSIPATOR | 2 |
| 1 | 705501730 | LH Rear Knuckle | 1 |
| 1 | 705501731 | RH Rear Knuckle | 1 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 233201436 | Hex. Flange Elastic Nut M10 | 2 |
| 2 | 293350040 | Cone Bearing | 2 |
| 1 | 230629087 | Hex. Flange Screw M12 X 190 | 1 |
| 1 | 233221416 | Elastic Flange Nut M12 | 1 |
| 2 | 293370019 | Circlip | 2 |
| 2 | 250200049 | Spring Washer | 2 |
