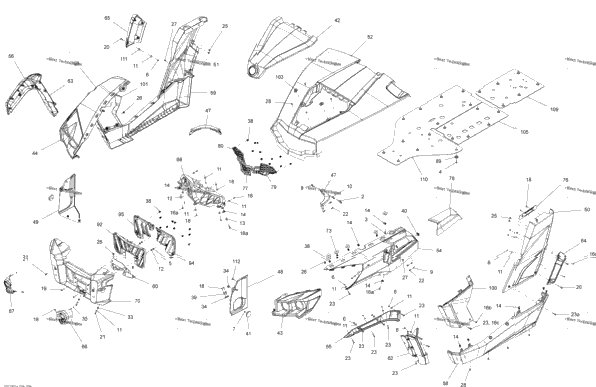

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 207661644 | Hex. Flange Screw M6 X 16 | 4 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 24 | 210262080 | Hex. Forming Screw M6 X 20 | 24 |
| XXX | Not Available As Spare Parts | ||
| 1 | 232561434 | Elastic Stop Nut M6 | 1 |
| 2 | 233251414 | Hex. Flange Elastic Nut M5 Except Europe | 2 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 4 | 234051410 | Flat Washer M5 | 4 |
| 4 | 234061600 | Stainless Flat Washer M6 | 4 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 1 | 250000048 | Panel Nut M6 X 1.0 | 1 |
| 1 | 250000146 | Truss Head Torx Screw K50 X 16 | 1 |
| 1 | 250000215 | Torx Screw M6 X 45 | 1 |
| 4 | 250000261 | Torx Screw M6 X 16 | 4 |
| 1 | 250000297 | Truss Head Torx Screw K50 X 20 | 1 |
| 1 | 250000371 | Torx Screw M6 X 30 Stainless LTD | 1 |
| 5 | 250100129 | PUSH NUT LTD | 5 |
| 1 | 293150089 | Tuflok Plastic Rivet | 1 |
| 2 | 293150104 | Pop Rivet 3/16" | 2 |
| 1 | 293150104 | Pop Rivet 3/16" | 1 |
| 293450274 | Insert | ||
| 6 | 293720053 | Grommet | 6 |
| 2 | 389804300 | Push Nut Europe | 2 |
| 1 | 517302785 | Edge Clip | 1 |
| 4 | 517303439 | Knob | 4 |
| 1 | 517303756 | Grommet | 1 |
| 2 | 705002409 | Amber Reflector Except Europe | 2 |
| 1 | 705007076 | MAGNESIUM REMOVABLE HOOD Magnesium | 1 |
| 1 | 705007077 | White Removable Hood White | 1 |
| 1 | 705002885 | LH Front Facia | 1 |
| 1 | 705002886 | RH Front Facia | 1 |
| 2 | 705002891 | Facia Front Support | 2 |
| 1 | 705005113 | LH Deflector LTD | 1 |
| 1 | 705002894 | RH Deflector | 1 |
| 1 | 705006126 | MAGNESIUM LH REAR LATERAL PANNEL Magnesium | 1 |
| 1 | 705006744 | PANEL_BODY REAR L B-341 White | 1 |
| 1 | 705006127 | Magnesium RH Rear Lateral Pannel Magnesium | 1 |
| 1 | 705006745 | White RH Rear Lateral Pannel White | 1 |
| 1 | 705005289 | Magnesium Fixed Hood Magnesium | 1 |
| 705006036 | HOOD B-341 White | ||
| 1 | 705006773 | Magnesium RH Front Fender Magnesium | 1 |
| 1 | 705006775 | White RH Front Fender White | 1 |
| 1 | 705006772 | Magnesium LH Front Fender Magnesium | 1 |
| 1 | 705006774 | FENDER FL B-341 White | 1 |
| 1 | 705003058 | LH Upper Front Mudguards LTD | 1 |
| 1 | 705003059 | RH Upper Front Mudguards LTD | 1 |
| 1 | 705006993 | LH Middle Side Pannel LTD | 1 |
| 1 | 705006994 | RH Middle Side Pannel LTD | 1 |
| 1 | 705003601 | LH Lower Front Mudguards LTD | 1 |
| 1 | 705003602 | RH Lower Front Mudguards LTD | 1 |
| 1 | 705003605 | LH Lower Rear Mudguards LTD | 1 |
| 1 | 705003606 | RH Lower Rear Mudguards LTD | 1 |
| 1 | 705003627 | LH FLASHER CAP Europe | 1 |
| 1 | 705003628 | RH Flasher Cap Europe | 1 |
| 1 | 705003629 | FASCIA UP B-160 | 1 |
| 1 | 705003306 | Front Facia | 1 |
| 12 | 705003841 | Support Plate | 12 |
| 2 | 705004261 | Support Plate | 2 |
| 1 | 705004336 | Center Upper Facia Protector | 1 |
| 1 | 705005287 | Magnesium CVT Inlet Cover Magnesium | 1 |
| 1 | 705006054 | COVER_AIR INLET FL B-341 White | 1 |
| 1 | 705004350 | LH Upper Facia Protector | 1 |
| 1 | 705004351 | RH Upper Facia Protector | 1 |
| 24 | 705004510 | Cup | 24 |
| 1 | 705004755 | Lower Front Facia Protector | 1 |
| 1 | 705004819 | LH Lower Rear Facia Protector | 1 |
| 1 | 705004820 | RH Lower Rear Facia Protector | 1 |
| 1 | 705006037 | White LH Front Lateral Pannel White | 1 |
| 1 | 705006382 | Magnesium-LH Front Lateral Pannel Magnesium | 1 |
| 1 | 705006059 | PANEL_BODY FR B-341 White | 1 |
| 1 | 705006383 | MAGNESIUM RH FRONT LATERAL PANNEL Magnesium | 1 |
| 2 | 705005156 | Oval Washer | 2 |
| 705005415 | LH PROTECTOR PLATE | ||
| 1 | 705006074 | Rear Protector Plate | 1 |
| 1 | 705006075 | RH PROTECTOR PLATE | 1 |
| 1 | 706200281 | Hardened Washer LTD | 1 |
| 2 | 708000759 | Rubber Stopper | 2 |
| 2 | 250000128 | Torx Truss Screw M6 X 20 | 2 |
| 2 | 250000350 | Torx Truss Screw M6 X 20 | 2 |
| 2 | 250000488 | Torx Truss Screw M6 X 20 LTD | 2 |
| 7 | 250000488 | Torx Truss Screw M6 X 20 LTD Except Europe | 7 |
| 2 | 250000398 | Torx Truss Screw M6 X 30 | 2 |
