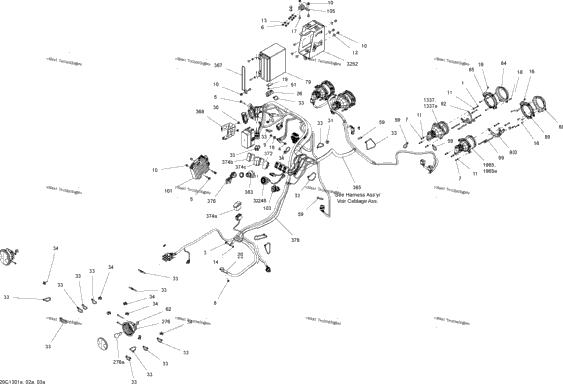

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 12 | 207142544 | Hex. Screw M4 X 25 | 12 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 207663044 | Hex. Flange Screw M6 X 30 | 1 |
| 2 | 207663044 | Hex. Flange Screw M6 X 30 | 2 |
| 2 | 232061600 | Hex. Nut M6 | 2 |
| 12 | 232541414 | Elastic Stop Nut M4 | 12 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 1 | 233061414 | Hex. Flange Nut M6 | 1 |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 10 |
| 24 | 234051410 | Flat Washer M5 | 24 |
| 3 | 234062410 | Flat Washer 6 mm | 3 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 4 | 241154540 | Hex. Screw K50 X 45 | 4 |
| 22 | 250000084 | Phillips Screw K40 X 16 | 22 |
| 1 | 250000223 | Torx Screw M6 X 16 | 1 |
| 1 | 250200041 | Lock Washer Serrated M6 | 1 |
| 1 | 270000141 | Clip | 1 |
| 2 | 278002704 | Diagnostic Connector | 2 |
| 2 | 293150103 | Pop Rivet 3/16" | 2 |
| 1 | 293730040 | Mount Dart | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 293750009 | Tie-Rap 173 mm | 1 |
| 1 | 390402400 | Pop Rivet 3/16" | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 2 | 414227300 | Clip | 2 |
| 1 | 410301203 | Battery Ass'y, 18 Amperes | 1 |
| 1 | 710001083 | LH Low Front Housing | 1 |
| 1 | 710001081 | RH Low Front Housing | 1 |
| 1 | 710001084 | LH Low Rear Housing | 1 |
| 1 | 710001082 | RH Low Rear Housing | 1 |
| 1 | 710001087 | LH High Front Housing | 1 |
| 1 | 710001085 | RH High Front Housing | 1 |
| 1 | 710001088 | LH High Rear Housing | 1 |
| 1 | 710001086 | RH High Rear Housing | 1 |
| 1 | 710001037 | LH Low Light Support | 1 |
| 1 | 710001094 | RH Low Light Support | 1 |
| 1 | 710001036 | LH High Light Support | 1 |
| 1 | 710001115 | RH High Light Support | 1 |
| 8 | 710001147 | Setting Screw | 8 |
| 1 | 710001191 | Voltage Regulator | 1 |
| 1 | 710001248 | DC Outlet | 1 |
| 1 | 710001364 | Starter Relay | 1 |
| 2 | 710001645 | Tail Light Ass'y | 2 |
| 1 | 520000758 | Bulb | 1 |
| 1 | 710002485 | Harness Ass'y | 1 |
| 1 | 710001916 | Battery Holder | 1 |
| 1 | 710001918 | Fuse Holder | 1 |
| 1 | 710002053 | Switch, Over ride | 1 |
| 1 | 710001737 | 4X4 Switch | 1 |
| 1 | 710002199 | PPS Sport Switch | 1 |
| 1 | 710000817 | Black, Electronic Key | 1 |
| 1 | 710002183 | Grey, Electronic Key | 1 |
| 1 | 710002146 | Positive Cable | 1 |
| 1 | 710002327 | Ignition Switch | 1 |
| 2 | 710002524 | Low Beam Ass'y | 2 |
| 1 | 415129249 | Halogen Bulb | 1 |
| 2 | 710002525 | High Beam Ass'y | 2 |
| 1 | 710002594 | Engine Start Button | 1 |
| 1 | 710003129 | Battery Support | 1 |
