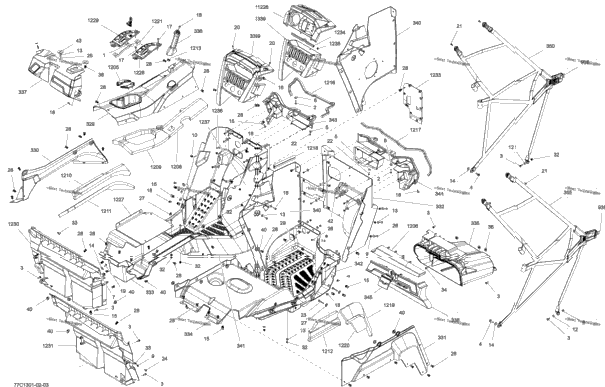

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 205951046 | Socket Head Screw M5 X 10 | 2 |
| 2 | 207162544 | Hex. Screw M6 X 25 | 2 |
| 1 | 207662034 | Hex. Flange Screw M6 X 20 | 1 |
| 2 | 207682544 | Hex. Flange Screw M8 X 25 | 2 |
| 1 | 224060201 | Flat Washer | 1 |
| 2 | 224061201 | Flat Washer | 2 |
| 2 | 232061600 | Hex. Nut M6 | 2 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 10 | 233261494 | Hex. Elastic Flange Nut M6 | 10 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 2 | 234062410 | Flat Washer 6 mm | 2 |
| 6 | 234062670 | Stainless Steel Flat Washer | 6 |
| 4 | 234082410 | Flat Washer 8 mm | 4 |
| 2 | 250000048 | Panel Nut M6 X 1.0 | 2 |
| 2 | 250000079 | Panel Nut M5 X 0.8 | 2 |
| 2 | 250000081 | Torx Screw M6 X 25 | 2 |
| 1 | 250000128 | Torx Truss Screw M6 X 20 | 1 |
| 2 | 250000129 | Torx Screw M6 X 16 | 2 |
| 2 | 250000130 | Torx Screw M5 X 20 | 2 |
| 4 | 250000145 | Torx Screw M5 X 14 | 4 |
| 1 | 250000146 | Truss Head Torx Screw K50 X 16 | 1 |
| 2 | 250000215 | Torx Screw M6 X 45 | 2 |
| 1 | 250000261 | Torx Screw M6 X 16 | 1 |
| 2 | 250000297 | Truss Head Torx Screw K50 X 20 | 2 |
| 9 | 250000335 | Socket Head Screw M6 X 20 | 9 |
| 2 | 293100003 | Nut Welded, M6 | 2 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 1 | 293250242 | Rubber Cover | 1 |
| 293450274 | Insert | ||
| 1 | 293730011 | Black, Dart | 1 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 3 | 414859400 | CAP | 3 |
| 1 | 517302785 | Edge Clip | 1 |
| 3 | 705003264 | Grommet | 3 |
| 4 | 705003668 | Oblong Grommet | 4 |
| 2 | 705003841 | Support Plate | 2 |
| 1 | 715001247 | Central Console Ass'y | 1 |
| 1 | 715001249 | CENTRAL CONSOLE ASS'Y Europe | 1 |
| 1 | 707900001 | LH Side Console | 1 |
| 1 | 707900002 | RH Side Console | 1 |
| 1 | 707900004 | RH Front Floor | 1 |
| 1 | 715001264 | LH Under Cover Ass'y | 1 |
| 1 | 707900006 | RH Under Seat Plate | 1 |
| 1 | 707900046 | Storage Bin XT, LTD Model | 1 |
| 1 | 707900009 | Storage Bin STD, DPS, X model | 1 |
| 1 | 707900011 | Passenger Handle | 1 |
| 1 | 715001250 | Dashboard Ass'y | 1 |
| 1 | 715001263 | Bin Cover Ass'y | 1 |
| 1 | 715001265 | Central Dashboard Ass'y | 1 |
| 1 | 715900108 | Central Dashboard Ass'y Europe | 1 |
| 1 | 707900021 | RH Fixe Side Console | 1 |
| 1 | 707900022 | LH Lower Floor | 1 |
| 1 | 707900023 | RH Lower Floor | 1 |
| 1 | 707900029 | SUPPORT_PANEL LH | 1 |
| 1 | 707900030 | SUPPORT_PANEL RH | 1 |
| 1 | 707900031 | Latch | 1 |
| 1 | 707900127 | LH Lateral Net Upper Link 707900049 | 1 |
| 1 | 707900128 | RH Lateral Net Upper Link 707900049 | 1 |
| 1 | 707900035 | Buckle | 1 |
| 2 | 707900036 | Cup Retainer | 2 |
| 1 | 707900062 | Trim Glove Box | 1 |
| 1 | 707900041 | Front Central Console Foam | 1 |
| 1 | 707900042 | REAR CENTRAL CONSOLE FOAM | 1 |
| 1 | 707900043 | LH Upper Lateral Console Foam | 1 |
| 1 | 707900044 | LH Lower Lateral Console Foam | 1 |
| 1 | 707900045 | RH Lateral Console Foam | 1 |
| 1 | 707900048 | Connector Tube | 1 |
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 1 | 219704451 | Was 293250240 Neoprene Seal | 1 |
| 1 | 707900055 | RH Lateral Console Foam | 1 |
| 1 | 707900056 | RH Lateral Console Foam | 1 |
| 1 | 707900058 | Lock Support | 1 |
| 1 | 707900066 | Gauge Support | 1 |
| 1 | 707900069 | UNDER COVER SEAT | 1 |
| 1 | 707900070 | Lever Indicator | 1 |
| 1 | 707900071 | Lever Indicator Europe | 1 |
| 1 | 707900092 | LH Rear Deflector | 1 |
| 1 | 707900094 | RH Rear Deflector | 1 |
| 1 | 707900108 | Deflector STD Model | 1 |
| 1 | 707900125 | DEFLECTOR | 1 |
| XXX | Not Available As Spare Parts LTD | ||
| 1 | 707900134 | LH Front Floor | 1 |
| 1 | 707900136 | LH Lateral Console | 1 |
