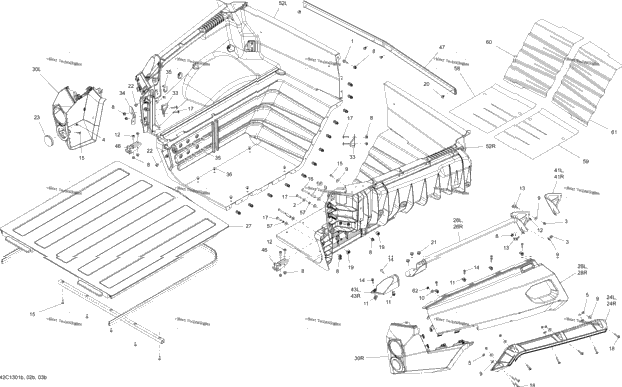

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 13 | 207662044 | Hex. Flange Screw M6 X 20 | 13 |
| 2 | 224061121 | Flat Washer | 2 |
| 4 | 232361493 | Domed Nut M6 | 4 |
| 2 | 232551414 | Elastic Stop Nut M5 North America, International | 2 |
| 14 | 232561434 | Elastic Stop Nut M6 XT Except Europe | 14 |
| 14 | 232561434 | Elastic Stop Nut M6 Black Carbon Fiber | 14 |
| 31 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 31 |
| 27 | 234062670 | Stainless Steel Flat Washer | 27 |
| 2 | 234081100 | Flat Washer 8 mm, Nylon | 2 |
| 10 | 250000079 | Panel Nut M5 X 0.8 | 10 |
| 2 | 250000079 | Panel Nut M5 X 0.8 XT | 2 |
| 6 | 250000128 | Torx Truss Screw M6 X 20 | 6 |
| 12 | 250000129 | Torx Screw M6 X 16 | 12 |
| 10 | 250000130 | Torx Screw M5 X 20 | 10 |
| 2 | 250000130 | Torx Screw M5 X 20 XT | 2 |
| 15 | 250000146 | Truss Head Torx Screw K50 X 16 | 15 |
| 4 | 250000215 | Torx Screw M6 X 45 | 4 |
| 12 | 250000284 | Torx Screw M6 x 25 | 12 |
| 14 | 250000371 | Torx Screw M6 X 30 Stainless XT Except Europe | 14 |
| 14 | 250000371 | Torx Screw M6 X 30 Stainless Black Carbon Fiber | 14 |
| 4 | 269500725 | M6 Nut Housing Ass'y | 4 |
| 4 | 293150104 | Pop Rivet 3/16" | 4 |
| 6 | 293150190 | Pop Rivet 3/16 XT | 6 |
| 4 | 293830005 | Rubber Bumper | 4 |
| 2 | 705002408 | Red Reflector Europe | 2 |
| 1 | 705003603 | LH Upper Rear Mudguards Black Carbon Fiber | 1 |
| 1 | 705003603 | LH Upper Rear Mudguards XT Except Europe | 1 |
| 1 | 705003604 | RH Upper Rear Mudguards Black Carbon Fiber | 1 |
| 1 | 705003604 | RH Upper Rear Mudguards XT Except Europe | 1 |
| 1 | 708300231 | LH Welded Rail XT | 1 |
| 1 | 708300232 | RH Welded Rail XT | 1 |
| 1 | 708300131 | Separator Pannel Ass'y | 1 |
| 1 | 708300101 | LH Rear Fender, Yellow DPS | 1 |
| 1 | 708300101 | LH Rear Fender, Yellow XT Yellow | 1 |
| 1 | 708300226 | LH REAR FENDER, RED XT Red | 1 |
| 708300437 | LH REAR FENDER, CAMO XT CAMO | ||
| 1 | 708300439 | LH Rear Fender, Black X Black | 1 |
| 1 | 708300548 | LH Rear Fender, Magnesium Magnesium | 1 |
| 1 | 708300666 | LH Rear Fender, Red STD | 1 |
| 1 | 708300668 | LH Rear Fender, Graphite Black Carbon Fiber | 1 |
| 1 | 708300102 | RH Rear Fender, Yellow DPS | 1 |
| 1 | 708300102 | RH Rear Fender, Yellow XT Yellow | 1 |
| 1 | 708300227 | RH Rear Fender, Red XT Red | 1 |
| 1 | 708300438 | RH Rear Fender, Camo XT CAMO | 1 |
| 1 | 708300440 | RH Rear Fender, Black X Black | 1 |
| 1 | 708300550 | RH Rear Fender, Magnesium Magnesium | 1 |
| 1 | 708300667 | RH Rear Fender, Red STD | 1 |
| 1 | 708300669 | RH Rear Fender, Graphite Black Carbon Fiber | 1 |
| 1 | 708300103 | LH Rear Facia STD Except Europe, X Except Europe | 1 |
| 1 | 708300103 | LH Rear Facia DPS | 1 |
| 1 | 708300103 | LH Rear Facia Black Carbon Fiber | 1 |
| 1 | 708300103 | LH Rear Facia XT Except Europe | 1 |
| 1 | 708300103 | LH Rear Facia XT Europe | 1 |
| 1 | 708300559 | LH Rear Facia STD Europe, X Europe | 1 |
| 1 | 708300104 | RH Rear Facia STD Except Europe, X Except Europe | 1 |
| 1 | 708300104 | RH Rear Facia DPS | 1 |
| 1 | 708300104 | RH Rear Facia XT Except Europe | 1 |
| 1 | 708300104 | RH Rear Facia Black Carbon Fiber | 1 |
| 1 | 708300104 | RH Rear Facia XT Europe | 1 |
| 1 | 708300560 | RH Rear Facia STD Europe, X Europe | 1 |
| 4 | 708300183 | Retaining Plate | 4 |
| 2 | 708300206 | Retaining Plate Support | 2 |
| 20 | 293150100 | Pop Rivet 3/16" | 20 |
| 12 | 293150104 | Pop Rivet 3/16" | 12 |
| 1 | 708300333 | LH Painted Rail Cap STD, DPS, X | 1 |
| 1 | 708300334 | RH Painted Rail Cap STD, DPS, X | 1 |
| 1 | 708300233 | LH RAIL COVER XT | 1 |
| 1 | 708300234 | RH RAIL COVER XT | 1 |
| 2 | 708300345 | Upper Pivot Support | 2 |
| 1 | 708300346 | Front Support | 1 |
| 1 | 715001259 | LH Box Ass'y | 1 |
| 1 | 715001257 | RH Box Ass'y | 1 |
| 4 | 708300736 | Spacer | 4 |
| 4 | 708300737 | Bushing | 4 |
| 1 | 708300809 | Heat Deflector Sheet | 1 |
| 1 | 708300810 | Heat Deflector Sheet | 1 |
| 1 | 708300811 | Heat Deflector Sheet | 1 |
| 1 | 708300812 | Heat Deflector Sheet | 1 |
| 2 | 732610072 | Push Nut | 2 |
