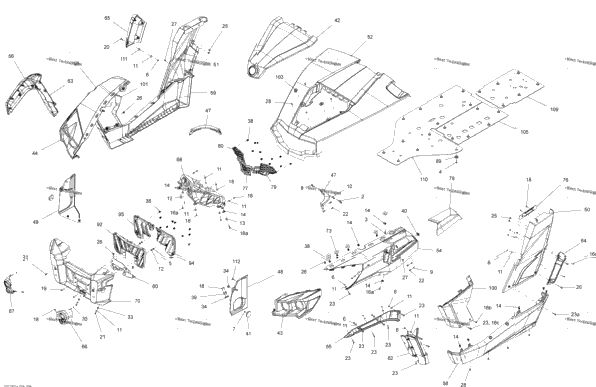

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 207661644 | Hex. Flange Screw M6 X 16 | 4 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 24 | 210262080 | Hex. Forming Screw M6 X 20 | 24 |
| 2 | 232081414 | Hex. Nut M8 STD, DPS, X | 2 |
| 1 | 232561434 | Elastic Stop Nut M6 | 1 |
| 2 | 233251414 | Hex. Flange Elastic Nut M5 Except Europe | 2 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 4 | 234051410 | Flat Washer M5 | 4 |
| 4 | 234061600 | Stainless Flat Washer M6 | 4 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 2 | 234081410 | Flat Washer 8 mm STD, DPS, X | 2 |
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 1 | 250000048 | Panel Nut M6 X 1.0 | 1 |
| 1 | 250000146 | Truss Head Torx Screw K50 X 16 | 1 |
| 250000197 | Torx Truss Screw M8 X 30 STD, DPS, X | ||
| 1 | 250000215 | Torx Screw M6 X 45 | 1 |
| 4 | 250000261 | Torx Screw M6 X 16 | 4 |
| 1 | 250000297 | Truss Head Torx Screw K50 X 20 | 1 |
| 1 | 250000371 | Torx Screw M6 X 30 Stainless | 1 |
| 1 | 250100129 | PUSH NUT | 1 |
| 1 | 293150089 | Tuflok Plastic Rivet | 1 |
| 2 | 293150104 | Pop Rivet 3/16" | 2 |
| 1 | 293150104 | Pop Rivet 3/16" | 1 |
| 293450274 | Insert | ||
| 6 | 293720053 | Grommet | 6 |
| 2 | 389804300 | Push Nut Europe | 2 |
| 1 | 517302785 | Edge Clip | 1 |
| 4 | 517303439 | Knob | 4 |
| 1 | 517303756 | Grommet | 1 |
| 2 | 705002409 | Amber Reflector Except Europe | 2 |
| 1 | 705002881 | Removable Hood, Yellow Yellow | 1 |
| 1 | 705004384 | Removable Hood, Red Red | 1 |
| 1 | 705004385 | Removable Hood, Camo CAMO | 1 |
| 1 | 705004386 | Removable Hood, Black X Black | 1 |
| 1 | 705005291 | Removable Hood, Magnesium Magnesium | 1 |
| 1 | 705006057 | REMOVABLE HOOD, WHITE White | 1 |
| 1 | 705006058 | Removable Hood, Graphite Black Carbon Fiber | 1 |
| 1 | 705002885 | LH Front Facia | 1 |
| 1 | 705002886 | RH Front Facia | 1 |
| 2 | 705002891 | Facia Front Support | 2 |
| 1 | 705002895 | LH Deflector STD, DPS, X | 1 |
| 1 | 705005113 | LH Deflector XT | 1 |
| 1 | 705002894 | RH Deflector | 1 |
| 1 | 705002904 | LH Rear Lateral Pannel, Yellow DPS | 1 |
| 1 | 705003850 | LH Rear Lateral Pannel, Red XT Red | 1 |
| 1 | 705002904 | LH Rear Lateral Pannel, Yellow XT Yellow | 1 |
| 1 | 705004396 | LH Rear Lateral Pannel, Camo CAMO | 1 |
| 1 | 705004398 | LH Rear Lateral Pannel, Black X Black | 1 |
| 1 | 705005297 | LH Rear Lateral Pannel, Magnesium Magnesium | 1 |
| 1 | 705006064 | LH Rear Lateral Pannel, White White | 1 |
| 1 | 705006066 | LH Rear Lateral Pannel, Red STD | 1 |
| 705006068 | LH REAR LATERAL PANNEL, GRAPHITE Black Carbon Fiber | ||
| 1 | 705002905 | RH Rear Lateral Pannel, Yellow DPS | 1 |
| 1 | 705003851 | RH Rear Lateral Pannel, Red XT Red | 1 |
| 1 | 705002905 | RH Rear Lateral Pannel, Yellow XT Yellow | 1 |
| 1 | 705004395 | RH Rear Lateral Pannel, Camo CAMO | 1 |
| 1 | 705004397 | RH Rear Lateral Pannel, Black X Black | 1 |
| 1 | 705005299 | RH Rear Lateral Pannel, Magnesium Magnesium | 1 |
| 1 | 705006065 | RH Rear Lateral Pannel, White White | 1 |
| 1 | 705006067 | RH Rear Lateral Pannel, Red STD | 1 |
| 1 | 705006069 | RH Rear Lateral Pannel, Graphite Black Carbon Fiber | 1 |
| 1 | 705002915 | Yellow Fixed Hood X Black | 1 |
| 1 | 705002915 | Yellow Fixed Hood Yellow | 1 |
| 1 | 705004379 | Red Fixed Hood Red | 1 |
| 1 | 705004380 | HOOD B-005 CAMO | 1 |
| 1 | 705005289 | Magnesium Fixed Hood Magnesium | 1 |
| 705006036 | HOOD B-341 White | ||
| 705006056 | Fixed Hood, Metallic Black Black Carbon Fiber | ||
| 1 | 705003029 | RH Front Fender, Yellow DPS | 1 |
| 705003827 | RH FRONT FENDER, RED XT Red | ||
| 1 | 705003029 | RH Front Fender, Yellow XT Yellow | 1 |
| 1 | 705004375 | RH Front Fender, Camo CAMO | 1 |
| 1 | 705004377 | RH Front Fender, Black X Black | 1 |
| 1 | 705005285 | RH Front Fender, Magnesium Magnesium | 1 |
| 1 | 705006051 | RH Front Fender, Red STD | 1 |
| 1 | 705006052 | RH Front Fender, White White | 1 |
| 1 | 705006053 | RH Front Fender, Graphite Black Carbon Fiber | 1 |
| 1 | 705003030 | LH Front Fender, Yellow DPS | 1 |
| 1 | 705003826 | LH Front Fender, Red XT Red | 1 |
| 1 | 705003030 | LH Front Fender, Yellow XT Yellow | 1 |
| 1 | 705004376 | LH Front Fender, Camo CAMO | 1 |
| 1 | 705004378 | LH Front Fender, Black X Black | 1 |
| 1 | 705005283 | LH Front Fender, Magnesium Magnesium | 1 |
| 1 | 705006048 | LH Front Fender, White White | 1 |
| 1 | 705006049 | LH Front Fender, Graphite Black Carbon Fiber | 1 |
| 1 | 705006050 | LH Front Fender, Red STD | 1 |
| 1 | 705003058 | LH Upper Front Mudguards XT Except Europe | 1 |
| 1 | 705003058 | LH Upper Front Mudguards Black Carbon Fiber | 1 |
| 1 | 705003058 | LH Upper Front Mudguards | 1 |
| 1 | 705003059 | RH Upper Front Mudguards Black Carbon Fiber | 1 |
| 1 | 705003059 | RH Upper Front Mudguards XT Except Europe | 1 |
| 1 | 705003059 | RH Upper Front Mudguards | 1 |
| 1 | 705004989 | LH Middle Side Pannel XT | 1 |
| 1 | 705005946 | LH Middle Side Pannel | 1 |
| 705004991 | LH Middle Side Pannel X | ||
| 1 | 705005946 | LH Middle Side Pannel STD, DPS | 1 |
| 1 | 705004990 | RH Middle Side Pannel XT | 1 |
| 705005947 | RH Middle Side Pannel | ||
| 705004992 | RH Middle Side Pannel X | ||
| 705005947 | RH Middle Side Pannel STD, DPS | ||
| 1 | 705003399 | Bottom Deflector STD, DPS, X | 1 |
| 1 | 705003601 | LH Lower Front Mudguards Black Carbon Fiber | 1 |
| 1 | 705003601 | LH Lower Front Mudguards XT Except Europe | 1 |
| 1 | 705003602 | RH Lower Front Mudguards XT Except Europe | 1 |
| 1 | 705003602 | RH Lower Front Mudguards Black Carbon Fiber | 1 |
| 1 | 705003601 | LH Lower Front Mudguards | 1 |
| 1 | 705003602 | RH Lower Front Mudguards | 1 |
| 1 | 705003605 | LH Lower Rear Mudguards XT Except Europe | 1 |
| 1 | 705003605 | LH Lower Rear Mudguards Black Carbon Fiber | 1 |
| 1 | 705003605 | LH Lower Rear Mudguards | 1 |
| 1 | 705003606 | RH Lower Rear Mudguards XT Except Europe | 1 |
| 1 | 705003606 | RH Lower Rear Mudguards Black Carbon Fiber | 1 |
| 1 | 705003606 | RH Lower Rear Mudguards | 1 |
| 1 | 705003627 | LH FLASHER CAP Europe | 1 |
| 1 | 705003628 | RH Flasher Cap Europe | 1 |
| 1 | 705003629 | FASCIA UP B-160 | 1 |
| 1 | 705003306 | Front Facia | 1 |
| 12 | 705003841 | Support Plate | 12 |
| 2 | 705004261 | Support Plate | 2 |
| 1 | 705004336 | Center Upper Facia Protector | 1 |
| 1 | 705004337 | Yellow CVT Inlet Cover Yellow | 1 |
| 1 | 705004381 | RED CVT INLET COVER Red | 1 |
| 1 | 705004382 | CAMO CVT INLET COVER CAMO | 1 |
| 1 | 705004383 | CVT INLET COVER, BLACK X Black | 1 |
| 1 | 705005287 | Magnesium CVT Inlet Cover Magnesium | 1 |
| 1 | 705006054 | COVER_AIR INLET FL B-341 White | 1 |
| 1 | 705006055 | CVT INLET COVER, GRAPHITE Black Carbon Fiber | 1 |
| 1 | 705004350 | LH Upper Facia Protector | 1 |
| 1 | 705004351 | RH Upper Facia Protector | 1 |
| 24 | 705004510 | Cup | 24 |
| XXX | Not Available As Spare Parts | ||
| 1 | 705004755 | Lower Front Facia Protector | 1 |
| 1 | 705004819 | LH Lower Rear Facia Protector | 1 |
| 1 | 705004820 | RH Lower Rear Facia Protector | 1 |
| 1 | 705002887 | Yellow LH Front Lateral Pannel DPS | 1 |
| 1 | 705004996 | PANEL_BODY FL B-176 XT Red | 1 |
| 1 | 705002887 | Yellow LH Front Lateral Pannel XT Yellow | 1 |
| 1 | 705005559 | Red LH Front Lateral Pannel STD | 1 |
| 1 | 705005561 | LH FRONT LATERAL PANNEL, BLACK X Black | 1 |
| 1 | 705006037 | White LH Front Lateral Pannel White | 1 |
| 705006060 | LH Front Lateral Pannel, Graphite Black Carbon Fiber | ||
| 1 | 705006378 | PANEL_BODY FL B-005 CAMO | 1 |
| 1 | 705006382 | Magnesium-LH Front Lateral Pannel Magnesium | 1 |
| 1 | 705002888 | Yellow RH Front Lateral Pannel DPS | 1 |
| 1 | 705004997 | PANEL_BODY FR B-176 XT Red | 1 |
| 1 | 705002888 | Yellow RH Front Lateral Pannel XT Yellow | 1 |
| 1 | 705005558 | Red RH Front Lateral Pannel STD | 1 |
| 1 | 705005560 | RH FRONT LATERAL PANNEL, BLACK X Black | 1 |
| 1 | 705006059 | PANEL_BODY FR B-341 White | 1 |
| 705006063 | RH Front Lateral Pannel, Graphite Black Carbon Fiber | ||
| 1 | 705006379 | PANEL_BODY FR B-005 CAMO | 1 |
| 1 | 705006383 | MAGNESIUM RH FRONT LATERAL PANNEL Magnesium | 1 |
| 2 | 705005156 | Oval Washer | 2 |
| 705005415 | LH PROTECTOR PLATE | ||
| 1 | 705006074 | Rear Protector Plate | 1 |
| 1 | 705006075 | RH PROTECTOR PLATE | 1 |
| 1 | 706200281 | Hardened Washer Black Carbon Fiber | 1 |
| 1 | 706200281 | Hardened Washer XT Except Europe | 1 |
| 1 | 706200281 | Hardened Washer | 1 |
| 2 | 708000759 | Rubber Stopper | 2 |
| 2 | 250000128 | Torx Truss Screw M6 X 20 | 2 |
| 2 | 250000350 | Torx Truss Screw M6 X 20 | 2 |
| 1 | 250000488 | Torx Truss Screw M6 X 20 XT Except Europe | 1 |
| 1 | 250000488 | Torx Truss Screw M6 X 20 Black Carbon Fiber | 1 |
| 1 | 250000398 | Torx Truss Screw M6 X 30 | 1 |
