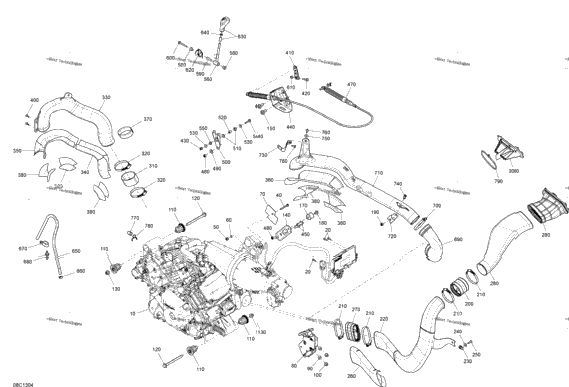

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 420101003 | Short Block Kit | 1 |
| 3 | 250000146 | Truss Head Torx Screw K50 X 16 | 3 |
| 1 | 207665044 | Hex. Flange Screw M6 X 50 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 1 | 710000073 | Insulator Pad | 1 |
| 1 | 707001166 | Accelerator Pedal | 1 |
| 2 | 707000848 | Bushing | 2 |
| 2 | 233081416 | Hex. Flange Nut M8 | 2 |
| 4 | 707001169 | Vibration Damper | 4 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 233201436 | Hex. Flange Elastic Nut M10 | 2 |
| 1 | 707000707 | Upper Engine Bracket | 1 |
| 2 | 207602544 | Hex. Flange Screw M10 X 25 | 2 |
| 1 | 707000949 | Rubber Isolator | 1 |
| 1 | 207581046 | Flange Screw M8 x 10, Scotch Grip | 1 |
| 1 | 232581414 | Hex. Elastic Stop Nut M8 | 1 |
| 1 | 707001043 | Flexible Adaptor | 1 |
| 4 | 293650091 | Norma Clamp | 4 |
| 1 | 707000639 | Air Inlet | 1 |
| 1 | 250000048 | Panel Nut M6 X 1.0 | 1 |
| 1 | 250200082 | Flat Washer | 1 |
| 1 | 250000128 | Torx Truss Screw M6 X 20 | 1 |
| 1 | 707000924 | Reflective Sheet | 1 |
| 1 | 707000909 | Primary Air Intake | 1 |
| 1 | 707000908 | Adaptor | 1 |
| 1 | 707001344 | CVT Filter | 1 |
| 1 | 707000789 | Adaptor | 1 |
| 2 | 293650118 | Norma Gear Clamp | 2 |
| 1 | 707001243 | CVT Outlet | 1 |
| 1 | 707001284 | Reflector | 1 |
| 1 | 707001285 | Reflector | 1 |
| 1 | 707001286 | Reflector | 1 |
| 1 | 707000988 | Reflector | 1 |
| 5 | 707000991 | Reflective Sheet | 5 |
| 2 | 250000113 | Screw M4 X 16, Type K-40 | 2 |
| 1 | 707000911 | Lever | 1 |
| 1 | 207663544 | Hex. Flange Screw M6 X 35 | 1 |
| 1 | 707000919 | Cable Support | 1 |
| 1 | 707000775 | Shifting Cable | 1 |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 | 2 |
| 1 | 234001410 | Flat Washer 10 mm | 1 |
| 1 | 707000828 | Lower Lever Arm | 1 |
| 2 | 707000847 | Flanged Bushing | 2 |
| 1 | 707000801 | Bushing | 1 |
| 2 | 234062410 | Flat Washer 6 mm | 2 |
| 1 | 207663044 | Hex. Flange Screw M6 X 30 | 1 |
| 1 | 707000711 | Upper Lever Arm Except EUROPE | 1 |
| 1 | 707000978 | UPPER LEVER ARM EUROPE | 1 |
| 2 | 707000869 | Flanged Bushing | 2 |
| 1 | 707000868 | Bushing | 1 |
| 1 | 707000750 | Lever Arm Spring | 1 |
| 1 | 707000284 | Lever Handle | 1 |
| 1 | 232180491 | Hex. Jam Nut M8 | 1 |
| 1 | 219704439 | HOSE 1/4 1000MM LONG | 1 |
| 1 | 414415200 | Spring Clamp | 1 |
| 1 | 709000057 | Open Clamp | 1 |
| 1 | 275500398 | Check Valve | 1 |
| 1 | 707001229 | Front Adaptor | 1 |
| 1 | 293650118 | Norma Gear Clamp | 1 |
| 1 | 293650091 | Norma Clamp | 1 |
| 1 | 707001230 | CVT Outlet | 1 |
| 1 | 707001231 | Front Support | 1 |
| 1 | 707001232 | Rear Support | 1 |
| 1 | 293150089 | Tuflok Plastic Rivet | 1 |
| 1 | 234062410 | Flat Washer 6 mm | 1 |
| 2 | 210261680 | Hex. Flange Screw M6 X 16 | 2 |
| 1 | 707001185 | Plug | 1 |
| 1 | 707800506 | Retainer Clip | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
