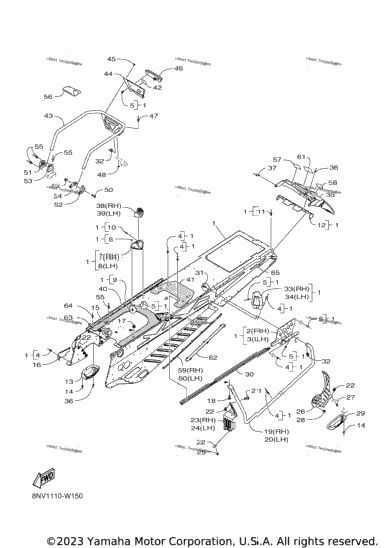

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 8NV-F1950-00-00 | Rear Frame Comp | 1 |
| 1 | 8ND-F1954-00-00 | . .Bracket,Rr.Track Suspention | 1 |
| 1 | 8ND-F1944-00-00 | . .Bracket,Rr.Track Suspention | 1 |
| 11 | 8JP-RA518-00-00 | . Rivet, 9 UN | 11 |
| 1 | 8JP-RA527-00-00 | . .Rivet UN | 1 |
| 6 | 8JP-RA370-00-00 | . .Nut, Self-Locking | 6 |
| 1 | 8JW-F115M-00-00 | . .Brkt., Member 2 | 1 |
| 8JW-F115L-00-00 | . .Bracket, Member 1 | ||
| 8 | 8JP-RA241-00-00 | . .Screw | 8 |
| 1 | 8JP-RA528-00-00 | . .Rivet UN | 1 |
| 1 | 8ML-RA512-00-00 | . .Rivet, 3 UN | 1 |
| 1 | 8ND-F1923-00-00 | . .Reineforcement, Frame Rear 1 | 1 |
| 1 | 8JP-F2147-00-00 | Protector, Chain | 1 |
| 8 | 8JP-RA523-00-00 | .Rivet, 14 | 8 |
| 1 | 8ND-RAB16-00-00 | Clamp, 14 | 1 |
| 1 | 8ND-F194X-00-00 | Bracket 1 | 1 |
| 2 | 8JM-RA301-00-00 | Nut, Self-Locking | 2 |
| 8JP-RA272-00-00 | Screw | ||
| 8MJ-F192E-00-00 | Reinforcement, Frame | ||
| 8MJ-F1929-00-00 | Reinforcement, Frame Side | ||
| 4 | 8JP-RA247-00-00 | Screw | 4 |
| 9 | 8JP-RA353-00-00 | Nut, Spring | 9 |
| 1 | 8JW-F1996-00-00 | Reinforcement Sub Frame Fr 2 | 1 |
| 1 | 8JW-F1995-00-00 | Reinforcement Sub Frame Fr 1 | 1 |
| 4 | 8JP-RA251-00-00 | Screw | 4 |
| 1 | 8LN-F5718-00-00 | Protector, Disk Brake | 1 |
| 1 | 8JP-RA244-00-00 | Screw | 1 |
| 2 | 8JP-RA179-00-00 | Bolt, Flange | 2 |
| 1 | 8JP-F5717-00-00 | Protector, Disk Brake | 1 |
| 1 | 8MG-H258A-00-00 | Extension, Wire Harness | 1 |
| 2 | 8JP-RA261-00-00 | Screw | 2 |
| 4 | 8JP-RA354-00-00 | Nut, Spring | 4 |
| 1 | 8LN-F1937-00-00 | . .Reinforcement, Rr. Footrest IN 1 | 1 |
| 1 | 8LN-F1927-00-00 | . .Reinforcement, Rr. Footrest IN 1 | 1 |
| 1 | 8LN-K7595-00-00 | Flap | 1 |
| 5 | 8JP-RA524-00-00 | Rivet, 15 | 5 |
| 2 | 8LN-RA525-00-00 | Rivet, 16 | 2 |
| 1 | 8JP-F2556-00-00 | Supt., Fuel Tank 2 | 1 |
| 1 | 8JP-F2555-00-00 | Supt., Fuel Tank 1 | 1 |
| 1 | 8MJ-K8261-00-00 | Plate, Body Protect 1 | 1 |
| 1 | 8MJ-F4141-00-00 | Protector, Fuel Tank | 1 |
| 1 | 8ND-F817R-00-00 | Label, Load Limit | 1 |
| 1 | 8ND-K8341-00-00 | Frame, Luggage Rack Rear | 1 |
| 1 | 8ND-F117E-00-00 | Bracket, Taillight | 1 |
| 4 | 8KC-RA290-00-00 | Screw | 4 |
| 1 | 8JP-H4500-00-00 | Taillight Assy | 1 |
| 4 | 8ML-RA514-00-00 | Rivet, 5 | 4 |
| 2 | 8ML-RA400-00-00 | Washer, Plain | 2 |
| 2 | 8JM-RA322-00-00 | Nut, Flange M6-1.0 | 2 |
| 2 | 8JP-RA1B4-10-00 | Bolt, Flange | 2 |
| 8LN-K7531-00-00 | Bracket, 1 | ||
| 8LN-K7532-00-00 | Bracket, Front (L.H) | ||
| 8LN-K7533-00-00 | Bracket, Rear (R.H) | ||
| 8LN-K7534-00-00 | Bracket, Rear (L.H) | ||
| 1 | 8JP-RA520-00-00 | Rivet, 11 UN | 1 |
| 1 | 8ND-F8100-00-00 | Tool Kit | 1 |
| 1 | 8JP-K7762-70-00 | Label, Warning 2 (English) | 1 |
| 1 | 8JP-K7762-S0-00 | Label, Warning 2 (French) | 1 |
| 1 | 8ND-F1926-00-00 | Reinforcement, Footrest 1 | 1 |
| 1 | 8ND-F1927-00-00 | Reinforcement, Rr. Footrest 1 | 1 |
| 1 | 8ND-F817S-00-00 | Label, Pulling Load Limit | 1 |
| 1 | 8KT-H2589-10-00 | Protecter, Wire Harness | 1 |
| 1 | 8ND-RAB15-00-00 | Clamp, 13 | 1 |
| 1 | 8ND-RA525-00-00 | Rivet, 16 | 1 |
| 2 | 8ND-F151A-00-00 | Label 1 | 2 |
