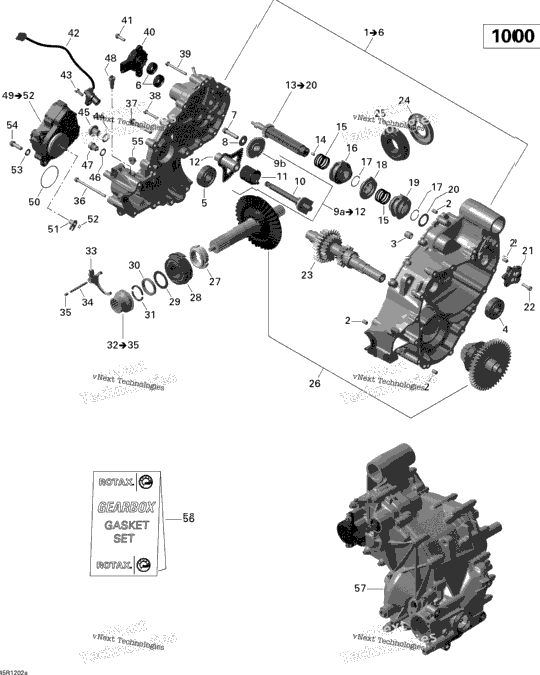

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Gear Housing Ass'y Includes 1 to 6 | ||
| 2 | 420632010 | Center Pin 8 X 12 | 2 |
| XXXX | Not Available As Spare Part - Dowel See Item 57, Gear Box | ||
| 1 | 420932815 | Ball Bearing 6303E | 1 |
| 1 | 420932433 | Ball Bearing 6204 | 1 |
| 2 | 420250450 | Oil Seal | 2 |
| 1 | 420641188 | Torx Flange Screw M8 X 35 | 1 |
| 1 | 420227937 | Plain Washer | 1 |
| 1 | 420620929 | Shift Shaft Ass'y Includes 9a to 12 | 1 |
| XXXX | Not Available As Spare Part - Intermediate Gear, 30 Teeth | ||
| XXXX | Not Available As Spare Part - Shift Shaft | ||
| XXXX | Not Available As Spare Part - Spring | ||
| XXXX | Not Available As Spare Part - Tooth Segment | ||
| 1 | 420657230 | Shift Drum Ass'y Includes 13 to 20 | 1 |
| XXXX | Not Available As Spare Part - Needle Pin | ||
| XXXX | Not Available As Spare Part - Compression Spring | ||
| XXXX | Not Available As Spare Part - Gear Shifting Gate | ||
| XXXX | Not Available As Spare Part - Retaining Ring | ||
| XXXX | Not Available As Spare Part - Disengagement Gate | ||
| XXXX | Not Available As Spare Part - Thrust Washer | ||
| XXXX | Not Available As Spare Part - Index Washer | ||
| 1 | 420241932 | Allen Screw M6 X 20 | 1 |
| 1 | 420620896 | Countershaft | 1 |
| 1 | 420831957 | Oil Seal | 1 |
| XXXX | Not Available As Spare Part - Ball Bearing See Item 57, Gear Box | ||
| XXXX | Not Available As Spare Part - Drive Axle Set See Item 57, Gear Box | ||
| XXXX | Not Available As Spare Part - Groove Nut See Item 57, Gear Box | ||
| XXXX | Not Available As Spare Part - Shim Set See Item 57, Gear Box | ||
| XXXX | Not Available As Spare Part - Angular Ring See Item 57, Gear Box | ||
| XXXX | Not Available As Spare Part - Half Ring See Item 57, Gear Box | ||
| 420257676 | Shifting Sleeve Kit Includes 32 to 35 | ||
| XXXX | Not Available As Spare Part - Shifting Fork | ||
| 420841772 | Set Screw M6 X 8 | ||
| 2 | 420641228 | Torx Flange Screw M6 X 85 | 2 |
| 5 | 420641213 | Torx Flange Screw M8 X 55 | 5 |
| 8 | 420641258 | Torx Flange Screw M6 X 35 | 8 |
| 2 | 420440702 | Torx Flange Screw M6 X 55 | 2 |
| 1 | 420266167 | Angle Rotation Sensor | 1 |
| 2 | 420641048 | Torx Flange Screw M6 X 16 | 2 |
| 1 | 420265626 | Speed Sensor | 1 |
| 1 | 420641048 | Torx Flange Screw M6 X 16 | 1 |
| 1 | 420650350 | O-Ring | 1 |
| 1 | 420241660 | Plug Screw M14 X 1.5 | 1 |
| 1 | 420250640 | Copper Washer | 1 |
| 1 | 420241786 | Magnetic Drain Plug | 1 |
| 1 | 420640192 | 3 Position Switch | 1 |
| 1 | 415129174 | Actuator Ass'y Includes 49 to 52 | 1 |
| 1 | 293300117 | O-Ring | 1 |
| 1 | 415129175 | Shifting Fork | 1 |
| 1 | 415129176 | Circlip | 1 |
| 3 | 420250311 | Flat Washer 8.4 mm | 3 |
| 3 | 420440372 | Torx Flange Screw M8 X 25 | 3 |
| 4 | 420842619 | Hex. Nut M8 | 4 |
| 1 | 420684139 | Gasket Set | 1 |
| 1 | 420684786 | Gear Box | 1 |
