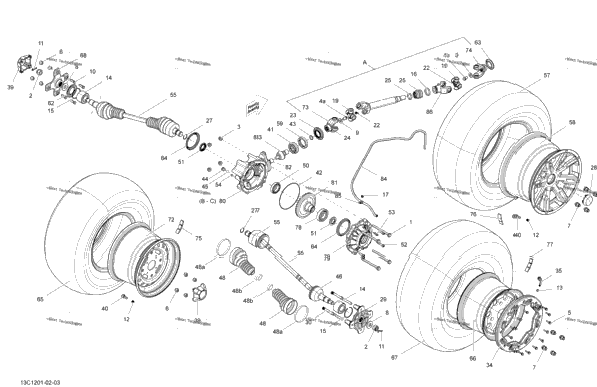

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 230602546 | Hex. Flange Screw M10 X 125 | 4 |
| 2 | 250100047 | Hex. Castellated Nut M18 | 2 |
| 4 | 233201416 | Hex. Flange Elastic Nut M10 | 4 |
| 250000378 | HEX FLANGED SCREW M12 X 16, SCOTCH GRIP | ||
| 1 | 250000359 | Hex Flange Screw M12 x 16 | 1 |
| 32 | 250000435 | Hex. Flange Screw M6 X 25 | 32 |
| 8 | 250100042 | Steel Wheel Nut STD Model | 8 |
| 8 | 250100082 | Chrome Wheel Nut M10 X 1.25 XT Model | 8 |
| 8 | 250100100 | Black Wheel Nut M10 X 1.25 XT Model CAMO | 8 |
| 2 | 250200049 | Spring Washer | 2 |
| 2 | 250200102 | Flat Washer M12 | 2 |
| 4 | 250300045 | Wheel Stud | 4 |
| 2 | 250400036 | Cotter Pin | 2 |
| 2 | 293000110 | Valve Cap | 2 |
| XXX | Not Available As Spare Parts | ||
| 2 | 293350040 | Cone Bearing | 2 |
| 2 | 293370019 | Circlip | 2 |
| 1 | 293650138 | Oetiker Gear Clamp 44.0MM | 1 |
| 1 | 390406500 | Pop Rivet 3/16" | 1 |
| 2 | 703000022 | Unit Pack Kit | 2 |
| 1 | 705500841 | GREASE FITTING | 1 |
| 1 | 705400027 | Oil Seal | 1 |
| 1 | 705400036 | Wear Ring | 1 |
| 703500255 | Rubber Boot Kit | ||
| 1 | 705500845 | CIRCLIP | 1 |
| 2 | 705400504 | WHEEL CAP XT Model CAMO | 2 |
| 705400520 | WHEEL CAP XT Model | ||
| 1 | 705400713 | Wheel Hub | 1 |
| 4 | 705400791 | Wheel Stud | 4 |
| 2 | 705400921 | Wheel Cap | 2 |
| 2 | 705400193 | Rim Valve With Cap | 2 |
| 1 | 705500260 | Ball Bearing | 1 |
| 1 | 705500265 | Seal | 1 |
| 1 | 703500049 | Pinion Shim Kit | 1 |
| 2 | 705501162 | Pinion Gear Shim | 2 |
| 1 | 705500267 | O-Ring | 1 |
| 1 | 705500504 | Fill Level Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 705500980 | CV JOINT | ||
| 2 | 705500870 | Boot Kit | 2 |
| 1 | 293650204 | OETIKER CLAMP | 1 |
| 1 | 293650203 | Oetiker Clamp (27,5mm) | 1 |
| 1 | 705500749 | Ball Bearing | 1 |
| 2 | 705501196 | Oil Seal | 2 |
| 4 | 705500892 | SCREW | 4 |
| 1 | 705500893 | VENT VALVE | 1 |
| 1 | 705500894 | Drain Plug | 1 |
| 2 | 705501456 | Half Shaft | 2 |
| 1 | 705500964 | Rear Tire XT Model Except CAMO | 1 |
| 1 | 705501295 | Rear Tire XT Model Europe | 1 |
| 1 | 705500965 | Silver Rear Rim XT Model Except CAMO | 1 |
| 1 | 705501261 | Black Rear Rim XT Model CAMO | 1 |
| 1 | 705500987 | Nut | 1 |
| 1 | 705501121 | Wear Sleeve | 1 |
| 1 | 705501123 | Protector | 1 |
| 2 | 705501124 | Wear Ring | 2 |
| 1 | 705501129 | Rear Tire STD Model | 1 |
| 1 | 705501434 | Rear Tire STD Model Europe | 1 |
| 1 | 705501199 | Wheel Hub Ass'y | 1 |
| 1 | 705501249 | RIM_12 INCH X 8 STD Modèle | 1 |
| 1 | 705501372 | Differential Fixed Joint | 1 |
| 1 | 705501373 | Fixed Joint | 1 |
| 1 | 219704465 | 1/2 OZ Weight | 1 |
| 1 | 219704465 | 1/2 OZ Weight XT Model | 1 |
| 1 | 705501389 | Ball Bearing | 1 |
| 1 | 705501507 | REAR DIFFERENTIAL COVER | 1 |
| 1 | 705501395 | PINION REAR COVER | 1 |
| 1 | 705501397 | Gear, 36 Tooth | 1 |
| 1 | 705501408 | Needle Bearing | 1 |
| 1 | 705501571 | Pinion 10 Tooth | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 1 | 705600459 | Clamp | 1 |
| 1 | 705501072 | SLIDING JOINT | 1 |
| 1 | 703500762 | Rear Drive Shaft Ass'y | 1 |
| 705501506 | Differential Ass'y | ||
| 1 | 703500548 | Differential Shim Kit | 1 |
