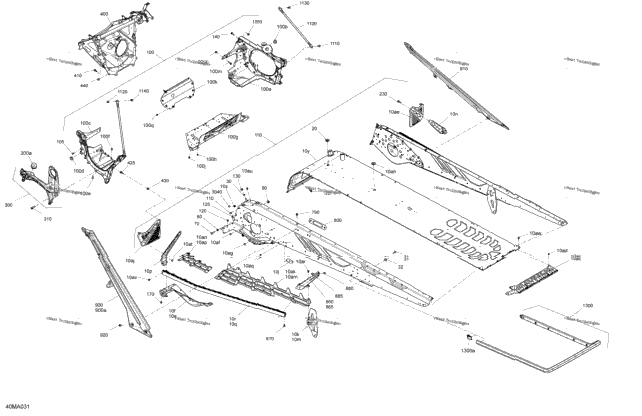

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 415130390 | Deep Black, Chassis Tunnel Module 154" Model Deep Black with 154" rear suspension | 1 |
| 415130399 | MODULE_CHASSIS TUNNEL 154 B-437 SHORT Model Labrador Blue with 154" rear suspension | ||
| 1 | 415130403 | Deep Black, Chassis Tunnel Module 165" Model Deep Black with 165" rear suspension | 1 |
| 1 | 415130404 | Dazzling Blue, Chassis Tunnel Module 165" Model Labrador Blue with 165" rear suspension | 1 |
| 1 | 518332576 | RH Footrest Reinforcement | 1 |
| 1 | 518332575 | LH Footrest Reinforcement | 1 |
| 2 | 518326647 | Reinforcement Plate | 2 |
| 1 | 518329053 | LH Suspension Bracket | 1 |
| 1 | 518329054 | RH Suspension Bracket | 1 |
| 1 | 518331253 | Stirrup Reinforcement | 1 |
| 1 | 518331560 | Deep Black, LH Chasssis Reinforcement | 1 |
| 1 | 518328737 | RH Roller | 1 |
| 1 | 518328738 | LH Roller | 1 |
| 1 | 518332554 | Radiator Tunnel 154 Model with 154" rear suspension | 1 |
| 1 | 518332555 | Radiator Tunnel 165 Model with 165" rear suspension | 1 |
| 3 | 250100199 | Insert Half Hex Body M6 x 1.0 | 3 |
| 1 | 518331704 | Rear Cap Ass'y | 1 |
| 5 | 293150203 | Rivet Avibulb 3/16 | 5 |
| 1 | 518328460 | RH Footrest | 1 |
| 3 | 293730047 | Black, Dart 8 mm | 3 |
| 2 | 293730060 | Black, Dart 10 mm | 2 |
| 1 | 293730052 | Black, Plug | 1 |
| 1 | 518331556 | LH Foot Protector | 1 |
| 1 | 518330960 | LH Rear Perforated Footstep | 1 |
| 1 | 518330962 | Footstep R Rh Perforated | 1 |
| 1 | 518330385 | LH Front Driver Footrest | 1 |
| 1 | 518330388 | RH Front Driver Footrest | 1 |
| 1 | 293150203 | Rivet Avibulb 3/16 | 1 |
| 2 | 293150183 | Rivet | 2 |
| 4 | 293150096 | Hemlock Rivet, 6.5 mm | 4 |
| 14 | 293150119 | Hemlock Rivet, 6.5 mm | 14 |
| 12 | 293150174 | Hemlock Rivet, 6.4 mm | 12 |
| 10 | 293150147 | Hemlock Rivet | 10 |
| 2 | 234081410 | Flat Washer 8 mm | 2 |
| 12 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip | 12 |
| 12 | 224061201 | Flat Washer | 12 |
| 2 | 250000942 | Hex Screw M8 X 30 | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 1 | 518332719 | Engine Chassis Module Ass'y Includes 100 to 100q | 1 |
| 1 | 518331257 | RH Member Ass'y | 1 |
| 1 | 505072690 | Leg Bushing | 1 |
| 1 | 518331254 | LH Member Ass'y | 1 |
| 3 | 293150148 | Rivet Magna-Grip 6,4 X 50,8 | 3 |
| 3 | 293150149 | Collar Huck Magna-Grip 6.4 | 3 |
| 1 | 518332716 | Bottom Plate | 1 |
| 14 | 293150203 | Rivet Avibulb 3/16 | 14 |
| 1 | 293450268 | Insert M5 X 0.8 | 1 |
| 1 | 518330100 | Front Member | 1 |
| 4 | 250000945 | Hex. Flange Screw M6 X 25 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 2 | 293150203 | Rivet Avibulb 3/16 | 2 |
| 2 | 293730079 | Dart | 2 |
| 3 | 293150147 | Hemlock Rivet | 3 |
| 2 | 293150174 | Hemlock Rivet, 6.4 mm | 2 |
| 2 | 293150120 | Hemlock Rivet 6.5 mm | 2 |
| 2 | 207662046 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 233261416 | Elastic Flange Nut M6 X 1.0 | 2 |
| 1 | 293450267 | Insert M5 - 0.8 | 1 |
| 4 | 207661646 | Hex. Flange Screw M6 X 16 | 4 |
| 1 | 207562056 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 518328693 | Brace Ass'y Includes 300 to 300a | 1 |
| 1 | 512060295 | Rubber Mount | 1 |
| 4 | 250001060 | Screw-Pan HD.Torx M8X30 | 4 |
| 1 | 518330573 | S Module | 1 |
| 2 | 250001051 | Screw-Forming Hex.HD.FL. M6 X 16 | 2 |
| 1 | 233261416 | Elastic Flange Nut M6 X 1.0 | 1 |
| 6 | 207661636 | Hex. Flange Screw M6 X 16 | 6 |
| 2 | 293450278 | Insert | 2 |
| 2 | 518329480 | Member Fixation Plate | 2 |
| 1 | 518329123 | Black - LH Roller Link Deep Black | 1 |
| 1 | 518332312 | Dazzling Blue, LH Rear Footrest Reinforc Dazzling Blue | 1 |
| 1 | 518329124 | Black, RH Roller Link Deep Black | 1 |
| 1 | 518332311 | Dazzling Blue, RH Rear Footrest Reinforc Dazzling Blue | 1 |
| 4 | 293150183 | Rivet | 4 |
| 2 | 293150148 | Rivet Magna-Grip 6,4 X 50,8 | 2 |
| 2 | 293150149 | Collar Huck Magna-Grip 6.4 | 2 |
| 1 | 518330060 | Black, LH Member Ass'y Model Deep Black | 1 |
| 1 | 518330137 | White, LH Rear Diag Cross Member Model Labrador Blue | 1 |
| 518330885 | RH Rear Diagonal Cross Member | ||
| 1 | 518330880 | Black, RH Member Ass'y Model Deep Black | 1 |
| 1 | 518331056 | White, RH Rear Diag Cross Member Model Labrador Blue | 1 |
| 4 | 250000887 | Pan Head Torx Screw M8 X 12 | 4 |
| 2 | 518329974 | Upper Colomn Support | 2 |
| 1 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 3 | 233261416 | Elastic Flange Nut M6 X 1.0 | 3 |
| 1 | 207662556 | Hex. Flange Screw M6 X 25 | 1 |
| 1 | 518331205 | Rear Short Bumper 154 Model with 154" rear suspension | 1 |
| 1 | 518331206 | Rear Short Bumper 165 Model with 165" rear suspension | 1 |
| 2 | 520001612 | Cap | 2 |
