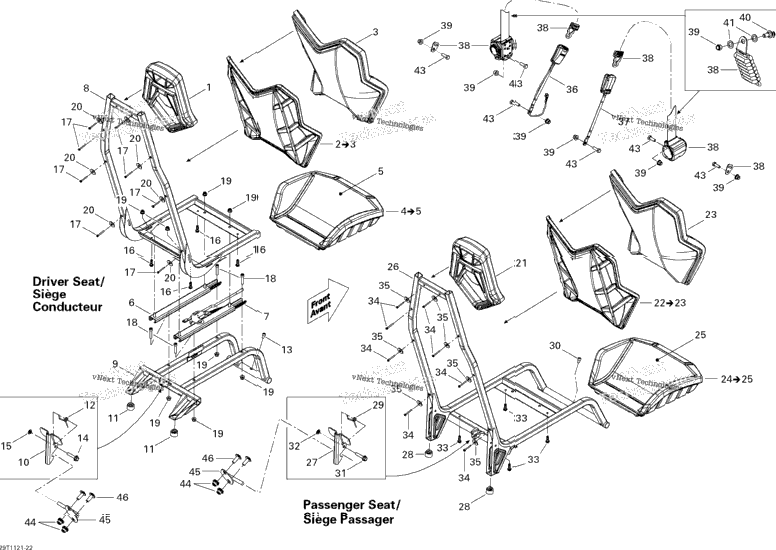

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 708000711 | HEAD REST | 1 |
| 1 | 708000669 | Backrest Ass'y Includes 2 to 3 | 1 |
| 708000864 | Backrest Ass'y X Includes 2 to 3, X Model | ||
| 1 | 708000675 | Backrest Cover | 1 |
| 708000865 | BACKREST COVER X Model | ||
| 1 | 708000671 | Cushion Ass'y Includes 4 to 5 | 1 |
| 708000867 | CUSHION ASS'Y X Includes 4 to 5, X model | ||
| 1 | 708000674 | Seat Cover | 1 |
| 1 | 708000868 | Seat Cover X Model | 1 |
| 1 | 708000848 | LH Rail | 1 |
| 1 | 708000846 | RH RAIL | 1 |
| 708000739 | Driver Seat Frame | ||
| 1 | 708000667 | Seat Member | 1 |
| 1 | 708000678 | Seat Latch | 1 |
| 2 | 708000899 | Rubber Bumper | 2 |
| 1 | 708000680 | Latch Spring Seat | 1 |
| 1 | 205501644 | Socket Screw M10 X 16 | 1 |
| 1 | 207663044 | Hex. Flange Screw M6 X 30 | 1 |
| 1 | 732610072 | Push Nut | 1 |
| 4 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 | 4 |
| 8 | 250000490 | HEX. WASHER HEAD SCREW PT K50 X 40 | 8 |
| 4 | 205084044 | Socket Head Screw M8 X 1.25 X 40 | 4 |
| 8 | 233281414 | Hex. Flange Elastic Nut M8 | 8 |
| 8 | 234062670 | Stainless Steel Flat Washer | 8 |
| 1 | 708000669 | Backrest Ass'y Includes 22 to 23 | 1 |
| 708000864 | Backrest Ass'y X Includes 22 to 23, X Model | ||
| 1 | 708000671 | Cushion Ass'y Includes 24 to 25 | 1 |
| 708000867 | CUSHION ASS'Y X Includes 24 to 25, X Model | ||
| 708000690 | Passenger Seat Frame | ||
| 1 | 708000843 | Driver Buckle Side | 1 |
| 1 | 708000856 | Driver Buckle Side Europe | 1 |
| 1 | 708000844 | Passenger Buckle Side | 1 |
| 1 | 708000857 | PASSENGER BUCKLE SIDE Europe | 1 |
| 2 | 708000845 | Safety Belt | 2 |
| 2 | 708000849 | Safety Belt, Europe Europe | 2 |
| 8 | 250100135 | Nylon Insert Hex. Lock Nut 7/16-20 | 8 |
| 8 | 250000521 | Hex. Cap Screw 7/16'' X 1'' Europe | 8 |
| 2 | 708000890 | Safety Belt Screw | 2 |
| 4 | 708000891 | Position Washer | 4 |
| 207123544 | HEX. SCREW M12 X 35 | ||
| 293450274 | Insert | ||
| 2 | 708000794 | Lock Stem | 2 |
| 4 | 250000223 | Torx Screw M6 X 16 | 4 |
