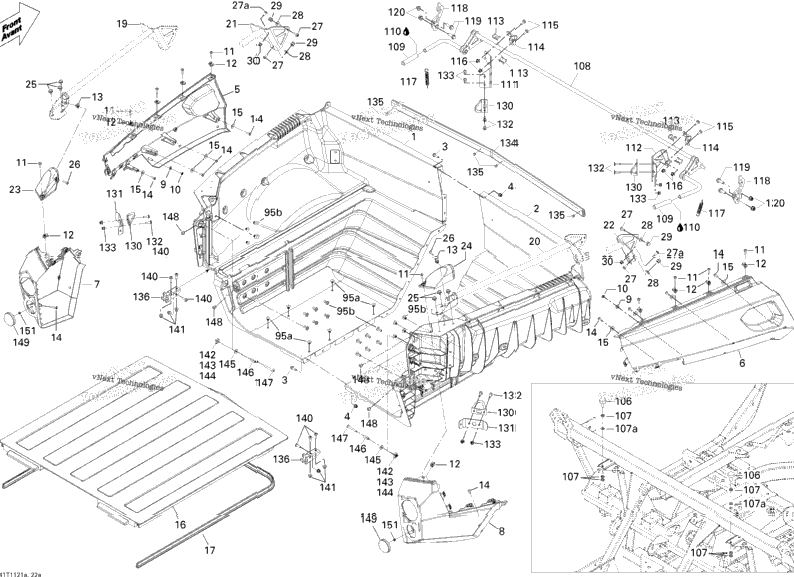

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 715001259 | LH Box Ass'y | 1 |
| 1 | 715001257 | RH Box Ass'y | 1 |
| 13 | 207662044 | Hex. Flange Screw M6 X 20 | 13 |
| 13 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 13 |
| 1 | 708300101 | LH Rear Fender, Yellow STD | 1 |
| 1 | 708300226 | LH REAR FENDER, RED XT Red | 1 |
| 1 | 708300101 | LH Rear Fender, Yellow XT Yellow | 1 |
| 708300437 | LH REAR FENDER, CAMO XT Camo | ||
| 1 | 708300439 | LH Rear Fender, Black X | 1 |
| 1 | 708300102 | RH Rear Fender, Yellow STD | 1 |
| 1 | 708300227 | RH Rear Fender, Red XT Red | 1 |
| 1 | 708300102 | RH Rear Fender, Yellow XT Yellow | 1 |
| 1 | 708300438 | RH Rear Fender, Camo XT Camo | 1 |
| 1 | 708300440 | RH Rear Fender, Black X | 1 |
| 1 | 708300103 | LH Rear Facia | 1 |
| 1 | 708300104 | RH Rear Facia | 1 |
| 2 | 234081100 | Flat Washer 8 mm, Nylon | 2 |
| 2 | 732610072 | Push Nut | 2 |
| 10 | 250000130 | Torx Screw M5 X 20 | 10 |
| 10 | 250000079 | Panel Nut M5 X 0.8 | 10 |
| 2 | 250000079 | Panel Nut M5 X 0.8 XT | 2 |
| 10 | 250000146 | Truss Head Torx Screw K50 X 16 | 10 |
| 8 | 234062670 | Stainless Steel Flat Washer | 8 |
| 1 | 708300131 | Separator Pannel Ass'y Includes 16 to 17 | 1 |
| 1 | 219704451 | Was 293250240 Neoprene Seal | 1 |
| 1 | 708300231 | LH Welded Rail XT | 1 |
| 1 | 708300232 | RH Welded Rail XT | 1 |
| 1 | 708300333 | LH Painted Rail Cap Except XT | 1 |
| 1 | 708300334 | RH Painted Rail Cap Except XT | 1 |
| 1 | 708300233 | LH RAIL COVER XT | 1 |
| 1 | 708300234 | RH RAIL COVER XT | 1 |
| 6 | 293150190 | Pop Rivet 3/16 XT | 6 |
| 2 | 250000130 | Torx Screw M5 X 20 XT | 2 |
| 4 | 250000129 | Torx Screw M6 X 16 | 4 |
| 2 | 250000128 | Torx Truss Screw M6 X 20 | 2 |
| 4 | 234062670 | Stainless Steel Flat Washer | 4 |
| 4 | 232361493 | Domed Nut M6 | 4 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 20 | 293150100 | Pop Rivet 3/16" | 20 |
| 12 | 293150104 | Pop Rivet 3/16" | 12 |
| 2 | 293720091 | Frame Rubber Bumper | 2 |
| 6 | 232180600 | Hex. Jam Nut M8 | 6 |
| 2 | 234181401 | Lock Washer 8 mm | 2 |
| 1 | 708300491 | LATCH LEVER ASS'Y | 1 |
| 2 | 708300358 | Cap Latch Lever | 2 |
| 1 | 293800100 | Loctite 406, 7 Oz | 1 |
| 1 | 708300278 | LH Latch Lever Support | 1 |
| 1 | 708300351 | RH Latch Lever Support | 1 |
| 4 | 705500033 | Half Ring | 4 |
| 2 | 708300392 | Clamp Reatiner | 2 |
| 4 | 207661644 | Hex. Flange Screw M6 X 16 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 2 | 708300454 | Spring | 2 |
| 2 | 708300136 | Box Retainer | 2 |
| 4 | 207583086 | Hex. Flange Screw M8 X 30, Scotch Grip | 4 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 | 4 |
| 4 | 708300183 | Retaining Plate | 4 |
| 2 | 708300206 | Retaining Plate Support | 2 |
| 8 | 250000284 | Torx Screw M6 x 25 | 8 |
| 8 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 8 |
| 1 | 708300346 | Front Support | 1 |
| 4 | 293150104 | Pop Rivet 3/16" | 4 |
| 2 | 708300345 | Upper Pivot Support | 2 |
| 6 | 250000128 | Torx Truss Screw M6 X 20 | 6 |
| 6 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 6 |
| 4 | 269500725 | M6 Nut Housing Ass'y Includes 142 to 144 | 4 |
| 1 | 269500252 | M6 Nut Housing Ass'y | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 4 | 517304852 | SPACER | 4 |
| 4 | 250000215 | Torx Screw M6 X 45 | 4 |
| 4 | 293830005 | Rubber Bumper | 4 |
| 4 | 705002408 | Red Reflector Except Europe | 4 |
| 4 | 232551414 | Elastic Stop Nut M5 Except Europe | 4 |
