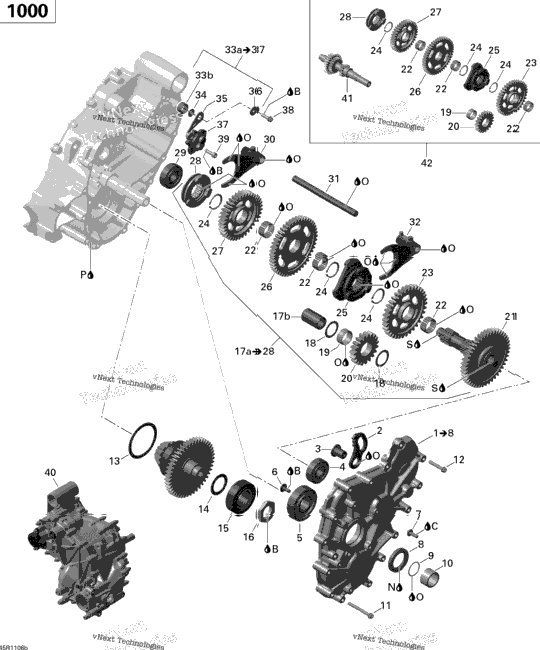

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - LH Gear Housing Ass'y Includes 1 to 8 | ||
| 1 | 420257658 | Parking Lock Lever | 1 |
| 1 | 420647120 | Collar Sleeve | 1 |
| 1 | 420932815 | Ball Bearing 6303E | 1 |
| 1 | 420932825 | Ball Bearing | 1 |
| 1 | 420241529 | Torx Screw M6 X 16 | 1 |
| 1 | 420441430 | Distance Screw M6 | 1 |
| 1 | 420950087 | Oil Seal | 1 |
| 1 | 420631610 | O-Ring | 1 |
| 420247117 | Distance Ring | ||
| 13 | 420440702 | Torx Flange Screw M6 X 55 | 13 |
| 3 | 420641258 | Torx Flange Screw M6 X 35 | 3 |
| XXXX | Not Available As Spare Part - Shim Set See Item 40, Gear Box | ||
| XXXX | Not Available As Spare Part - Roller Bearing See Item 40, Gear Box | ||
| XXXX | Not Available As Spare Part - Hex. Nut M24 X 1.5 See Item 40, Gear Box | ||
| XXXX | Not Available As Spare Part - Gear Set Includes 17a to 28 | ||
| XXXX | Not Available As Spare Part - Intermediate Gear Shaft | ||
| 2 | 420944479 | Thrust Washer | 2 |
| 1 | 420932930 | Needle Bearing | 1 |
| XXXX | Not Available As Spare Part - Intermediate Gear, 19 Teeth See Item 42, Gear Set | ||
| XXXX | Not Available As Spare Part - Main Shaft | ||
| 3 | 420632070 | Needle Bearing | 3 |
| XXXX | Not Available As Spare Part - Gear Pinion, 34 Teeth See Item 42, Gear Set | ||
| 3 | 420845771 | Retaining Ring | 3 |
| XXXX | Not Available As Spare Part - Shifting Sleeve See Item 42, Gear Set | ||
| XXXX | Not Available As Spare Part - Gear Pinion, 44 Teeth See Item 42, Gear Set | ||
| XXXX | Not Available As Spare Part - Gear Pinion, 36 Teeth See Item 42, Gear Set | ||
| 1 | 420257628 | Shift Fork | 1 |
| 1 | 420258386 | Fork Spindle | 1 |
| 1 | 420257618 | Shift Fork | 1 |
| XXXX | Not Available As Spare Part - Index Lever Ass'y Includes 33a to 37 | ||
| XXXX | Not Available As Spare Part - Index Spring | ||
| XXXX | Not Available As Spare Part - Step Ring | ||
| XXXX | Not Available As Spare Part - Index Lever | ||
| XXXX | Not Available As Spare Part - Washer | ||
| XXXX | Not Available As Spare Part - Index Washer | ||
| 1 | 420440202 | Torx Flange Screw M6 X 20 | 1 |
| 1 | 420241932 | Allen Screw M6 X 20 | 1 |
| 421000698 | GEAR BOX | ||
| 1 | 420620896 | Countershaft | 1 |
| 1 | 420281155 | Gear Set Includes 19, 20, 22, 23, 24, 25, 26, 27, 28, 41 | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 413711400 | Loctite 648, 10 ml | 1 |
| 1 | 293550030 | Grease, Super Lube | 1 |
| XXXX | Not Available As Spare Part - Engine Oil | ||
| 1 | 293800081 | Loctite 5910, 300 ml | 1 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML |
