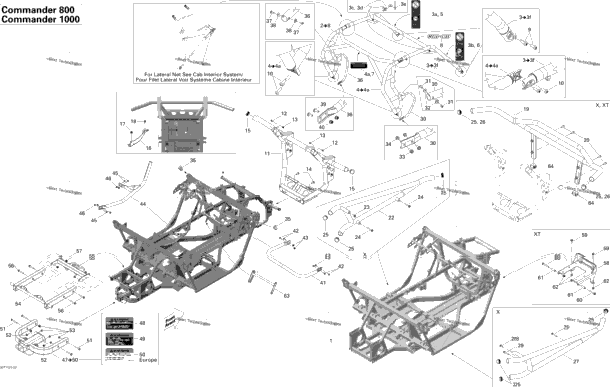

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 715001325 | Frame Ass'y, Black | 1 |
| 1 | 705203579 | Black Cage Kit, Front And Rear Section Includes 2 to 8 | 1 |
| 715001295 | Front Cage Includes 3 to 3f | ||
| 1 | 704902413 | WARNING LABEL | 1 |
| 1 | 704902415 | WARNING LABEL | 1 |
| 1 | 705004985 | LH CAGE CAP MOULDING | 1 |
| 1 | 705004986 | RH CAGE CAP MOULDING | 1 |
| 6 | 293150108 | Pop Rivet 3/16” | 6 |
| 6 | 250200121 | Flat Washer | 6 |
| 1 | 705202596 | Rear Cage Includes 4 to 4a | 1 |
| 1 | 704902424 | WARNING LABEL | 1 |
| 1 | 704902319 | Cage Decal X | 1 |
| 4 | 250000438 | Torx Truss Screw M10 X 30 | 4 |
| 8 | 250000438 | Torx Truss Screw M10 X 30 | 8 |
| 1 | 705202614 | Front Bumper | 1 |
| 2 | 207661644 | Hex. Flange Screw M6 X 16 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 2 |
| 2 | 705202455 | Cap | 2 |
| 1 | 705201721 | Front Differential Support | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 207581644 | Hex. Flange Screw M8 X 16, Scotch Grip | 1 |
| 1 | 715000958 | Black Front Bumper XT, X | 1 |
| 250000197 | Torx Truss Screw M8 X 30 XT, X | ||
| 1 | 705201962 | LH Rocker Panel Lower Guard X | 1 |
| 1 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip X | 1 |
| 2 | 207585044 | Hex. Flange Screw M8 X 50 X | 2 |
| 8 | 705202455 | Cap X | 8 |
| 2 | 705202455 | Cap XT | 2 |
| 1 | 705201975 | RH Rocker Panel Lower Guard X | 1 |
| 1 | 705202612 | RH Side Protecting Tube | 1 |
| 2 | 250000439 | Torx Truss Screw M6 X 14 | 2 |
| 2 | 705202223 | Offset Washer | 2 |
| 2 | 207682044 | Hex. Flange Screw M8 X 20 | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 2 | 705202129 | Binding Plate | 2 |
| 1 | 705202609 | LH Side Protecting Tube | 1 |
| 1 | 705202494 | Passenger Handle | 1 |
| 4 | 207662044 | Hex. Flange Screw M6 X 20 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 705202161 | Console Handle | ||
| 1 | 715001251 | TRAILER HITCH ASS'Y Includes 47 to 50 | 1 |
| 1 | 704902336 | Warning Decal, Towing | 1 |
| 1 | 704902345 | Warning Decal, Trailer | 1 |
| 1 | 704902436 | WARNING DECAL, TOWING Europe | 1 |
| 4 | 207685044 | Hex. Flange Screw M8 X 50 | 4 |
| 6 | 233281414 | Hex. Flange Elastic Nut M8 | 6 |
| 1 | 705202165 | Box holder | 1 |
| 1 | 705202166 | Differential Support | 1 |
| 4 | 207685544 | Hex. Flange Screw M8 X 55 | 4 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 | 4 |
| 1 | 715000704 | Winch Plate XT | 1 |
| 2 | 207682544 | Hex. Flange Screw M8 X 25 XT | 2 |
| 2 | 207686044 | Hex. Flange Screw M8 x 60 XT | 2 |
| 2 | 705202499 | Bushing XT | 2 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 XT | 4 |
| 1 | 705202463 | Panel Reinforcement | 1 |
| 2 | 705202631 | Tube Cap Europe | 2 |
