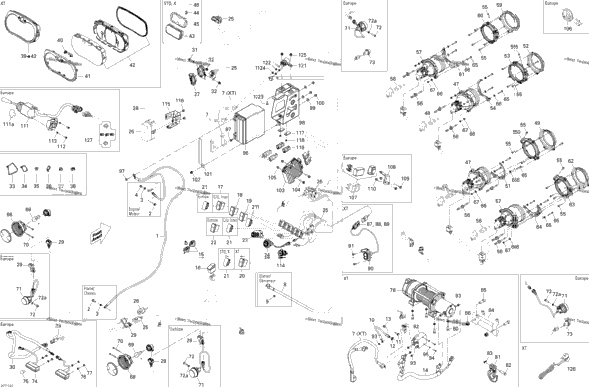

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 710002147 | GROUND CABLE | 1 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 250200041 | Lock Washer Serrated M6 | 1 |
| 1 | 233061414 | Hex. Flange Nut M6 | 1 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 1 | 710002148 | POSITIVE CABLE STD, X | 1 |
| 1 | 710002159 | Positive Cable XT | 1 |
| 1 | 710002146 | Positive Cable | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 1 | 710002214 | NEGATIVE CABLE XT | 1 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 XT | 1 |
| 1 | 250200041 | Lock Washer Serrated M6 XT | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 XT | 1 |
| 1 | 710002216 | Electrical Winch Cable XT | 1 |
| 1 | 710000817 | Black, Electronic Key | 1 |
| 1 | 710002183 | Grey, Electronic Key | 1 |
| 1 | 710000817 | Black, Electronic Key Europe | 1 |
| 1 | 710002053 | Switch, Over ride | 1 |
| 1 | 410301203 | Battery Ass'y, 18 Amperes | 1 |
| 1 | 710001725 | Hi/Low Switch Except Europe | 1 |
| 1 | 710001737 | 4X4 Switch | 1 |
| 1 | 710002199 | PPS Sport Switch | 1 |
| 1 | 710002052 | Switch Winch XT | 1 |
| 3 | 710001999 | Plug Carling STD | 3 |
| 2 | 710001999 | Plug Carling Europe | 2 |
| 2 | 710001999 | Plug Carling XT | 2 |
| 3 | 710001999 | Plug Carling X | 3 |
| 1 | 710002076 | Switch Hazard Europe | 1 |
| 1 | 710002327 | Ignition Switch | 1 |
| 1 | 710002594 | Engine Start Button | 1 |
| 1 | 710001779 | Main Harness Ass'y Except Europe | 1 |
| 710002165 | Main Harness Ass'y Europe | ||
| 1 | 710001996 | Housing | 1 |
| 710002218 | Decal | ||
| 1 | 710001644 | Rear Harness Except Europe | 1 |
| 1 | 710002164 | Rear Harness Europe | 1 |
| 710002220 | Tail Gate Harness Ass'y Europe | ||
| 1 | 207663044 | Hex. Flange Screw M6 X 30 | 1 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 414115200 | Tie-Rap 180 mm Europe | 1 |
| 1 | 293730018 | Mount Dart | 1 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 414227300 | Clip Europe | 1 |
| 1 | 293750009 | Tie-Rap 173 mm | 1 |
| 1 | 710002533 | Calibrated Speedometer X, XT | 1 |
| 1 | 415129355 | Speedometer Button X, XT | 1 |
| 1 | 415129348 | Gauge Ring X, XT | 1 |
| 1 | 415129349 | Lens X, XT | 1 |
| 1 | 710002535 | Speedometer STD | 1 |
| 1 | 710001473 | Button STD | 1 |
| 1 | 710001183 | Trim Ring Ass'y STD | 1 |
| 1 | 704901270 | BRP Logo 13 mm STD | 1 |
| 2 | 710001325 | Low Beam | 2 |
| 1 | 415129249 | Halogen Bulb | 1 |
| 1 | 710001081 | RH Low Front Housing | 1 |
| 1 | 710001082 | RH Low Rear Housing | 1 |
| 1 | 710001094 | RH Low Light Support | 1 |
| 1 | 710001083 | LH Low Front Housing | 1 |
| 1 | 710001084 | LH Low Rear Housing | 1 |
| 1 | 710001037 | LH Low Light Support | 1 |
| 22 | 250000084 | Phillips Screw K40 X 16 | 22 |
| 8 | 710001147 | Setting Screw | 8 |
| 2 | 710001326 | High Beam | 2 |
| 1 | 710001085 | RH High Front Housing | 1 |
| 1 | 710001086 | RH High Rear Housing | 1 |
| 1 | 710001115 | RH High Light Support | 1 |
| 1 | 710001087 | LH High Front Housing | 1 |
| 1 | 710001088 | LH High Rear Housing | 1 |
| 1 | 710001036 | LH High Light Support | 1 |
| 12 | 207142544 | Hex. Screw M4 X 25 | 12 |
| 24 | 234051410 | Flat Washer M5 | 24 |
| 12 | 232541414 | Elastic Stop Nut M4 | 12 |
| 2 | 710001645 | Tail Light Ass'y | 2 |
| 1 | 520000758 | Bulb | 1 |
| 4 | 241154540 | Hex. Screw K50 X 45 | 4 |
| 4 | 710002047 | Flasher Europe | 4 |
| 4 | 234061410 | Flat Washer 6 mm Europe | 4 |
| 4 | 250000284 | Torx Screw M6 x 25 Europe | 4 |
| 2 | 710001726 | Day Light Europe | 2 |
| 2 | 710002055 | License Light Europe | 2 |
| 1 | 219800128 | Bulb Europe | 1 |
| 4 | 234161601 | Lock Washer Helical M6 Europe | 4 |
| 4 | 232061600 | Hex. Nut M6 Europe | 4 |
| 705003944 | WINCH XT | ||
| 4 | 205082044 | Socket Head Screw M8 X 20 XT | 4 |
| 4 | 234181401 | Lock Washer 8 mm XT | 4 |
| 1 | 705002329 | Hook XT | 1 |
| 1 | 250400021 | Clevis Pin XT | 1 |
| 1 | 250400022 | Cotter Pin XT | 1 |
| 705004228 | FAIRLEAD_ROLLER XT | ||
| XXXX | Not Available As Spare Part - Socket Screw DIN.912 XT | ||
| 2 | 233201414 | Hex. Flange Elastic Nut M10 XT | 2 |
| 1 | 710001059 | Connector Ass'y XT | 1 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 1 | 710000992 | Clip | 1 |
| 1 | 710001023 | Winch Connector XT | 1 |
| 2 | 250000146 | Truss Head Torx Screw K50 X 16 XT | 2 |
| 1 | 710002112 | Solenoid XT | 1 |
| 6 | 232561434 | Elastic Stop Nut M6 XT | 6 |
| 207141044 | HEX. SCREW M4 X 10 XT | ||
| 2 | 234141601 | Lock Washer 4 mm XT | 2 |
| 1 | 295500849 | Battery Fastener Kit | 1 |
| 1 | 710001911 | Battery Support | 1 |
| 3 | 234062410 | Flat Washer 6 mm | 3 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 3 |
| 1 | 710001916 | Battery Holder | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 710001191 | Voltage Regulator | 1 |
| 2 | 207663044 | Hex. Flange Screw M6 X 30 | 2 |
| 1 | 710000983 | Horn Europe | 1 |
| 1 | 710002393 | Flasher Unit Europe | 1 |
| 1 | 710002408 | SUPPORT Europe | 1 |
| 2 | 207661644 | Hex. Flange Screw M6 X 16 Europe | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 Europe | 2 |
| 1 | 710001721 | Turn Signal Europe | 1 |
| 1 | 704902614 | Flasher Decal Europe | 1 |
| 2 | 210251680 | Hex. Forming Screw M5 X 16 Europe | 2 |
| 2 | 234151401 | Lock Washer 5 mm Europe | 2 |
| 1 | 710001248 | DC Outlet | 1 |
| 1 | 710001918 | Fuse Holder | 1 |
| 2 | 293150103 | Pop Rivet 3/16" | 2 |
| 2 | 270000141 | Clip | 2 |
| 2 | 390402400 | Pop Rivet 3/16" | 2 |
| 2 | 278002148 | Diagnostic Connector Cap | 2 |
| 1 | 710001364 | Starter Relay | 1 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 1 | 250000223 | Torx Screw M6 X 16 | 1 |
| 2 | 232061600 | Hex. Nut M6 | 2 |
| 710001002 | REMOTE CONTROL XT |
