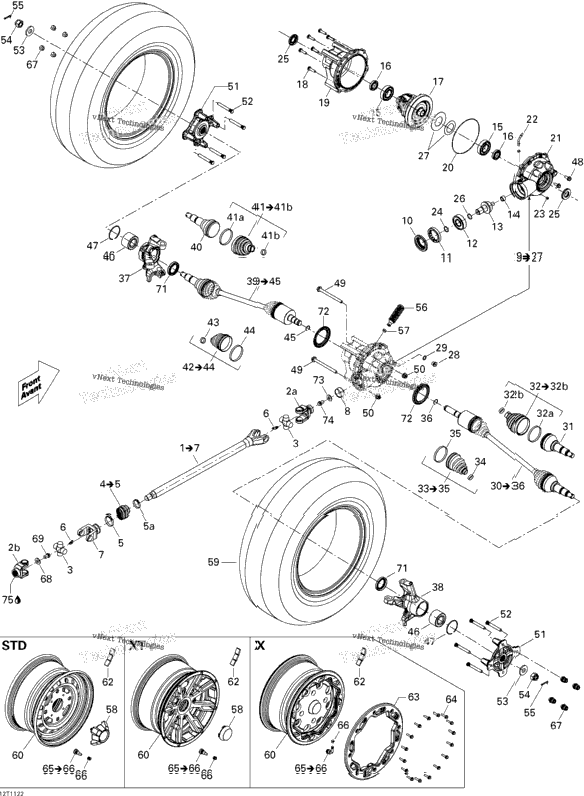

Каталог / Side x Side / Can-Am / 2011 / Commander 1000 / Drive System, Front

Список запчастей

№	Артикул	Название	Кол-во
1	705400637	Drive Axle Ass'y Includes 1 to 7	1
1	705500348	Fix Joint	1
	705400782	FIX JOINT
2	703000024	Unit Pack Kit	2
	703500255	Rubber Boot Kit Includes 4 to 5
1	293650138	Oetiker Gear Clamp 44.0MM	1
	705400148	Collar
	715900067	GREASE FITTING
	705500762	Slip Joint
1	705400036	Wear Ring	1
1	705401048	Differential Ass'y Includes 9 to 29	1
1	705400027	Oil Seal	1
1	705400661	Nut	1
1	705500260	Ball Bearing	1
	705501051	10 TEETH PINION
1	705501408	Needle Bearing	1
2	705500259	Ball Bearing	2
2	293350044	Ball Bearing	2
1	705400645	Differential	1
6	705500892	SCREW	6
1	705400297	Front Cover	1
1	705500265	Seal	1
	705401049	FRONT COVER
1	705500893	VENT VALVE	1
2	705500894	Drain Plug	2
1	705500267	O-Ring	1
2	705500255	Oil Seal	2
1	703500049	Pinion Shim Kit	1
	705500075	Pinion Gear Shim .022"
1	705501162	Pinion Gear Shim	1
	705501163	Pinion Gear Shim 2.12mm
1	703500288	Differential Shim Spool Kit	1
1	703500050	Differential Shim Spool Kit	1
1	705500504	Fill Level Plug	1
1	705500506	Copper Washer	1
1	705400952	RH CV Joint Ass'y Includes 30 to 36	1
	705501238	CV Joint
1	705500907	Wheel Boot Kit Includes 32 to 32b	1
1	715900139	OETIKER CLAMP 71,1MM	1
1	293650192	OETIKER CLAMP 23MM	1
1	705400512	Differential Boot Kit Includes 33 à 35	1
1	293650193	OETIKER CLAMP 67MM	1
1	705400042	CIRCLIP	1
	705401008	LH KNUCKLE
	705401009	RH KNUCKLE
1	705400953	LH CV Joint Ass'y Includes 39 to 45	1
1	705500907	Wheel Boot Kit Includes 41 to 41b	1
1	705400512	Differential Boot Kit Includes 42 to 44	1
2	293350040	Cone Bearing	2
2	293370019	Circlip	2
2	207582044	Hex. Flange Screw M8 X 20, Scotch Grip	2
2	230602546	Hex. Flange Screw M10 X 125	2
2	233201416	Hex. Flange Elastic Nut M10	2
2	705400713	Wheel Hub	2
8	705400791	Wheel Stud	8
2	250200049	Spring Washer	2
1	250100047	Hex. Castellated Nut M18	1
2	250400036	Cotter Pin	2
1	705400352	Rubber Bellow	1
1	293650042	Oetiker Clamp	1
2	705400504	WHEEL CAP XT CAMO	2
	705400520	WHEEL CAP XT Except CAMO
2	705400921	Wheel Cap STD	2
2	705400631	Front Tire XT International Except CAMO	2
2	705400631	Front Tire XT North America Except CAMO	2
	705400781	TIRE_27X9R12 F STD
2	705400846	Front Tire X	2
2	705400631	Front Tire XT CAMO	2
2	705400961	Front Tire XT Europe	2
2	705400632	Silver Front Rim XT International Except CAMO	2
2	705400632	Silver Front Rim XT North America Except CAMO	2
2	705400910	RIM_12 INCH X 6 STD	2
2	705400945	Front Rim X	2
2	705400919	Black Front Rim XT CAMO	2
2	705400632	Silver Front Rim XT Europe	2
1	219704465	1/2 OZ Weight	1
1	705400841	Reinforcement Disk X	1
16	207662584	Hex. Flange Screw M6 X 25 X	16
2	705400193	Rim Valve With Cap Except X	2
2	705400872	VALVE_TIRE WITH CAP FORMED X	2
2	293000110	Valve Cap Except X	2
	293000111	VALVE CAP X
8	250100042	Steel Wheel Nut STD	8
8	250100082	Chrome Wheel Nut M10 X 1.25 XT Except CAMO	8
8	250100100	Black Wheel Nut M10 X 1.25 X	8
8	250100100	Black Wheel Nut M10 X 1.25 XT CAMO	8
1	250200102	Flat Washer M12	1
1	250000359	Hex Flange Screw M12 x 16	1
1	293800005	Loctite 271, 10 ml	1
2	293250246	O-Ring	2
2	705400780	Wear Sleeve	2
	250000378	HEX FLANGED SCREW M12 X 16, SCOTCH GRIP
	293550010	Synthetic Grease, 400 G
